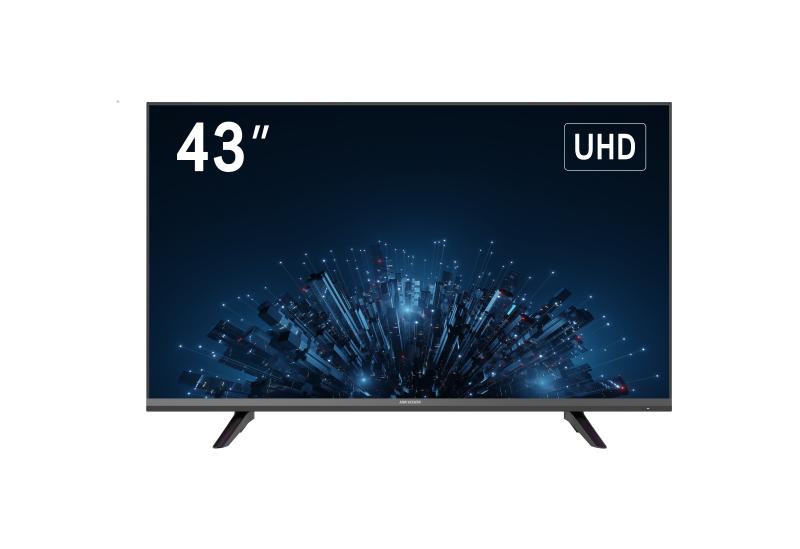

Hikvision DS-D5243U3-1V0D 43 inch Ultra HD Monitor, 3840 × 2160 @60 Hz, Built-in Video Decoding
Free Delivery
Save £183.38
About this product
The Hikvision DS-D5243U3-1V0D is a 43 inch Ultra HD monitor (3840 × 2160 @60 Hz) with built-in video decoding of up to Max 36CH (36-channel at D1 and lower resolution), for IP camera streams over ONVIF and RTSP.
Key features
- 43 inch D-LED screen, 3840 × 2160 @60 Hz
- Video decoding channel: Max 36CH (36-channel at D1 and lower resolution @ 30 fps)
- Decoding resolution Max. 32 MP; 1-screen layout support max. 32MP
- Supports ONVIF, RTSP camera protocol
- Screen split quantity 1/4/6/8/9/16/25/36
- HDMI 2.0 ×1 input, USB2.0 ×2, 1000M LAN × 1
- Rated for 7 * 24H operation
Frequently asked questions
Can the DS-D5243U3-1V0D decode camera streams itself?
Yes. It supports ONVIF and RTSP camera protocols, with a video decoding channel of Max 36CH (36-channel at D1 and lower resolution @ 30 fps) and decoding resolution up to Max. 32 MP (1-channel 32 MP/24 MP).
How many 4 MP or 8 MP cameras can it decode at once?
In H.264/H.265 it supports decoding 4-channel 8 MP or 9-channel 4 MP @ 30 fps in real time.
What is in the box?
Monitor × 1, base component × 1, power cable × 1, HDMI cable (1.5 m) × 1, user manual × 1, multilingual manual × 1, remote control × 1 and screw × 6.
What VESA pattern does it use?
The VESA pattern is 7.87 inch × 7.87 inch; the base is included by default.
How much power does it use?
Power consumption is ≤80W and standby consumption is ≤ 0.5 W, from a 100-240 V～, 50/60 Hz, 1.0 A Max supply.
Can it run continuously?
It is rated for 7 * 24H reliability.
Technical Details
Specifications
Brand
Hikvision
Model
DS-D5243U3-1V0D
Manufacturer Part Number (MPN)
DS-D5243U3-1V0D
Video Decoding Format
H.264, H.265, Smart264, Smart265, MJPEG
Decoding Resolution
Max. 32 MP
Video Decoding Channel
Max 36CH
Video Decoding Capability (H.264/H.265)
1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, 36-channel D1 and lower resolution @ 30 fps in real time
Encrypted Stream Decoding Channel
Max 16CH
Screen Split Quantity
1/4/6/8/9/16/25/36
Scene Quantity
4
Audio Decoding
Supported
Camera Protocol
ONVIF, RTSP
Screen Size
43 inch
Active Display Area
941.184 (H) mm × 529.416 (V) mm
Resolution
3840 × 2160 @60 Hz
Backlight
D-LED
Pixel Pitch
0.2451 (H) mm × 0.2451 (V) mm
Brightness
300 cd/㎡
Viewing Angle
178° / 178°
Colour Depth
8 bit+FRC
Contrast Ratio
4000 : 1
Response Time
6.5 ms (typ)
Refresh Rate
60 Hz
Haze
Haze 25%, 3H
Colour Gamut
72% NTSC
Reliability
7 * 24H
Video & Audio Input
HDMI 2.0 ×1
Video & Audio Output
Speaker Out × 2 (8Ω 10W), Line-out 3.5mm × 1
Data Transmission Interface
USB2.0 ×2, 1000M LAN × 1, RELAY IN × 1, RELAY OUT × 2
Control Interface
CONSOLE × 1, RS485 × 1
Power Supply
100-240 V～, 50/60 Hz, 1.0 A Max
Power Consumption
≤80W
Standby Consumption
≤ 0.5 W
Working Temperature
0 °C to 50 °C
Working Humidity
10% ~ 90% RH (Non-Condensing)
Speaker
8 Ω 10 W ×2
Casing Material
Plastic
VESA
7.87 inch × 7.87 inch
Bezel Width
0.04 inch (top/left/right), 0.94 inch (bottom)
Product Dimensions (without base)
956.7 (W) mm × 561.65 (H) mm × 76.06 (D) mm
Product Dimensions (with base)
956.7 (W) mm × 616.21 (H) mm × 242.11 (D) mm
Net Weight
6.88 ± 0.5 kg (15.93 ± 1.1 lb.)
Packing List
Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-D5243U3-1V0D |
| Manufacturer Part Number (MPN) | DS-D5243U3-1V0D |
| Video Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
| Decoding Resolution | Max. 32 MP |
| Video Decoding Channel | Max 36CH |
| Video Decoding Capability (H.264/H.265) | 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, 36-channel D1 and lower resolution @ 30 fps in real time |
| Encrypted Stream Decoding Channel | Max 16CH |
| Screen Split Quantity | 1/4/6/8/9/16/25/36 |
| Scene Quantity | 4 |
| Audio Decoding | Supported |
| Camera Protocol | ONVIF, RTSP |
| Screen Size | 43 inch |
| Active Display Area | 941.184 (H) mm × 529.416 (V) mm |
| Resolution | 3840 × 2160 @60 Hz |
| Backlight | D-LED |
| Pixel Pitch | 0.2451 (H) mm × 0.2451 (V) mm |
| Brightness | 300 cd/㎡ |
| Viewing Angle | 178° / 178° |
| Colour Depth | 8 bit+FRC |
| Contrast Ratio | 4000 : 1 |
| Response Time | 6.5 ms (typ) |
| Refresh Rate | 60 Hz |
| Haze | Haze 25%, 3H |
| Colour Gamut | 72% NTSC |
| Reliability | 7 * 24H |
| Video & Audio Input | HDMI 2.0 ×1 |
| Video & Audio Output | Speaker Out × 2 (8Ω 10W), Line-out 3.5mm × 1 |
| Data Transmission Interface | USB2.0 ×2, 1000M LAN × 1, RELAY IN × 1, RELAY OUT × 2 |
| Control Interface | CONSOLE × 1, RS485 × 1 |
| Power Supply | 100-240 V～, 50/60 Hz, 1.0 A Max |
| Power Consumption | ≤80W |
| Standby Consumption | ≤ 0.5 W |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 10% ~ 90% RH (Non-Condensing) |
| Speaker | 8 Ω 10 W ×2 |
| Casing Material | Plastic |
| VESA | 7.87 inch × 7.87 inch |
| Bezel Width | 0.04 inch (top/left/right), 0.94 inch (bottom) |
| Product Dimensions (without base) | 956.7 (W) mm × 561.65 (H) mm × 76.06 (D) mm |
| Product Dimensions (with base) | 956.7 (W) mm × 616.21 (H) mm × 242.11 (D) mm |
| Net Weight | 6.88 ± 0.5 kg (15.93 ± 1.1 lb.) |
| Packing List | Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6 |
