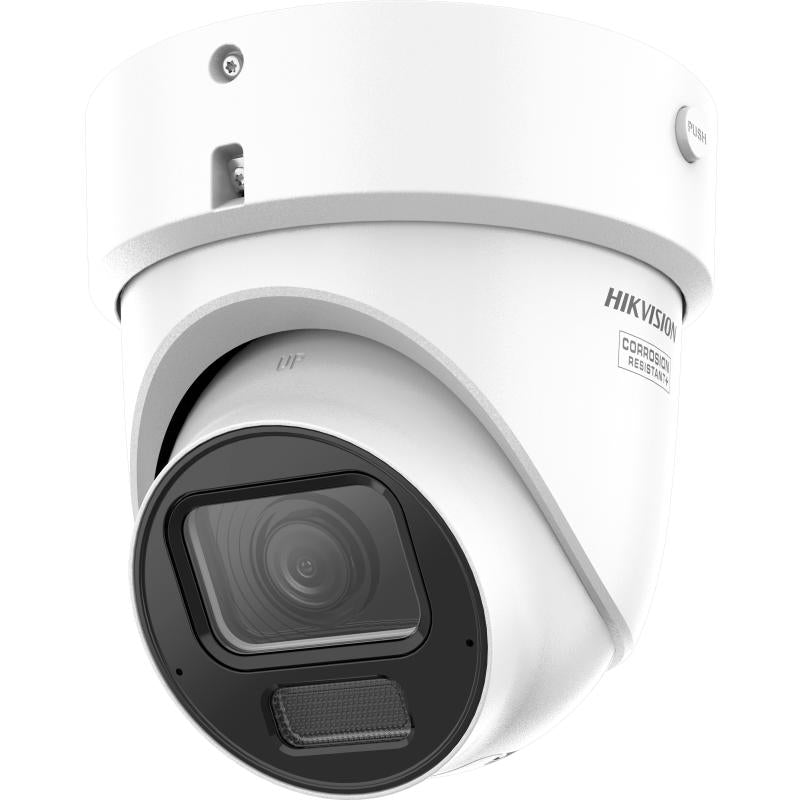

Hikvision DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) 4K Acusense Motorized Varifocal Turret Network Camera, 2.8-12mm, Up to 40m IR
About this product
The Hikvision DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) is a 4K Acusense motorized varifocal turret network camera with a 2.8 to 12 mm motorized lens, a maximum resolution of 3840 × 2160 and IR up to 40 m, for IP CCTV systems. It focuses on person and vehicle classification based on deep learning, and is water and dust resistant (IP67) and vandal resistant (IK10).
Key features
- Maximum resolution 3840 × 2160 on a 1/1.8" Progressive Scan CMOS
- Motorized varifocal lens, 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°
- IR supplement light up to 40 m, 850 nm, with smart supplement light
- Perimeter protection (line crossing, intrusion, region entrance, region exiting) with alarm triggering by human and vehicle target types
- 120 dB WDR
- Built-in memory card slot, microSD/microSDHC/microSDXC up to 512 GB
- PoE (IEEE 802.3af, Class 3, max. 12.95 W) or 12 VDC ± 25%, max. 10.8 W
- IP67 and IK10, with anti-corrosion design (NEMA 4X)
Frequently asked questions
Can the DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) be powered by PoE?
Yes. It takes PoE to IEEE 802.3af, Class 3, max. 12.95 W, or 12 VDC ± 25%, 0.9 A, max. 10.8 W.
How far does the night vision reach?
The IR supplement light reaches up to 40 m, at an IR wavelength of 850 nm, with smart supplement light.
What lens does the camera have?
It has a motorized varifocal lens of 2.8 to 12 mm, giving a horizontal FOV of 112.3° to 41.2°, for easy installation and monitoring.
Does it support local storage?
Yes. It has a built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 512 GB, and also supports NAS (NFS, SMB/CIFS).
Is it suitable for outdoor mounting?
It is water and dust resistant (IP67), vandal resistant (IK10) and has an anti-corrosion design (NEMA 4X). Startup and operating conditions are -30 °C to 60 °C, humidity 95% or less (non-condensing).
What smart detection does it support?
Perimeter protection covers line crossing, intrusion, region entrance and region exiting, with alarm triggering by specified target types (human and vehicle). Face capture is also supported.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) |
| Manufacturer Part Number (MPN) | DS-2CD2H86G2H-IZSY(2.8-12mm)(eF) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° |
| Aperture | Max. F1.2 |
| DORI | Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m; Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Main Stream (50 Hz) | 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Audio | 1 input (line in), 1 output (line out), two-core terminal block |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting (alarm triggering by human and vehicle target types) |
| Face Capture | Yes |
| Smart Event | Scene change detection |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Power | 12 VDC ± 25%, 0.9 A, max. 10.8 W; PoE: IEEE 802.3af, Class 3, max. 12.95 W |
| Material | Base: Metal, cover: Metal |
| Dimension | Ø143.5 mm × 142.7 mm (Ø5.7" × 5.6") |
| Weight | Approx. 1230 g (2.7 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
