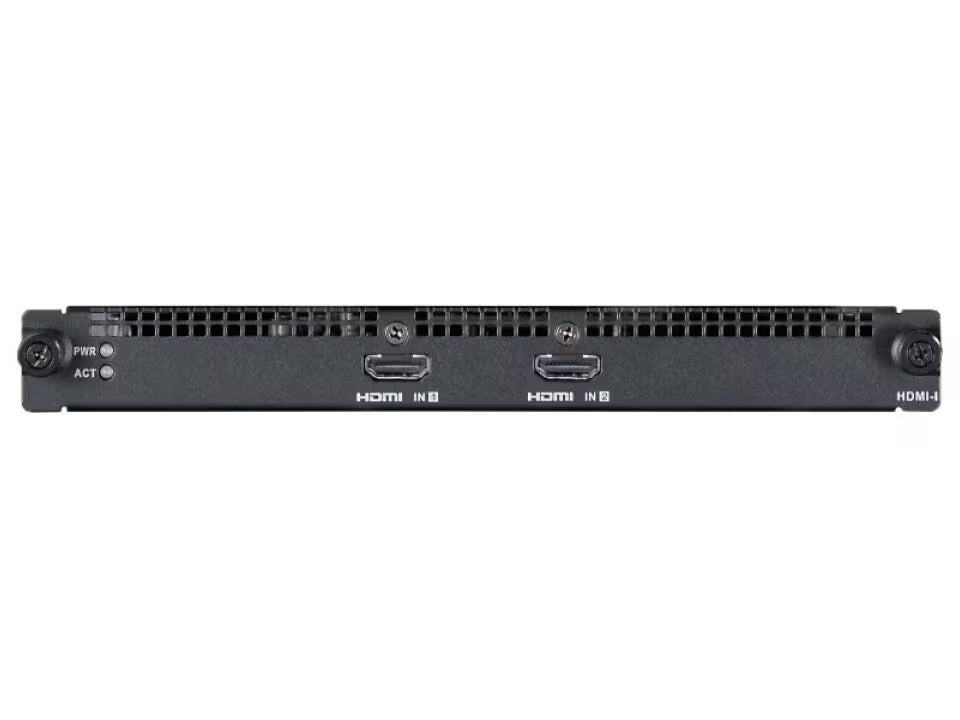

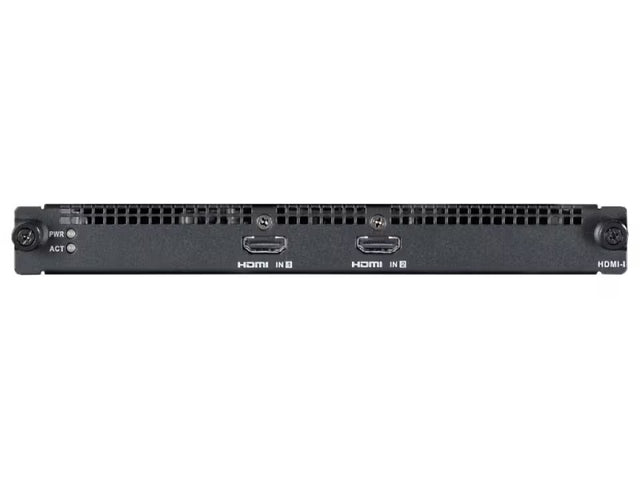

Hikvision DS-C30S-02HI/4K 4K HDMI 2-Channel Input Board, 2 x HDMI 2.0, 4K Input
Free Delivery
Save £368.88
About this product
The Hikvision DS-C30S-02HI/4K is a 4K HDMI 2-channel input board for a Hikvision video wall controller, the core control device of a screen splicing control system. It occupies an input slot and supports 2 channels of 4K HDMI signal input with composite audio input.
Key features
- 2 channels of 4K HDMI signal input
- HDMI 2.0 video input interfaces
- Max. video input resolution 4K
- Composite audio input over HDMI, dual channel
- Custom resolution support
- Occupies an input slot
Frequently asked questions
How many HDMI inputs does the Hikvision DS-C30S-02HI/4K have?
It supports 2 channels of 4K HDMI signal input, on HDMI 2.0 interfaces.
Does the DS-C30S-02HI/4K carry audio?
Yes. It supports composite audio input: 2 HDMI composite audio inputs, dual channel, at a 48K sampling rate.
Does the DS-C30S-02HI/4K support custom resolutions?
Yes. Width ranges from 800 to 8192 and height from 600 to 8192; width must be a multiple of 4, height a multiple of 2, and the frame rate is 30 Hz or 60 Hz.
Technical Details
Specifications
Brand
Hikvision
Model
DS-C30S-02HI/4K
Manufacturer Part Number (MPN)
DS-C30S-02HI/4K
Occupied slot
Input slot
Video input interface type
HDMI 2.0
Video input interfaces
2
Max. video input resolution
4K
Video input resolution
1920 × 1080P@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz, 3840 × 2160@60 Hz, 4096 × 2160@30 Hz, 4096 × 2160@60 Hz
Custom resolution
Width ranges from 800 to 8192, height ranges from 600 to 8192. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz.
Audio input interfaces
2
Audio input interface type
HDMI composite audio
Audio sampling rate
48K sampling rate
Audio channel
Dual channel
Optional accessory
DS-C30S-S11, DS-C30S-S23, DS-C30S-02DPI/4K
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-C30S-02HI/4K |
| Manufacturer Part Number (MPN) | DS-C30S-02HI/4K |
| Occupied slot | Input slot |
| Video input interface type | HDMI 2.0 |
| Video input interfaces | 2 |
| Max. video input resolution | 4K |
| Video input resolution | 1920 × 1080P@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz, 3840 × 2160@60 Hz, 4096 × 2160@30 Hz, 4096 × 2160@60 Hz |
| Custom resolution | Width ranges from 800 to 8192, height ranges from 600 to 8192. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. |
| Audio input interfaces | 2 |
| Audio input interface type | HDMI composite audio |
| Audio sampling rate | 48K sampling rate |
| Audio channel | Dual channel |
| Optional accessory | DS-C30S-S11, DS-C30S-S23, DS-C30S-02DPI/4K |
