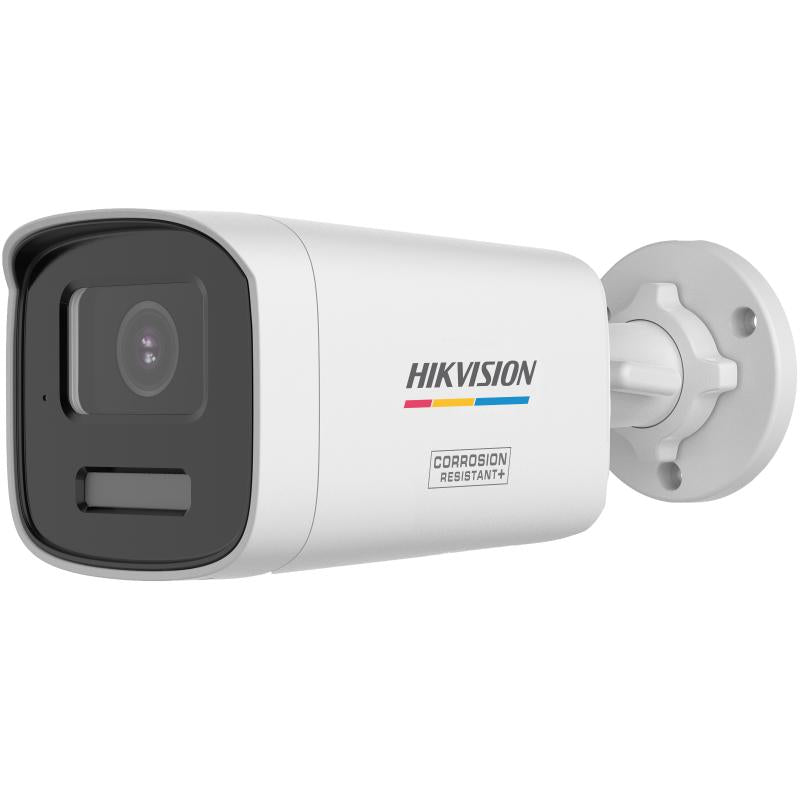

Hikvision DS-2CE12UF3T-LSYE(2.8mm) 4K Smart Hybrid Light ColorVu Bullet Camera, 2.8 mm Lens, Up to 40 m IR
About this product
The Hikvision DS-2CE12UF3T-LSYE(2.8mm) is a 4K Smart Hybrid Light ColorVu Fixed Bullet Camera with a 2.8 mm fixed focal lens and 4K, 3840 × 2160 resolution, for HD analogue CCTV with 1 HD analog output. It gives 24/7 color imaging with F1.0 aperture, up to 40 m white light and 40 m IR distance, and is water and dust resistant (IP67).
Key features
- 4K, 3840 × 2160 resolution from a 4K CMOS sensor
- 24/7 color imaging with F1.0 aperture
- Smart-Hybrid light with flexible lighting options: up to 40 m white light and 40 m IR distance
- 130 dB true WDR for clear imaging against strong back light
- Built-in mic with audio over coaxial cable
- 2.8 mm lens: horizontal FOV 105°, vertical FOV 60°, diagonal FOV 132°
- Water and dust resistant (IP67)
- Anti-corrosion protection: NEMA 4X (NEMA 250-2018)
Frequently asked questions
How far can the DS-2CE12UF3T-LSYE see at night?
It offers up to 40 m white light and 40 m IR distance. The supplement light type is Smart, IR and white light.
How is the camera powered?
Power is 12 VDC ± 25% or PoC.at, Max. 6.9 W. Hikvision recommends using one power adapter to supply the power for one camera.
What is the field of view of the 2.8 mm version?
The 2.8 mm lens gives a horizontal FOV of 105°, a vertical FOV of 60° and a diagonal FOV of 132°.
Does the camera record audio?
Yes. It has a built-in mic with audio over coaxial cable, and the pickup distance is in a radius of up to 5 m.
How weather-resistant is the camera?
It is water and dust resistant (IP67), has NEMA 4X (NEMA 250-2018) anti-corrosion protection and operates from -40 °C to 60 °C at a humidity of 90% or less (non-condensing).
What video signal does it output?
It has 1 HD analog output, with TVI frame rates of 4K @12.5/15 fps, 3K@25/20 fps, 4 MP@25 fps/30 fps and 1080p@25 fps/30 fps. The signal system is PAL/NTSC.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE12UF3T-LSYE(2.8mm) |
| Manufacturer Part Number (MPN) | DS-2CE12UF3T-LSYE(2.8mm) |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 132° |
| Lens Mount | M16 |
| Microphone Pickup Distance | In a radius of up to 5 m |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 40 m, White Light: Up to 40 m |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Frame Rate | TVI: 4K @12.5/15 fps, 3K@25/20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
| Day/Night Mode | Auto/Color |
| WDR | ≥130 dB |
| Image Enhancement | BLC, HLC, Global, WDR, Face AE, HLS |
| Privacy Mask | 4 programmable polygon privacy masks |
| Noise Reduction | 3D DNR |
| Video Output | 1 HD analog output |
| Motion Detection | 4 programmable motion areas |
| Communication | HIKVISION-C |
| Power | 12 VDC ± 25%/PoC.at, Max. 6.9 W |
| Material | Front cover: Metal, Main body: Plastic |
| Dimension | 205.7mm × 83.7 mm × 80.7 mm (8.1" × 3.3" × 3.18") |
| Weight | Approx. 445 g (0.98 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Protection | IP67 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
