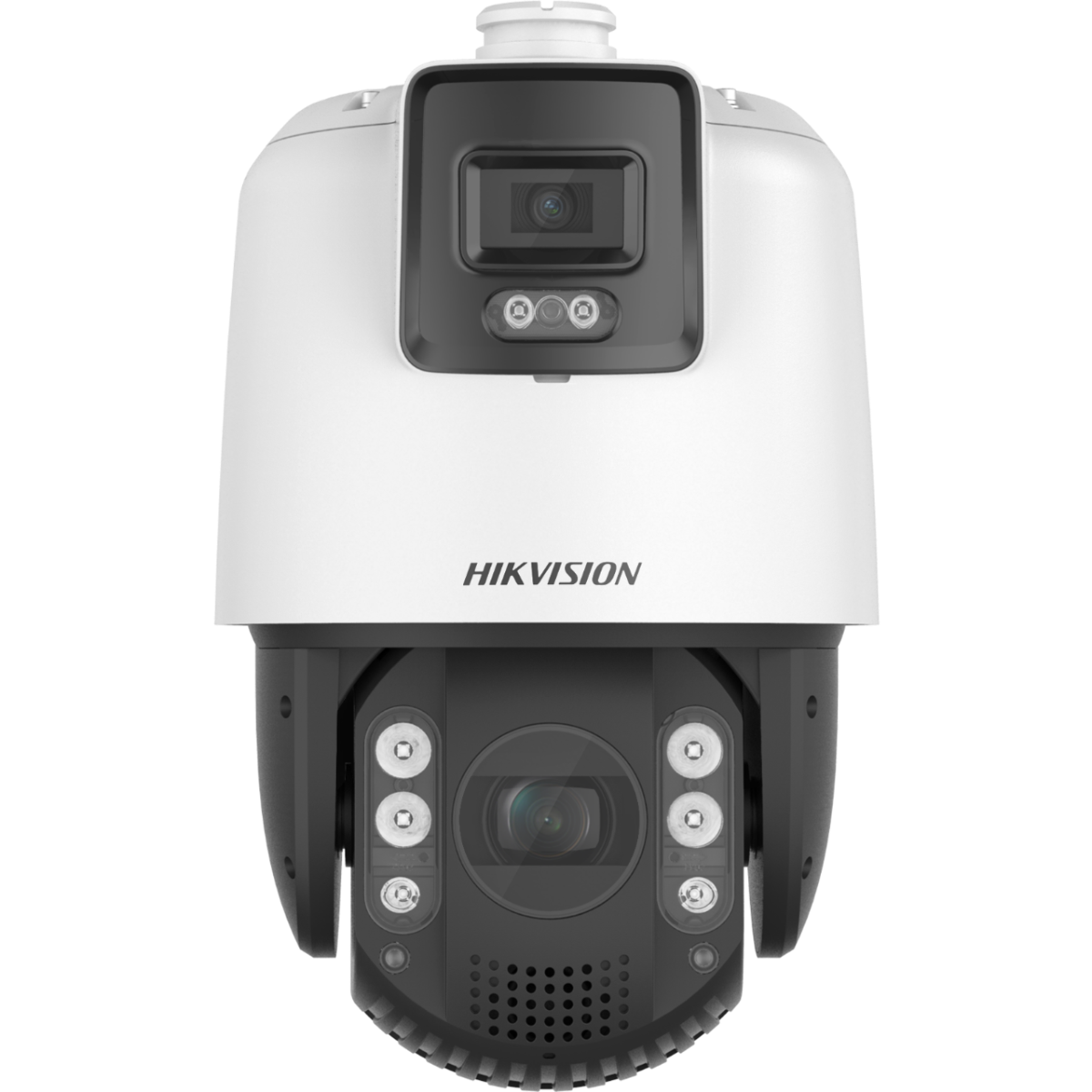

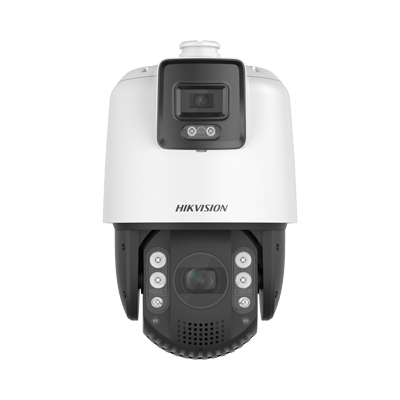

Hikvision DS-2SE7C432MW-AEB(14F1)(P3) TandemVu 4MP PTZ + Bullet, 32× Optical, Hi-PoE/24VAC
Free Delivery
200m IR Range
32X Zoom
Save £65.40
Hikvision 4MP TandemVu IR PTZ (32X)
About this product
About this product
The Hikvision DS-2SE7C432MW-AEB(14F1) is a versatile 4MP TandemVu IR PTZ camera designed to deliver high-quality surveillance through its advanced features:
- Resolution: 4 Megapixels for clear and detailed images.
- Zoom Capability: 32X optical zoom and 16X digital zoom for close-up views.
- IR Distance: Up to 200m, ensuring visibility in low-light conditions.
- Durability: IP66 rating for harsh weather conditions.
- Compression Technology: H.265+ for efficient storage and bandwidth utilization.
- Special Features: Excellent low-light performance, 3D intelligent positioning, and support for face capture.
Technical Details
Specifications
Resolution
4MP
Optical Zoom
32X
Digital Zoom
16X
IR Range
200m
Power Supply
24VAC, Hi-PoE 42W
Alarm Inputs/Outputs
2/1
IP Rating
IP66
Min. Illumination
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0
Day & Night
ICR
Wide dynamic range
120 dB WDR
Focal Length
[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
Aperture
[Bullet channel]: F1.0; [PTZ channel]: F1.5
Supplement Light Type
[Bullet channel] White Light, [PTZ channel] IR
Power-off Memory
Yes
Max. Resolution
[Bullet channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440
Video Compression
H.265, H.264, MJPEG
Audio Compression
G.711, G.722.1, G.726, MP2L2, PCM
Audio Bit rate
32 to 192 Kbps (MP2L2)
Audio Sampling Rate
8 kHz, 16 kHz, 32 kHz, 48 kHz
Network Storage
NAS (NFS, SMB/ CIFS), ANR
Alarm Input
2 alarm inputs
Alarm Output
1 alarm output
Audio Input
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output
1 audio output, line level, impedance: 600 Ω
Power
24 VAC, Hi-PoE
Operating Conditions
-30°C to 65°C (-22°F to 149°F), humidity lower than 90%RH
Material
ADC12
Dimensions
Ø 220 mm × 382.1 mm (Ø 8.66" × 15.04")
Weight
Approx. 6 kg (13.23 lb.)
Manufacturer
Name
Hikvision
Type of Product
Simple
Performance
Lens
5.9-188.8mm
WDR
120dB
Specifications
| Resolution | 4MP |
|---|---|
| Optical Zoom | 32X |
| Digital Zoom | 16X |
| IR Range | 200m |
| Power Supply | 24VAC, Hi-PoE 42W |
| Alarm Inputs/Outputs | 2/1 |
| IP Rating | IP66 |
| Min. Illumination | [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 |
| Day & Night | ICR |
| Wide dynamic range | 120 dB WDR |
| Focal Length | [Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical |
| Aperture | [Bullet channel]: F1.0; [PTZ channel]: F1.5 |
| Supplement Light Type | [Bullet channel] White Light, [PTZ channel] IR |
| Power-off Memory | Yes |
| Max. Resolution | [Bullet channel]: 2560 × 1440; [PTZ channel]: 2560 × 1440 |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM |
| Audio Bit rate | 32 to 192 Kbps (MP2L2) |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Alarm Input | 2 alarm inputs |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output, line level, impedance: 600 Ω |
| Power | 24 VAC, Hi-PoE |
| Operating Conditions | -30°C to 65°C (-22°F to 149°F), humidity lower than 90%RH |
| Material | ADC12 |
| Dimensions | Ø 220 mm × 382.1 mm (Ø 8.66" × 15.04") |
| Weight | Approx. 6 kg (13.23 lb.) |
Manufacturer
| Name | Hikvision |
|---|---|
| Type of Product | Simple |
Performance
| Lens | 5.9-188.8mm |
|---|---|
| WDR | 120dB |
Hikvision 4MP TandemVu IR PTZ (32X) features
Hikvision DS-2SE7C432MW-AEB(14F1)(P3) TandemVu 4MP PTZ + Bullet, 32× Optical, Hi-PoE/24VAC
