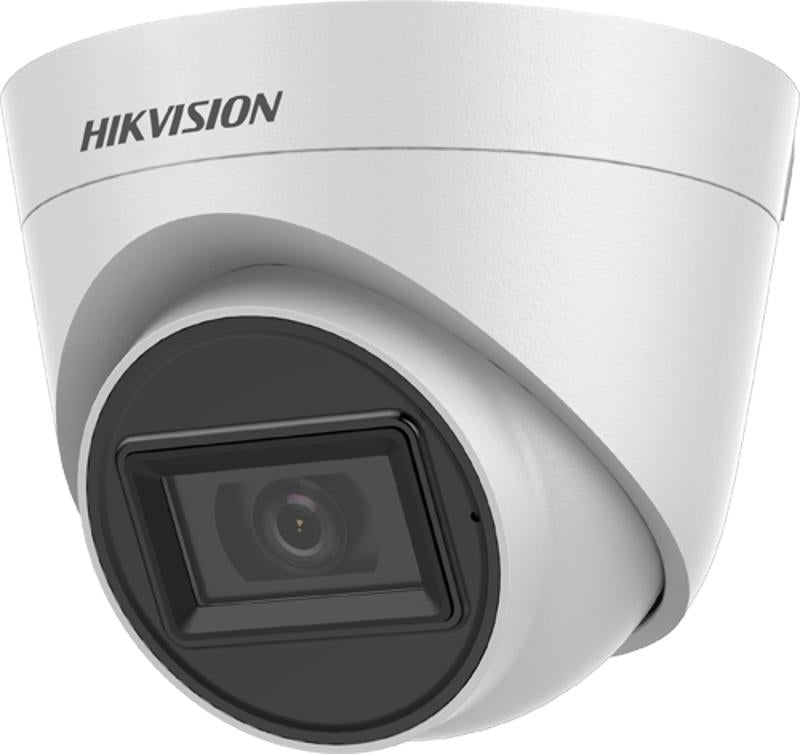

Hikvision DS-2CE78H0T-IT3FS(2.8MM) 5 MP Audio Fixed Turret Camera, 2.8mm, Up to 40m IR
About this product
The Hikvision DS-2CE78H0T-IT3FS(2.8MM) is a 5 MP audio fixed turret camera with a 2.8 mm fixed lens, a built-in mic and Smart IR up to 40 m, for CCTV systems cabled with coaxial cable. Its 4 in 1 video output switches between TVI, AHD, CVI and CVBS, and it carries audio over the coaxial cable.
Key features
- 5 MP CMOS sensor with 2560 × 1944 resolution
- 2.8 mm fixed lens with a 110.7° diagonal field of view
- Smart IR with up to 40 m IR distance
- Built-in mic with audio over coaxial cable
- 4 in 1 video output, switchable TVI/AHD/CVI/CVBS
- Digital WDR
- IP67 protection
- 12 VDC ± 25% power supply, consumption Max. 3.7 W
Frequently asked questions
What field of view does the 2.8 mm lens give?
The 2.8 mm fixed lens gives a horizontal FOV of 85.5°, a vertical FOV of 63.7° and a diagonal FOV of 110.7°.
How far does the night vision reach?
Smart IR gives up to 40 m IR distance. Minimum illumination is 0.01 Lux@(F2.0, AGC ON), or 0 Lux with IR.
What power supply does the camera need?
It takes 12 VDC ± 25%, with consumption of Max. 3.7 W. Hikvision recommends using one power adapter to supply the power for one camera.
Does the camera pick up audio?
Yes. It has a built-in mic and carries audio over the coaxial cable.
Which video formats does it output?
The 4 in 1 video output is switchable between TVI, AHD, CVI and CVBS. On TVI and AHD the frame rate list starts at 5MP@20fps.
What are its protection and operating ratings?
It is rated IP67, and its operating condition is -40° C to 60° C with humidity of 90% or less (no condensation).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE78H0T-IT3FS(2.8MM) |
| Manufacturer Part Number (MPN) | DS-2CE78H0T-IT3FS(2.8MM) |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed lens |
| Focal Length & FOV (2.8 mm) | horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7° |
| Lens Mount | M12 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| WDR | Digital WDR |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Audio | Audio over coaxial cable, built-in mic |
| Material | Enclosure: Plastic; Main Body: Metal |
| Dimension | Φ 109.82 mm × 91.03 mm |
| Weight | Approx. 300 g |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Power Supply | 12 VDC ± 25% |
| Consumption | Max. 3.7 W |
| IR Range | Up to 40 m |
| Protection | IP67 |
