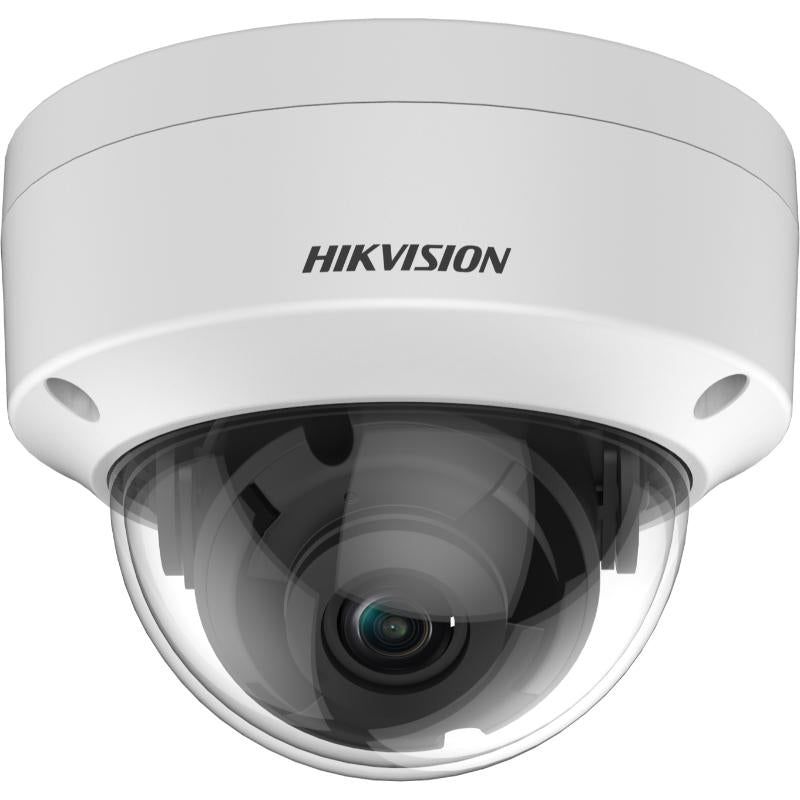

Hikvision DS-2CE57H0T-VPITE(2.8MM)(C) 5 MP Vandal PoC Fixed Dome Camera, 2.8mm, Up to 20m IR
About this product
The Hikvision DS-2CE57H0T-VPITE(2.8MM)(C) is a 5 MP vandal PoC fixed dome camera with a 2.8 mm fixed focal lens, for HD analogue CCTV systems. It gives 2560 × 1944 resolution, up to 20 m IR distance for night imaging, and is water and dust resistant (IP67) and vandal resistant (IK10).
Key features
- 5 MP CMOS image sensor with a maximum resolution of 2560 (H) × 1944 (V)
- 2.8 mm fixed focal lens: horizontal FOV 93°, vertical FOV 75°, diagonal FOV 124°
- IR range up to 20 m, with Smart IR
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Frame rate of 5 M @ 20 fps
- Digital WDR with DWDR, BLC and HLC image enhancement
- Powered from 12 VDC ±25% or PoC.af, consumption Max. 2.6 W
- 1 HD analog output, PAL/NTSC signal system
Frequently asked questions
How is the DS-2CE57H0T-VPITE(2.8MM)(C) powered?
It takes 12 VDC ±25% or PoC.af, with consumption of Max. 2.6 W. Hikvision recommends one power adapter to supply the power for one camera.
How far does the night vision reach?
The IR range is up to 20 m. Minimum illumination is 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR.
What field of view does the 2.8 mm lens give?
The 2.8 mm fixed focal lens gives a horizontal FOV of 93°, a vertical FOV of 75° and a diagonal FOV of 124°.
Is the camera weather and vandal resistant?
Yes. It is water and dust resistant (IP67) and vandal resistant (IK10), and operates from -40 °C to 60 °C at humidity of 90% or less (non-condensation).
What resolution and frame rate does it output?
Maximum resolution is 2560 (H) × 1944 (V), with a frame rate of 5 M @ 20 fps; 4 M runs at 30 fps or 25 fps and 1080P at 30 fps or 25 fps.
Which mounting accessories suit this camera?
Optional accessories include the DS-1272ZJ-110B, DS-1258ZJ and DS-1272ZJ-110 wall mounts, the DS-1271ZJ-110 pendant mount, the DS-1275ZJ-SUS vertical pole mount, the DS-1280ZJ-DM18 junction box and the DS-1259ZJ inclined ceiling mount.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE57H0T-VPITE(2.8MM)(C) |
| Manufacturer Part Number (MPN) | DS-2CE57H0T-VPITE(2.8MM)(C) |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355° |
| Signal System | PAL/NTSC |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV (2.8 mm) | horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° |
| Lens Mount | M12 |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| WDR | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Manual |
| Video Output | 1 HD analog output |
| IR Range | Up to 20 m |
| Material | Metal |
| Dimension | 82.4 mm × Ø111 mm (3.2" × Ø4.4") |
| Weight | Approx. 440 g (0.97 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Power Supply | 12 VDC ±25%/PoC.af |
| Consumption | Max. 2.6 W |
| Protection | IP67, IK10 |
