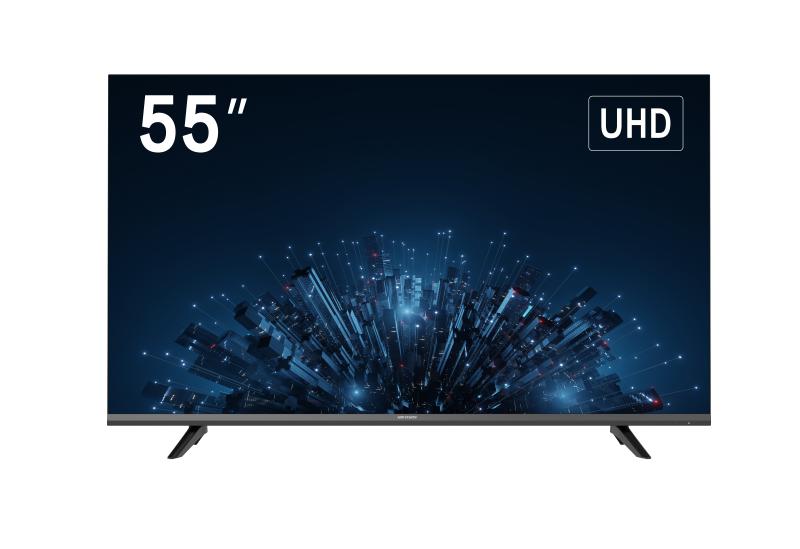

Hikvision DS-D5255U3-1V0D 55-inch Ultra HD Monitor, 3840 × 2160 @60 Hz, Max 36CH Decoding
About this product
The Hikvision DS-D5255U3-1V0D is a 55-inch Ultra HD monitor at 3840 ×2160 @60 Hz for IP CCTV systems, with video decoding of up to a maximum of 36CH. It supports ONVIF and RTSP camera protocols, decodes H.264, H.265, Smart264, Smart265 and MJPEG, and offers local UI and Web UI.
Key features
- 55-inch screen at 3840 ×2160 @60 Hz with D-LED backlight
- Maximum 36CH video decoding channel, with 1-screen layout support of max. 32MP
- Decodes H.264, H.265, Smart264, Smart265 and MJPEG
- ONVIF and RTSP camera protocol support
- Screen split of 1/4/6/8/9/16/25/36
- HDMI 2.0 ×1 input, USB2.0 ×2 and 1000M LAN × 1
- Speakers: 8 Ω 10 W ×2
- 178° / 178° viewing angle, 300 cd/㎡ brightness and 4000 : 1 contrast ratio
Frequently asked questions
What resolution is the DS-D5255U3-1V0D?
It is a 55-inch Ultra HD monitor at 3840 ×2160 @60 Hz, with a 60 Hz refresh rate.
How many camera streams can it decode?
It has a maximum of 36CH video decoding channels. In H.264/H.265 it supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, or 36-channel D1 and lower resolution @ 30 fps in real time.
Which camera protocols does it support?
It supports the ONVIF and RTSP camera protocols.
Does it come with a stand?
Yes. The base is included by default. It also has a VESA size of 7.87 inch ×7.87 inch.
What is in the box?
Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1 and Screw × 6.
What power does it use?
Power supply is 100-240 V～, 50/60 Hz, 1.0A Max, with power consumption of ≤100W and standby consumption of ≤ 0.5 W.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-D5255U3-1V0D |
| Manufacturer Part Number (MPN) | DS-D5255U3-1V0D |
| Video Decoding Format | H.264，H.265，Smart264，Smart265，MJPEG |
| Decoding Resolution | Max. 32 MP |
| Video Decoding Channel | Max 36CH |
| Encrypted Stream Decoding Channel | Max 16CH |
| Screen Split Quantity | 1/4/6/8/9/16/25/36 |
| Scene Quantity | 4 |
| Audio Decoding | Supported |
| Screen Size | 55 inch |
| Active Display Area | 1209.6 (H) mm × 680.4 (V) mm |
| Resolution | 3840 ×2160 @60 Hz |
| Backlight | D-LED |
| Pixel Pitch | 0.315 (H)mm × 0.315 (V) mm |
| Brightness | 300 cd/㎡ |
| Viewing Angle | 178° / 178° |
| Color Depth | 8 bit+FRC |
| Contrast Ratio | 4000 : 1 |
| Response Time | 6.5 ms (typ) |
| Refresh Rate | 60 Hz |
| Haze | Haze 2%, 3H |
| Color Gamut | 72% NTSC |
| Reliability | 7 *24H |
| Video & Audio Input | HDMI 2.0 ×1 |
| Video & Audio Output | Speaker Out × 2 ( 8Ω 10W ), Line-out 3.5mm × 1 |
| Data Transmission Interface | USB2.0 ×2, 1000M LAN × 1, RELAY IN × 1, RELAY OUT × 2 |
| Control Interface | CONSOLE × 1, RS485 × 1 |
| Power Supply | 100-240 V～, 50/60 Hz, 1.0A Max |
| Power Consumption | ≤100W |
| Standby Consumption | ≤ 0.5 W |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 20% to 90% RH (Non-Condensing) |
| Speaker | 8 Ω 10 W ×2 |
| Casing Material | Plastic |
| VESA | 7.87 inch ×7.87 inch |
| Bezel Width | 0.05 inch (top/left/right) , 0.94 inch (bottom) |
| Product Dimensions (W × H × D) | Without base: 1225.2 (W) mm × 713.9 (H) mm × 73.76 (D) mm; With base: 1225.2 (W) mm × 772.86 (H) mm × 242.11 (D) mm |
| Net Weight | 11.30 ± 0.5 kg (24.91 ± 1.1 lb.) |
| Gross Weight | 15.29 ± 0.5 kg (33.68 ± 1.1 lb.) |
| Packing List | Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6 |
