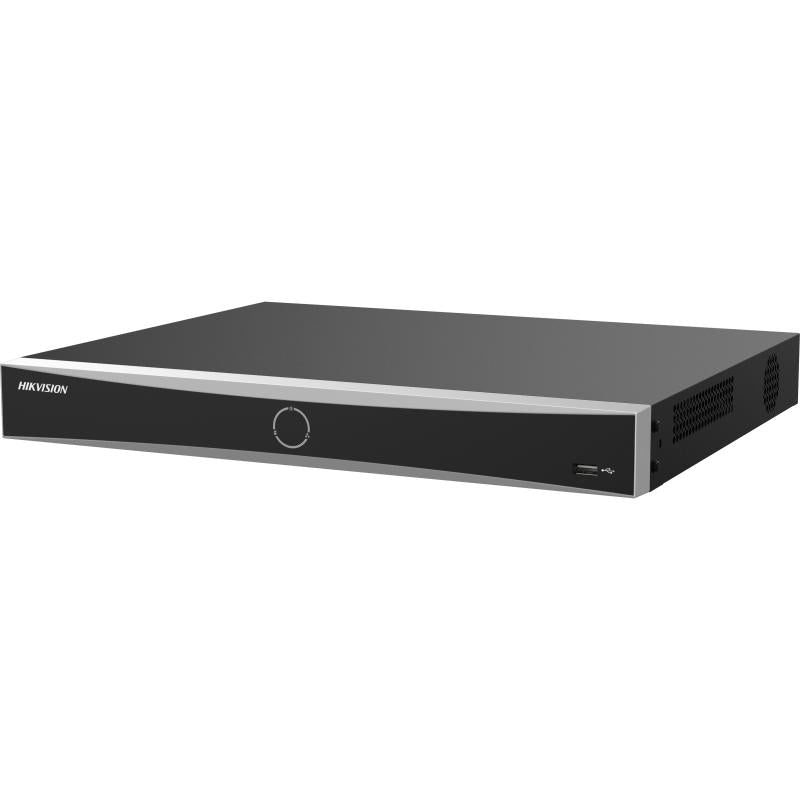

Hikvision DS-7608NXI-K2/8P/VPro 8-Channel PoE AcuSeek NVR, 8 PoE Ports, Up to 12 MP Decoding
Free Delivery
Save £77.93
About this product
The Hikvision DS-7608NXI-K2/8P/VPro is a 8-ch 1U 8 PoE AcuSeek K VPro NVR for IP CCTV systems, with up to 8-ch IP camera inputs that plug & play through its 8 Power-over-Ethernet (PoE) interfaces. It supports up to 8-ch AcuSeek and AcuSearch function, up to 4-ch@12 MP or 6-ch@8 MP or 8-ch@4 MP or 8-ch@2 MP decoding capacity, and H.265+/H.265/H.264+/H.264 video formats, with 2 SATA interfaces for up to 16 TB capacity for each HDD.
Key features
- Up to 8-ch AcuSeek and AcuSearch function
- Up to 8-ch IP camera inputs with 8 PoE interfaces (IEEE 802.3af/at, PoE power ≤ 80W)
- Up to 4-ch@12 MP or 6-ch@8 MP or 8-ch@4 MP or 8-ch@2 MP decoding capacity
- Perimeter protection and Motion Detection 2.0 by NVR for human and vehicle recognition to reduce false alarm
- H.265+/H.265/H.264+/H.264 video formats, up to 80 Mbps incoming bandwidth
- HDMI/VGA independent output, HDMI at 4K (3840 × 2160)/30 Hz
- 2 SATA interfaces, up to 16 TB capacity for each HDD
- Two-Way Audio 1-ch and 4-ch IP speaker input
Frequently asked questions
What storage does the DS-7608NXI-K2/8P/VPro take?
It has 2 SATA interfaces, with up to 16 TB capacity for each HDD.
How many cameras can it power over PoE?
It has 8 PoE interfaces (RJ-45 10/100 Mbps) to IEEE 802.3af/at, with PoE power ≤ 80W, for up to 8-ch IP camera inputs.
What camera resolutions can it decode?
Up to 4-ch@12 MP or 6-ch@8 MP or 8-ch@4 MP or 8-ch@2 MP decoding capacity. With AI on, it decodes 2-channel 12 MP@30 fps.
What does AcuSeek need from the cameras?
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modelling 50,000 targets/day. The search language is English.
What monitor outputs does it have?
HDMI/VGA independent output: HDMI supports 4K (3840 × 2160)/30 Hz and VGA supports 1080P (1920 × 1080)/60 Hz.
What power supply does it use?
48 VDC, 2.5 A, with consumption ≤ 15 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
DS-7608NXI-K2/8P/VPro
Manufacturer Part Number (MPN)
DS-7608NXI-K2/8P/VPro
AI By NVR
Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek
AI By NVR And Camera
Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA
AcuSeek performance
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, AcuSeek in all channels, capable of modeling 50,000 targets/day
AcuSeek search language
English
Perimeter protection by NVR
Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch
Motion Detection 2.0 by NVR
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
Face picture library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB)
IP video input
8-ch
Incoming bandwidth
80 Mbps
Outgoing bandwidth
160 Mbps
IP speaker input
4-ch
Video output mode
HDMI/VGA independent output
HDMI 1 output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz
VGA 1 output
1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz
Audio input
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Audio output
1-ch, RCA (Linear, 1 KΩ)
Decoding format
H.265, H.265+, H.264, H264+
Recording resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Playback mode
Normal/Smart, Event, Tag, External File
Synchronous playback
8-ch
Live view window division
1/2/4/6/8/9
Decoding capability (AI on)
2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps
Decoding capability (AI off)
4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps
Audio compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote connection
128
PoE interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE power
≤ 80W
PoE standard
IEEE 802.3af/at
SATA
2 SATA interfaces
Capacity
Up to 16 TB capacity for each HDD
Alarm in/out
4/1
USB interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Power supply
48 VDC, 2.5 A
Consumption
≤ 15 W (without HDD)
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10 to 90 %
Dimension (W × D × H)
384 mm × 317 mm × 52 mm (15.12 × 12.48 × 2.03 inch)
Obtained certification
CE,CB,REACH,WEEE,UKCA,RCM,IC
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7608NXI-K2/8P/VPro |
| Manufacturer Part Number (MPN) | DS-7608NXI-K2/8P/VPro |
| AI By NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
| AI By NVR And Camera | Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA |
| AcuSeek performance | If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, AcuSeek in all channels, capable of modeling 50,000 targets/day |
| AcuSeek search language | English |
| Perimeter protection by NVR | Up to 4 MP: 2-ch; 5 MP to 8 MP: 1-ch |
| Motion Detection 2.0 by NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| Face picture library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| IP video input | 8-ch |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 160 Mbps |
| IP speaker input | 4-ch |
| Video output mode | HDMI/VGA independent output |
| HDMI 1 output | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz |
| VGA 1 output | 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz |
| Audio input | Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding format | H.265, H.265+, H.264, H264+ |
| Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Playback mode | Normal/Smart, Event, Tag, External File |
| Synchronous playback | 8-ch |
| Live view window division | 1/2/4/6/8/9 |
| Decoding capability (AI on) | 2-channel 12 MP@30 fps, 3-channel 8 MP@30 fps, 4-channel 6 MP@30 fps, 6-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps |
| Decoding capability (AI off) | 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Remote connection | 128 |
| PoE interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE power | ≤ 80W |
| PoE standard | IEEE 802.3af/at |
| SATA | 2 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Alarm in/out | 4/1 |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Power supply | 48 VDC, 2.5 A |
| Consumption | ≤ 15 W (without HDD) |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10 to 90 % |
| Dimension (W × D × H) | 384 mm × 317 mm × 52 mm (15.12 × 12.48 × 2.03 inch) |
| Obtained certification | CE,CB,REACH,WEEE,UKCA,RCM,IC |
