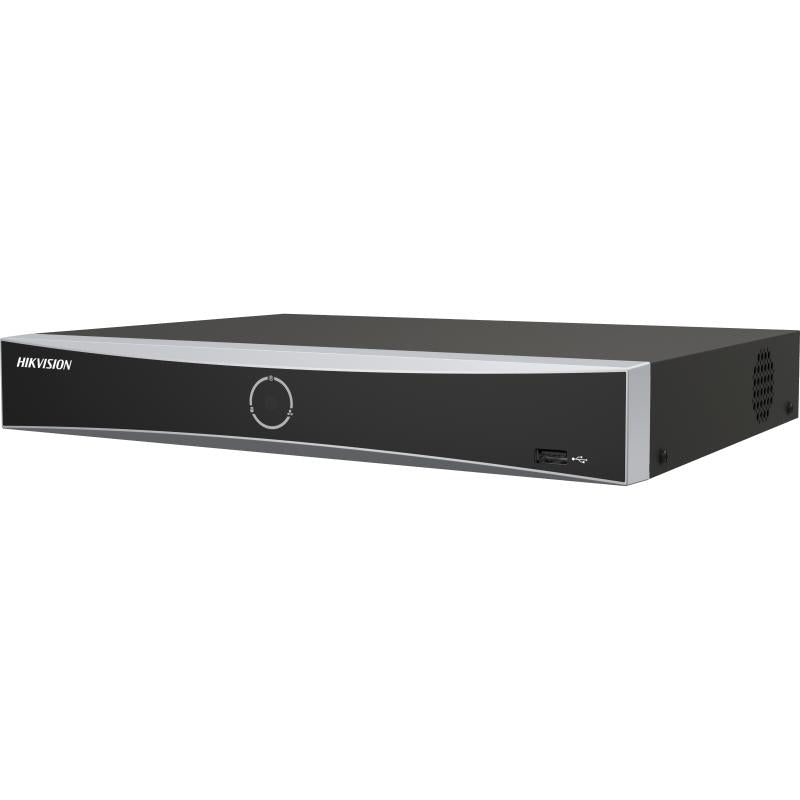

Hikvision DS-7608NXI-K1/8P(E) 8-Channel PoE AcuSense 4K NVR, 8 PoE Interfaces, 1U K Series
Free Delivery
Save £45.07
About this product
The Hikvision DS-7608NXI-K1/8P(E) is an 8-ch PoE 1U K Series AcuSense 4K NVR for IP CCTV systems, taking up to 8-ch IP camera inputs with plug & play through 8 Power-over-Ethernet (PoE) interfaces. Its AI by NVR covers facial recognition, perimeter protection, motion detection 2.0 and AcuSearch, with human and vehicle recognition to reduce false alarm, and it records H.265+/H.265/H.264+/H.264 video.
Key features
- Up to 8-ch IP camera inputs, plug & play with 8 Power-over-Ethernet (PoE) interfaces (IEEE 802.3af/at, PoE power ≤ 75W)
- AI by NVR: facial recognition, perimeter protection, motion detection 2.0, AcuSearch
- Perimeter protection by NVR with human and vehicle recognition: up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
- Motion detection 2.0 by NVR on all channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP)
- Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB)
- 1-ch HDMI output up to 4K (3840 × 2160)/30Hz, with HDMI/VGA independent output
- Up to 80 Mbps incoming bandwidth
- 1 SATA interface, up to 16 TB capacity for each HDD
Frequently asked questions
How many cameras can the DS-7608NXI-K1/8P(E) take?
Up to 8-ch IP camera inputs, with plug & play through 8 Power-over-Ethernet (PoE) interfaces.
How much PoE power does it provide?
PoE power is ≤ 75W across the 8, RJ-45 10/100 Mbps PoE interfaces, to the IEEE 802.3af/at standard.
What hard drive does it take?
It has 1 SATA interface with up to 16 TB capacity for each HDD.
Which AI functions run on the NVR itself?
AI by NVR covers facial recognition, perimeter protection, motion detection 2.0 and AcuSearch. Perimeter protection by NVR handles up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch.
What is the highest recording resolution?
Recording resolution goes up to 16 MP, but 16 MP is supported on channel 1 only.
Does it support facial recognition?
Yes. Facial detection and analytics covers face picture comparison, human face capture and face picture search, with up to 16 face picture libraries holding up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB).
Technical Details
Specifications
Brand
Hikvision
Model
DS-7608NXI-K1/8P(E)
Manufacturer Part Number (MPN)
DS-7608NXI-K1/8P(E)
AI By NVR
Facial recognition, perimeter protection, motion detection 2.0, AcuSearch
AI By Camera
Facial recognition, perimeter protection, motion detection 2.0, ANPR
AcuSearch By Camera
All channels (the camera should enable AcuSearch function)
Perimeter Protection By NVR
Human and vehicle recognition; Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
Facial Detection And Analytics
Face picture comparison, human face capture, face picture search
Facial Detection And Analytics Performance
Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
Face Picture Comparison
8-ch
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB)
Motion Detection 2.0 By NVR
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP)
IP Video Input
8-ch
IP Speaker Input
4-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA independent output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format
H.265/H.265+/H.264/H.264+
Recording Resolution
16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF (16 MP on channel 1 only)
Synchronous Playback
8-ch
Decoding Capability
AI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps; AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Compatible Browser
IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91, or above version
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Power
≤ 75W
PoE Standard
IEEE 802.3af/at
SATA
1 SATA interface
Capacity
Up to 16 TB capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Fan
Supports
Power Supply
48 VDC, 1.875 A
Consumption
≤ 10 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
319 mm × 240 mm × 48 mm (12.56 × 9.43 × 1.87 inch)
Weight
≤ 2kg (without HDD, 3 lb.)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7608NXI-K1/8P(E) |
| Manufacturer Part Number (MPN) | DS-7608NXI-K1/8P(E) |
| AI By NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch |
| AI By Camera | Facial recognition, perimeter protection, motion detection 2.0, ANPR |
| AcuSearch By Camera | All channels (the camera should enable AcuSearch function) |
| Perimeter Protection By NVR | Human and vehicle recognition; Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch |
| Facial Detection And Analytics | Face picture comparison, human face capture, face picture search |
| Facial Detection And Analytics Performance | Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch |
| Face Picture Comparison | 8-ch |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB) |
| Motion Detection 2.0 By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) |
| IP Video Input | 8-ch |
| IP Speaker Input | 4-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF (16 MP on channel 1 only) |
| Synchronous Playback | 8-ch |
| Decoding Capability | AI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps; AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91, or above version |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 75W |
| PoE Standard | IEEE 802.3af/at |
| SATA | 1 SATA interface |
| Capacity | Up to 16 TB capacity for each HDD |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| Fan | Supports |
| Power Supply | 48 VDC, 1.875 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 319 mm × 240 mm × 48 mm (12.56 × 9.43 × 1.87 inch) |
| Weight | ≤ 2kg (without HDD, 3 lb.) |
