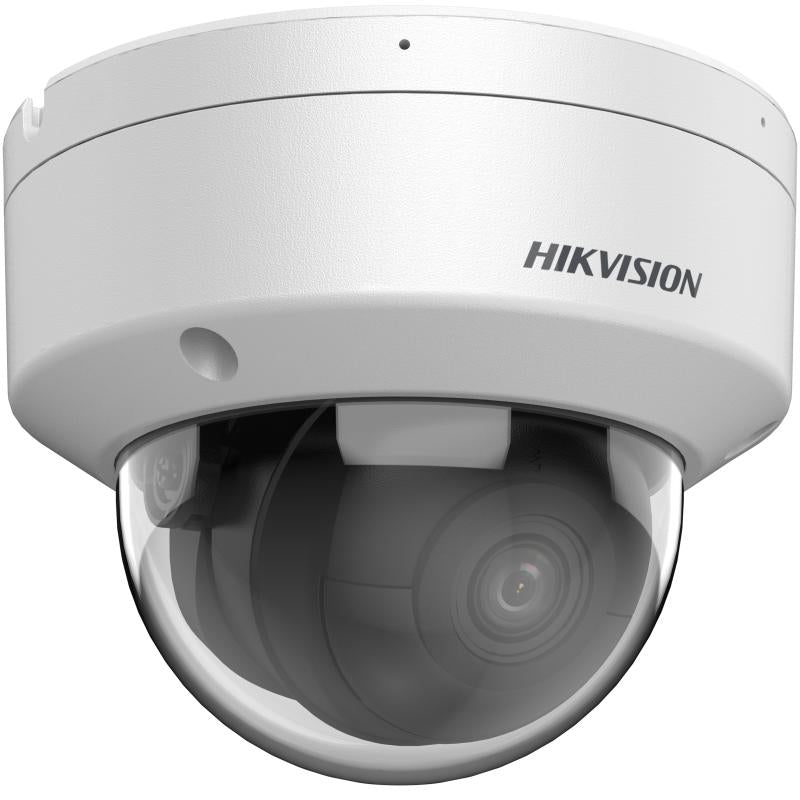

Hikvision DS-2CD2186G2H-ISU(4mm)(eF) 8 MP Fixed Dome Network Camera, 4 mm Lens, Up to 30 m IR
About this product
The Hikvision DS-2CD2186G2H-ISU(4mm)(eF) is an 8 MP Powered by Darkfighter Fixed Dome Network Camera for IP CCTV systems, with excellent low-light performance via powered-by-DarkFighter technology and a 4 mm fixed focal lens. It gives 3840 × 2160 resolution, 130 dB WDR, IR up to 30 m and human and vehicle classification based on deep learning, in a water and dust resistant (IP67) and vandal-resistant (IK10) dome.
Key features
- 8 MP resolution (3840 × 2160) from a 1/1.8" Progressive Scan CMOS sensor
- Powered-by-DarkFighter low-light performance with F1.0 aperture: Color: 0.0008 Lux @ (F1.0, AGC ON)
- IR supplement light up to 30 m, 850 nm wavelength, with smart supplement light
- 130 dB WDR for clear imaging against strong back light
- 4 mm lens: horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
- Perimeter protection (line crossing, intrusion, region entrance, region exiting) with alarm triggered by specified target types (human and vehicle)
- Built-in memory card slot for microSD/microSDHC/microSDXC card, up to 512 GB
- PoE: IEEE 802.3af, Class 3, max. 9.5 W, or 12 VDC ± 25%, max. 8 W
Frequently asked questions
How far does the DS-2CD2186G2H-ISU(4mm)(eF) see in the dark?
The IR supplement light reaches up to 30 m at an 850 nm wavelength, with smart supplement light.
Can it be powered by PoE?
Yes: PoE: IEEE 802.3af, Class 3, max. 9.5 W. It can also run from 12 VDC ± 25%, 0.66 A, max. 8 W via a Ø5.5 mm coaxial power plug.
What field of view does the 4 mm lens give?
Horizontal FOV 90.0°, vertical FOV 45.8° and diagonal FOV 109.4°. DORI distances for 4 mm are D: 109 m, O: 43 m, R: 21 m, I: 10 m.
Does it have on-board storage?
Yes. It has a built-in memory card slot that supports microSD/microSDHC/microSDXC card, up to 512 GB. It also supports NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR).
Which apps and software can view it?
The listed clients are iVMS-4200, Hik-Connect and Hik-Central, and plug-in free live view works in Chrome 57.0+, Firefox 52.0+ and Edge 89+.
Can it tell people and vehicles apart?
Yes. It focuses on human and vehicle classification based on deep learning, and perimeter protection (line crossing, intrusion, region entrance, region exiting) supports alarm triggered by specified target types (human and vehicle).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2186G2H-ISU(4mm)(eF) |
| Manufacturer Part Number (MPN) | DS-2CD2186G2H-ISU(4mm)(eF) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens Type | Fixed focal lens, 4 mm |
| Focal Length & FOV (4 mm) | Horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4° |
| Aperture | F1.0 |
| Depth Of Field (4 mm) | 3.8 m to ∞ |
| DORI (4 mm) | D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| WDR | 130 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Built-In Microphone (-U) | Yes |
| Alarm (-S) | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; alarm triggered by specified target types (human and vehicle) |
| Face Capture | Yes |
| Power | 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material | Base: aluminum alloy, cover: aluminum alloy |
| Dimension | Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84") |
| Weight | Approx. 525 g (1.2 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
| Colour | White |
