Introduction to the Hikvision 8‑Port Gigabit PoE Switch and its key features

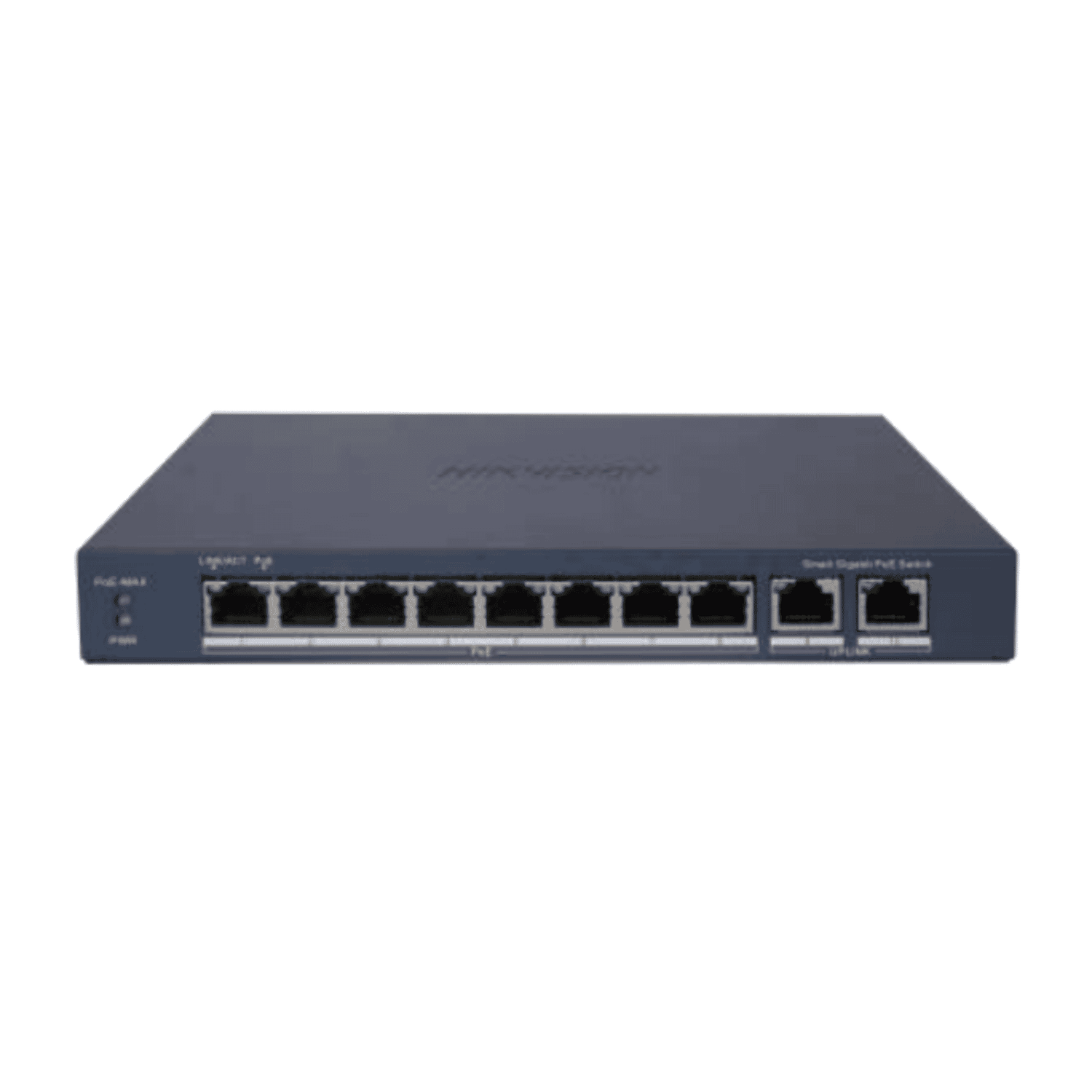

The Hikvision DS-3E1510P-EI(O-STD)V2 is an 8‑port Gigabit smart‑managed PoE switch designed for CCTV/IP surveillance and compact business networks. With eight Gigabit PoE ports capable of supplying up to 30 W per port, two Gigabit uplinks, smart Layer‑2 management and hardware protections in a fanless metal chassis, it targets installers and small IT teams who need a quiet, reliable PoE solution. At a suggested retail price of $149.99 (cost price listed at $75.68), this model positions itself as a cost‑effective option for systems that require PoE power and basic managed switching features without the complexity or cost of full enterprise switches.
Detailed specifications and benefits
- Ports:8 × 10/100/1000 PoE ports (ports 1–8) plus 2 × Gigabit uplink (RJ45 or SFP depending on variant).
- PoE standard:IEEE 802.3af / IEEE 802.3at, up to 30 W per port.
- Total PoE budget:Variant dependent — typically 80 W or 110 W. Always confirm the unit label or datasheet for the exact submodel budget.
- Long‑range PoE:An extend mode enables longer runs (Hikvision lists up to ~300 m depending on camera model and cable quality).
- Power input:Typically a 54 V DC input (current rating varies by documentation); check the label for your region and variant.
Benefits: The combination of 30 W per port and long‑range capability allows support for most modern PoE cameras (including many PTZ and IR models) and other PoE devices like access points or VoIP phones. The extend mode is especially useful where running new fiber or additional power infrastructure is impractical.
- Switching capacity:20 Gbps.
- Forwarding rate:14.88 Mpps.
- MAC table:4K entries (some listings vary by submodel).
- Buffer:Typically in the 1.5–4.1 Mbit range depending on variant.
Benefits: For small deployments the switching capacity and forwarding rate are suitable for multiple simultaneous Gigabit links, including camera feeds and uplinks to NVRs or core switches. The MAC table and buffer size are adequate for typical small networks; larger or more complex topologies may require higher‑end switches.
- Layer‑2 features:VLAN (802.1Q), STP/RSTP, link aggregation (LACP), QoS.
- Monitoring:SNMP, LLDP, port mirroring, topology monitoring.
- PoE management:PoE scheduling and a PoE watchdog that can auto‑restart devices detected as unresponsive.
- Surge protection:6 kV protection on PoE ports.
Benefits: Smart management gives installers control over traffic segmentation (VLANs), redundancy (RSTP) and bandwidth prioritisation (QoS) — useful in mixed voice, data and video environments. The PoE watchdog and surge protection increase system resilience, helping to minimise downtime for critical cameras or networked devices.
- Chassis:Fanless metal housing, suitable for desk or wall mounting.
- Operating temperature:0 °C to 40 °C.
- Storage temperature:−40 °C to 85 °C.
- Humidity:5%–95% RH non‑condensing.
- Dimensions & weight:Compact footprint (approx. 217.6 × 27.6–27.8 × 108.5 mm) and lightweight construction.
Benefits: A fanless design makes the switch ideal for noise‑sensitive environments (retail, small offices, residential sites). Metal housing improves durability and heat dissipation; however, confirm ambient temperature conditions and placement to ensure reliability within the operating range.
Use cases and scenarios where this switch excels
The DS-3E1510P-EI family is tailored to applications that require PoE and light to moderate management capabilities. Typical scenarios include:
- IP surveillance systems:Centralised PoE supply for up to eight cameras feeding an NVR. The PoE watchdog and surge protection help maintain camera uptime in the event of network or power issues.
- Small business offices:Power and network for Wi‑Fi access points, VoIP phones and IP cameras where VLANs and QoS can separate voice and video traffic from data.
- Retail and hospitality:Compact, wall‑mountable switch behind a counter or in a closet supplying PoE devices without a noisy fan.
- Edge deployments and remote sites:Use the extend mode to power cameras located beyond 100 m without additional repeaters, while relying on surge protection in outdoor‑facing runs.
- DIY and integrators:Installers who want a balance between unmanaged simplicity and fully featured enterprise switches will appreciate the smart management features.
In short, this switch excels where PoE power, protection and manageable Layer‑2 features are needed in a compact, quiet package.
Comparisons with similar products in the market
When evaluating the DS-3E1510P-EI series, it helps to compare it with competitors in the small‑business PoE switch category:
- Ubiquiti/UniFi switches:UniFi models typically integrate tightly with a controller ecosystem that simplifies network-wide policy, monitoring and firmware updates. Ubiquiti may offer a smoother user experience for those already invested in the UniFi platform, while Hikvision’s switch is more focused on surveillance uses and standalone operation.
- Netgear/ProSafe small managed switches:Netgear often emphasizes easy web GUI management and options for higher PoE budgets or redundancy. Netgear may have broader reseller support, whereas Hikvision offers feature sets tuned for camera systems (long‑range PoE, PoE watchdog).
- TP‑Link Omada / Small Business:TP‑Link tends to be competitively priced with a decent management feature set and cloud/controller options. The Hikvision unit’s surge protection and long‑range PoE support are differentiators for surveillance use cases.
- Cisco Small Business / Catalyst L2 models:Cisco provides strong enterprise features, extensive protocol support and ecosystem integration, usually at a higher price point. For organisations needing advanced security, scalability and support contracts, Cisco remains a strong choice; for cost‑sensitive surveillance or branch deployments the Hikvision model can be more economical.
Decision factors: choose based on ecosystem compatibility (controller/cloud), PoE budget needs, required management features, and whether specialized functions like long‑range PoE and PoE watchdog are priorities.
Customer feedback and reviews
Formal independent reviews for this specific submodel vary by region. From installer and integrator feedback in comparable deployments, recurring comments include:
- Positive: Clear value for money when powering multiple cameras; appreciated fanless operation, compact form and hardware protections (6 kV surge).
- Positive: Useful smart features like VLANs, QoS and PoE scheduling make it a practical step up from unmanaged switches without the complexity of enterprise gear.
- Considerations: Buyers are advised to check the exact submodel for total PoE budget (80 W vs 110 W) and uplink type (RJ45 vs SFP) — mixing up variants can cause unexpected limitations.
- Considerations: For larger systems, administrators sometimes prefer switches with larger MAC tables, bigger buffers or a unified management platform; this model is aimed at small installations.
If you need verified user reviews, consult reseller listings and industry forums for region‑specific feedback and deployment stories.
Conclusion: Why this Hikvision PoE switch is a strong choice
The Hikvision DS-3E1510P-EI(O-STD)V2 delivers a well‑balanced feature set for surveillance‑centric and small business networks: eight Gigabit PoE ports at up to 30 W each, two uplinks, smart Layer‑2 management, extend mode for long cable runs and hardware protections like a PoE watchdog and 6 kV surge protection. Its fanless metal chassis and compact footprint make it suitable for quiet offices and tight spaces. Priced competitively, it represents a cost‑effective option for installers and small IT teams seeking reliability and basic manageability without the overhead of enterprise switches.
Before purchasing, confirm the exact DS-3E1510P variant for uplink type and total PoE budget, and validate regional power/approval markings on the datasheet. When chosen for the right deployment — particularly camera systems and small PoE networks — this Hikvision switch is a practical, feature‑rich choice that balances price, protection and performance.
