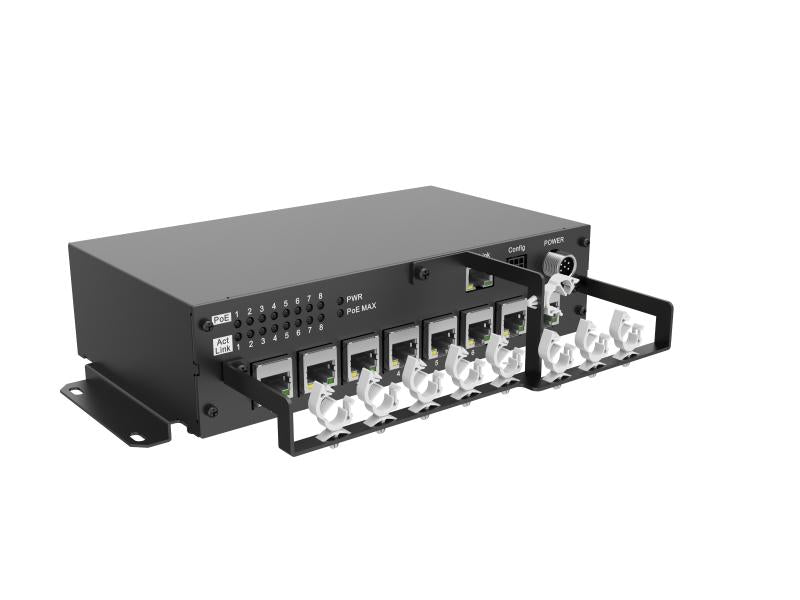

Hikvision AE-MS8400(RJ45) 8-Port PoE Ethernet Switch, Max 86W PoE, 1000M Uplink
About this product
The Hikvision AE-MS8400(RJ45) is an Ethernet switch with 8-port 100M PoE and a 1-port 1000M uplink that connects to an MVR, for linking up to 8 PoE peripherals to a mobile MVR. It runs from DC9V~36V, supports ACC function and shutdown delay, and is plug and play with no configuration required.
Key features
- 8×10/100Mbps RJ45 PoE ports with a fixed bracket
- All 100M interfaces support PoE: 7×802.3af+1×802.3at, max 86W total
- 1×10/100/1000Mbps RJ45 uplink port for mobile MVR connection
- Supports ACC function and shutdown delay, with RS232 for the delay shutdown time configuration
- Plug and play, no configuration required
- Cable fixed bracket, with clips by default to improve fixing performance
- Operating voltage range DC9V~36V
- Indicators: 1 power status, 1 PoE full-load, 8 peripheral link and 8 PoE
Frequently asked questions
How many PoE ports does the AE-MS8400(RJ45) have?
It has 8×10/100Mbps RJ45 PoE ports with a fixed bracket; the PoE standard is 7×802.3af+1×802.3at, max 86W total.
What does the uplink port connect to?
The 1×10/100/1000Mbps RJ45 uplink port is for mobile MVR connection.
What power does it need?
The operating voltage range is DC9V~36V, with consumption <90 W (full-load).
Does it need configuring?
No. It is plug and play, with no configuration required; RS232 is for the delay shutdown time configuration.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | AE-MS8400(RJ45) |
| Manufacturer Part Number (MPN) | AE-MS8400(RJ45) |
| Type | Ethernet switch, RJ45, ACC, 8-port 100M PoE, 1-port 1000M uplink |
| Input interface definition | 8×10/100Mbps RJ45 PoE port with a fixed bracket |
| PoE standard | 7×802.3af+1×802.3at, max 86W total |
| Uplink port | 1×10/100/1000Mbps RJ45 port for mobile MVR connection |
| Configuration | RS232 for the delay shutdown time configuration |
| Operating voltage range | DC9V~36V |
| Consumption | <90 W (full-load) |
| Working humidity | 10% to 95% |
| Indicator light | 1 power status indicator, 1 PoE full-load indicator, 8 peripheral link indicator and 8 PoE indicator |
| Dimension | 242.8×127.0×57.0 mm |
