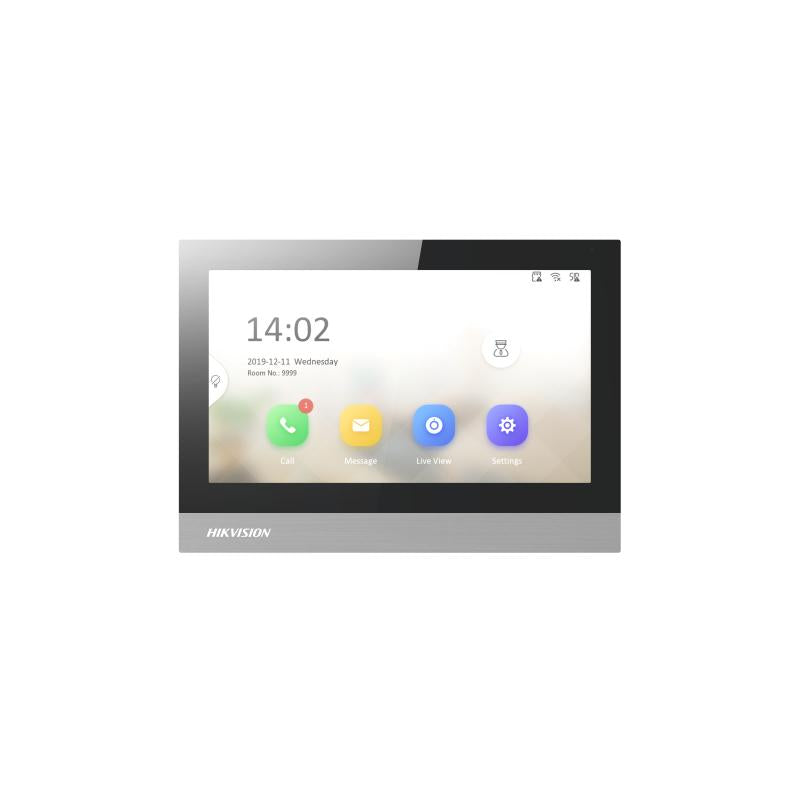

Hikvision DS-KH8380-WTE1 8 Series Indoor Station, 7-inch Touch Screen, PoE
About this product
The Hikvision DS-KH8380-WTE1 is an 8 Series indoor station with a 7-inch TFT touch screen (1024 × 600) for IP video intercom systems. Through the Hik-Connect APP, calls can be received, the door opened and live view watched remotely, and the unit takes standard IEEE802.3at PoE power supply and can power the lock.
Key features
- 7-inch capacitive TFT touch screen, 1024 × 600 resolution
- Hik-Connect APP mobile control: receive calls, open the door and live view remotely
- Standard IEEE802.3at PoE power supply, and powers the lock
- Supports up to 16 indoor extensions linkage and up to 16 linked network cameras
- Elevator access control
- Lock control: 4 relays, Max. 30 VDC 1A
- 8 alarm inputs, 1 RS-485 and a TF card slot up to 128 G
- Flush, surface and table mounting
Frequently asked questions
How is the DS-KH8380-WTE1 powered?
By IEEE802.3at standard PoE or 12 VDC, 1.5 A. Power consumption is ≤ 12 W.
Can it power and control a door lock?
Yes. It takes standard IEEE802.3at PoE power supply and can power the lock; lock control is by 4 relays, Max. 30 VDC 1A.
Can calls be answered on a phone?
Yes. With the Hik-Connect APP, calls can be received, the door opened and live view watched remotely.
How many indoor extensions and cameras can it link?
Up to 16 indoor extensions and up to 16 network cameras.
How is it mounted?
It supports flush mounting, surface mounting and table mounting.
Does it take a memory card?
Yes. It supports a TF card up to 128 G; with a TF card inserted it holds 200 captured pictures and 200 alarm records.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KH8380-WTE1 |
| Manufacturer Part Number (MPN) | DS-KH8380-WTE1 |
| Operation System | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| Screen Size | 7-inch |
| Operation Method | Capacitive touch screen |
| Screen Type | Colorful TFT |
| Screen Resolution | 1024*600 |
| Video Compression Standard | H.265, H.264 |
| Audio Input | 1 built-in omnidirectional microphone |
| Audio Output | 1 built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Message Capacity | TF card inserted: 200 captured pictures, 200 alarm records; without TF card: 2 MB RAM for picture storage, 200 alarm records |
| Notice Capacity | 200 |
| Linked Network Camera Capacity | 16 |
| Linked Indoor Extensions Capacity | 16 |
| Network Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | WiFi 802.11b/g/n |
| Network Interface | 1 RJ-45 10/100Mbps self-adaptive |
| Alarm Input | 8 |
| RS-485 | 1 |
| TF Card | Support TF card, up to 128 G |
| Lock Control | 4 relays, Max. 30 VDC 1A |
| Power Supply Output | Max. 12 VDC 0.5 A |
| Debugging Port | 1 |
| Installation | Flush mounting, surface mounting, table mounting |
| Power Supply | IEEE802.3at, Standard PoE, 12 VDC, 1.5 A |
| Power Consumption | ≤ 12 W |
| Application Environment | Indoor |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 178.4 mm × 126.4 mm × 21.8 mm (7.02" × 4.98" × 0.86") |
| Weight | Without package: 366.7 g (0.808 lb) |
| Material | Plastic casing |
