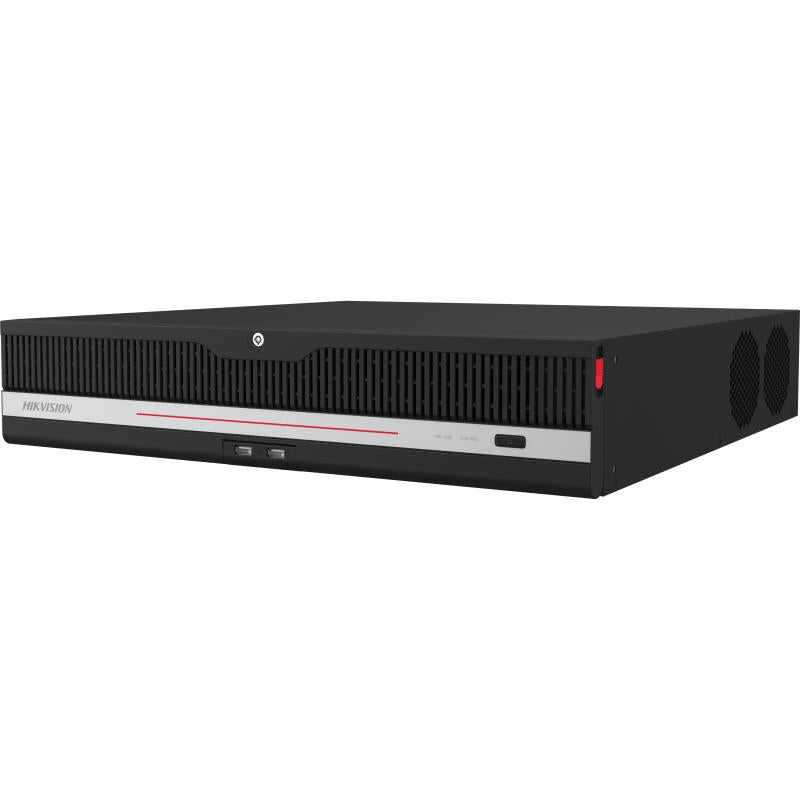

Hikvision iDS-9632NXI-M8/X/8TB-W 8K DeepinMind Network Video Recorder, 32 Channels, 8TB
Free Delivery
Save £562.23
About this product
The Hikvision iDS-9632NXI-M8/X/8TB-W is a 32-ch 2U 8K DeepinMind NVR with 8TB of storage fitted, for IP CCTV systems of up to 32 IP cameras. It runs intelligent analytics based on deep learning algorithm, with facial recognition, perimeter protection, video structuralization and AcuSearch by NVR.
Key features
- Up to 32-ch IP cameras can be connected; the NVR supports up to 8-ch 32 MP/24 MP IP video inputs
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p
- 8 SATA interfaces (3.5-inch HDD), up to 20 TB capacity for each HDD, plus 1 eSATA interface
- RAID0, RAID1, RAID5, RAID6 and RAID10
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras can the iDS-9632NXI-M8/X/8TB-W record?
Up to 32-ch IP cameras can be connected, at up to 32 MP resolution; the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage does it have?
This model has 8TB of storage fitted. The NVR has 8 SATA interfaces (3.5-inch HDD) with up to 20 TB capacity for each HDD, plus 1 eSATA interface.
Can it output 8K to a monitor?
Yes. HDMI 1 supports 8K (7680 × 4320)/30Hz. When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
Does it support RAID?
Yes: RAID0, RAID1, RAID5, RAID6 and RAID10.
What power does it need?
100 to 240 VAC, 50 to 60 Hz, with consumption ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/8TB-W
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/8TB-W
Fitted storage
8TB
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
AcuSearch By NVR
Up to 8-ch, up to 691,200 targets/day
Perimeter Protection By NVR
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
IP Video Input
32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p)
VGA 1 Output
1920 × 1080/60Hz
VGA 2 Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format
H.265/H.265+/H.264/H.264+
Synchronous Playback
16-ch
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Camera Access Protocol
ONVIF(Version 2.5), RTSP
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
SATA
8 SATA interfaces; 3.5-inch HDD
eSATA
1 eSATA interface
Capacity
Up to 20 TB capacity for each HDD
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm (17.5" × 18.3" × 3.7")
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/8TB-W |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/8TB-W |
| Fitted storage | 8TB |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| AcuSearch By NVR | Up to 8-ch, up to 691,200 targets/day |
| Perimeter Protection By NVR | 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model) |
| Structured Analysis | Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| IP Video Input | 32-ch, up to 32 MP resolution (NVR supports up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p) |
| VGA 1 Output | 1920 × 1080/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Synchronous Playback | 16-ch |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| eSATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm (17.5" × 18.3" × 3.7") |
| Weight | ≤ 10 kg (without HDD, 28.7 lb.) |
