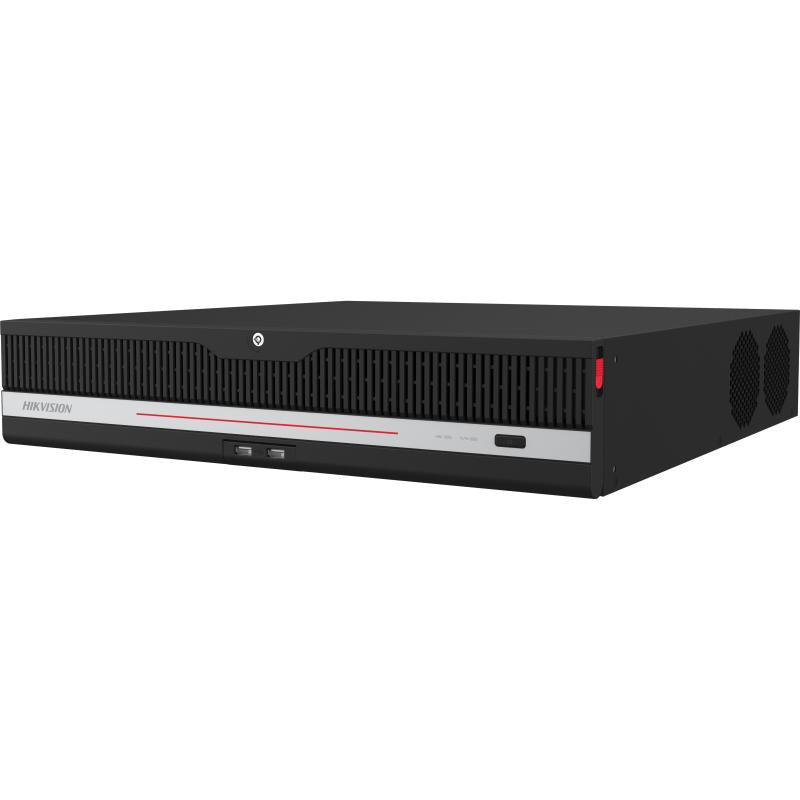

Hikvision iDS-9632NXI-M8/X/128TB 8K DeepinMind NVR, 32-Channel, 128TB Storage
Free Delivery
Save £1,774.80
About this product
The Hikvision iDS-9632NXI-M8/X/128TB is a 32-ch 2U 8K DeepinMind network video recorder (NVR), supplied with 128TB of storage fitted. It is built for IP CCTV systems, recording up to 32 IP cameras at up to 32 MP resolution (32 MP/24 MP cameras on up to 8 channels), with facial recognition, perimeter protection, video structuralization and AcuSearch run by the NVR itself.
Key features
- 32-ch IP video input at up to 32 MP resolution; 32 MP/24 MP IP cameras are supported on up to 8 channels
- Perimeter protection by the NVR on up to 24-ch 2 MP, 16-ch 4 MP or 8-ch 8 MP (without Large Model)
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Video structuralization on up to 12-ch 2 MP, 8-ch 4 MP or 4-ch 8 MP
- HDMI 1 output up to 8K (7680 × 4320)/30Hz; HDMI 2 output up to 4K (3840 × 2160)/60Hz, limited to 1080p when HDMI 1 is at 8K
- 128TB of storage fitted
- 8 SATA interfaces for 3.5-inch HDD, up to 20 TB capacity for each HDD, with RAID0, RAID1, RAID5, RAID6 and RAID10
- 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
Frequently asked questions
How many cameras can the iDS-9632NXI-M8/X/128TB record?
It has 32-ch IP video input at up to 32 MP resolution. The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
How much storage is fitted?
It is supplied with 128TB of storage fitted. The recorder has 8 SATA interfaces for 3.5-inch HDD, supporting up to 20 TB capacity for each HDD.
Which AI functions does the NVR run itself?
Facial recognition, perimeter protection, video structuralization and AcuSearch. Perimeter protection by the NVR covers up to 24-ch 2 MP, 16-ch 4 MP or 8-ch 8 MP without Large Model.
Which RAID modes does it support?
RAID0, RAID1, RAID5, RAID6 and RAID10.
Can it output 8K to a monitor?
Yes. HDMI 1 supports 8K (7680 × 4320)/30Hz. When HDMI1 output resolution is 8K, the maximum HDMI2 output resolution is 1080p.
What power does it need?
It runs on 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 50 W (without HDD).
Technical Details
Specifications
Brand
Hikvision
Model
iDS-9632NXI-M8/X/128TB
Manufacturer Part Number (MPN)
iDS-9632NXI-M8/X/128TB
IP Video Input
32-ch, up to 32 MP resolution (up to 8-ch 32 MP/24 MP IP video inputs)
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
400 Mbps
AI By NVR
Facial recognition, perimeter protection, video structuralization, AcuSearch
AI By Camera
Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA
Engine
2, each engine can run an intelligent algorithm, engine mode is adjustable
Perimeter Protection (By NVR)
24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model)
Structured Analysis
Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP
AcuSearch (By NVR)
Up to 8-ch, up to 691,200 targets/day
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (1080p maximum when HDMI1 output is 8K)
VGA 1 / VGA 2 Output
1920 × 1080/60Hz
Audio Output
2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format
H.265/H.265+/H.264/H.264+
Decoding Capability
2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
16-ch
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Network Interface
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
RAID0, RAID1, RAID5, RAID6, RAID10
Fitted Storage
128TB
SATA
8 SATA interfaces; 3.5-inch HDD
Capacity
Up to 20 TB capacity for each HDD
eSATA
1 eSATA interface
Serial Interface
1 RS-232, 1 RS-485 (full-duplex), 1 keyboard
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 to 55° C (14 to 131° F)
Working Humidity
10 to 90%
Dimension (W × D × H)
445 × 465 × 93 mm (17.5" × 18.3" × 3.7")
Weight
≤ 10 kg (without HDD, 28.7 lb.)
Obtained Certification
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Specifications
| Brand | Hikvision |
|---|---|
| Model | iDS-9632NXI-M8/X/128TB |
| Manufacturer Part Number (MPN) | iDS-9632NXI-M8/X/128TB |
| IP Video Input | 32-ch, up to 32 MP resolution (up to 8-ch 32 MP/24 MP IP video inputs) |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| AI By NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
| AI By Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA |
| Engine | 2, each engine can run an intelligent algorithm, engine mode is adjustable |
| Perimeter Protection (By NVR) | 24-ch 2 MP or 16-ch 4 MP or 8-ch 8 MP (Without Large Model); 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP (With Large Model) |
| Structured Analysis | Up to 12-ch 2 MP (6-ch for each engine) or 8-ch 4 MP or 4-ch 8 MP |
| AcuSearch (By NVR) | Up to 8-ch, up to 691,200 targets/day |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (1080p maximum when HDMI1 output is 8K) |
| VGA 1 / VGA 2 Output | 1920 × 1080/60Hz |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Decoding Format | H.265/H.265+/H.264/H.264+ |
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps) |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Fitted Storage | 128TB |
| SATA | 8 SATA interfaces; 3.5-inch HDD |
| Capacity | Up to 20 TB capacity for each HDD |
| eSATA | 1 eSATA interface |
| Serial Interface | 1 RS-232, 1 RS-485 (full-duplex), 1 keyboard |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 to 55° C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 445 × 465 × 93 mm (17.5" × 18.3" × 3.7") |
| Weight | ≤ 10 kg (without HDD, 28.7 lb.) |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
