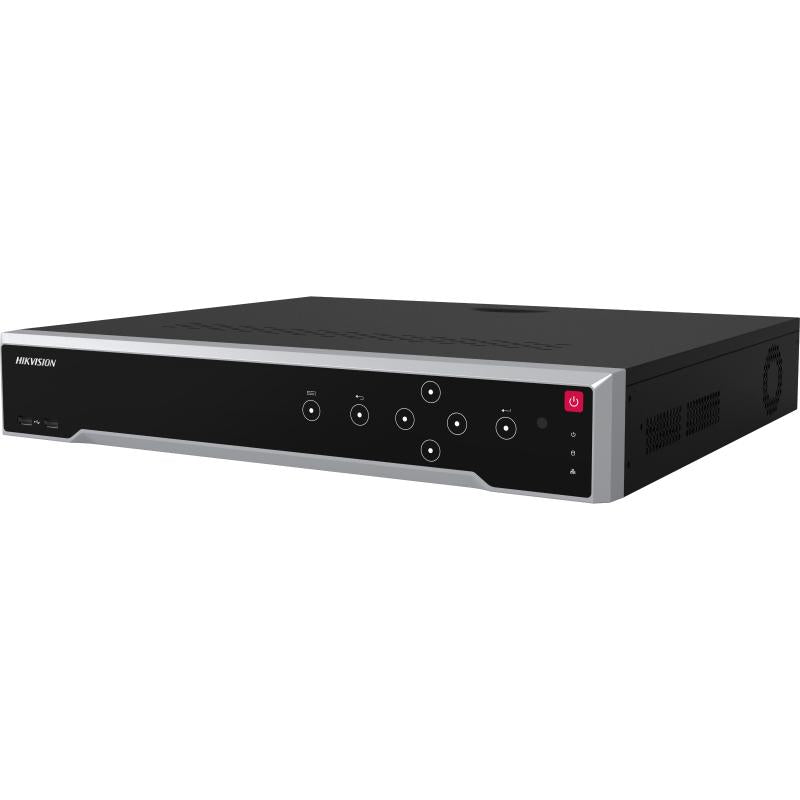

Hikvision DS-7716NI-M4-08TB-H 8K Network Video Recorder, 16 Channel, 8TB
Free Delivery
Save £184.70
About this product
The Hikvision DS-7716NI-M4-08TB-H is a 16-ch 1.5U 8K NVR fitted with 8TB of storage, for IP CCTV systems. It takes up to 16-ch IP camera inputs at up to 32 MP resolution, with the NVR supporting up to 8-ch 32/24/16 MP IP video inputs and all channels for less than 16 MP.
Key features
- 16-ch IP video input, up to 32 MP resolution (up to 8-ch at 32/24/16 MP)
- Fitted with 8TB of storage
- 8K (7680 × 4320)/30Hz output on HDMI 1
- Up to 256 Mbps incoming bandwidth
- Up to 40 x 1080p@ 30fps decoding capacity
- Up to 8-ch IP speakers can be connected
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- H.265+/H.265/H.264+/H.264 video formats
Frequently asked questions
How many cameras can the DS-7716NI-M4-08TB-H record?
It takes up to 16-ch IP camera inputs at up to 32 MP resolution. The NVR supports up to 8-ch 32/24/16 MP IP video inputs, and all channels for less than 16 MP.
How much storage is fitted, and what drive interfaces does it have?
It is fitted with 8TB. The NVR has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.
Does it have built-in PoE ports?
No. It has no PoE ports; its network connection is 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces.
Can it output 8K to a monitor?
Yes. HDMI 1 outputs up to 8K (7680 × 4320)/30Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
Does it support RAID?
Hikvision lists the RAID type for this NVR as N/A.
Is it rack-mountable?
Yes. It has a 19-inch rack-mounted 1.5U chassis measuring 445 × 400 × 75 mm.
Technical Details
Specifications
Brand
Hikvision
Model
DS-7716NI-M4-08TB-H
Manufacturer Part Number (MPN)
DS-7716NI-M4-08TB-H
IP Video Input
16-ch, up to 32 MP resolution (the NVR supports up to 8-ch 32/24/16 MP IP video inputs)
Fitted storage
8TB
Video formats
H.265+/H.265/H.264+/H.264
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p)
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Recording Resolution
32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP)
Decoding Capability
2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Synchronous Playback
16-ch
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
N/A
SATA
4 SATA interfaces
Capacity
Up to 16 TB capacity for each disk
ESATA
1 eSATA interface
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Live View & Playback Stream Encryption
Support : AES128
Secure Boot
Support
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight
≤ 5 kg (without HDD, 11 lb.)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7716NI-M4-08TB-H |
| Manufacturer Part Number (MPN) | DS-7716NI-M4-08TB-H |
| IP Video Input | 16-ch, up to 32 MP resolution (the NVR supports up to 8-ch 32/24/16 MP IP video inputs) |
| Fitted storage | 8TB |
| Video formats | H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p) |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Recording Resolution | 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP) |
| Decoding Capability | 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps) |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | N/A |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| ESATA | 1 eSATA interface |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Live View & Playback Stream Encryption | Support : AES128 |
| Secure Boot | Support |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm (17.5" × 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
