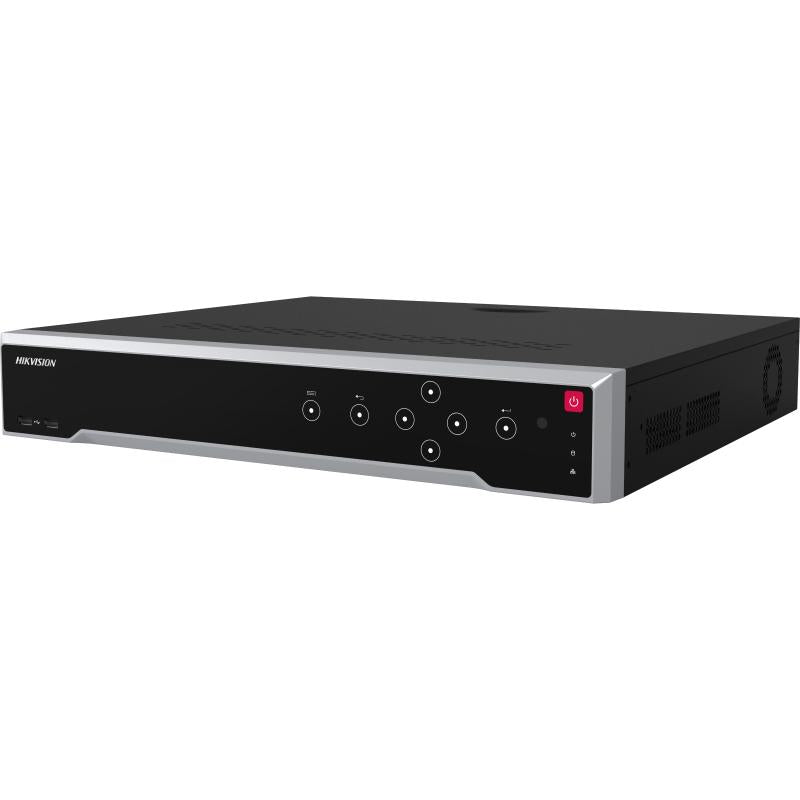

Hikvision DS-7716NI-M4/24TB 8K Network Video Recorder, 16 Channel, 24TB
Free Delivery
Save £345.22
About this product
The Hikvision DS-7716NI-M4/24TB is a 16-ch 1.5U 8K NVR (network video recorder) for IP CCTV systems, and this model comes with 24TB of storage fitted. It takes up to 16-ch IP camera inputs, supports up to 8-ch 32/24/16 MP IP video inputs with all channels for less than 16 MP, and outputs up to 8K (7680 × 4320)/30Hz over HDMI 1.
Key features
- Up to 16-ch IP camera inputs; up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP
- Up to 256 Mbps incoming bandwidth
- Up to 40 x 1080p@ 30fps decoding capacity
- 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface; 24TB fitted
- 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch IP speakers can be connected
Frequently asked questions
How many cameras does the DS-7716NI-M4/24TB support?
It accepts up to 16-ch IP camera inputs at up to 32 MP resolution, but the NVR supports up to 8-ch 32/24/16 MP IP video inputs; all channels can be used for less than 16 MP.
Does it have PoE ports for the cameras?
No. This model has no PoE; its network connections are 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces.
How much storage is fitted and how far can it be expanded?
This model comes with 24TB fitted. The NVR has 4 SATA interfaces with up to 16 TB capacity for each disk, plus 1 eSATA interface.
Can it output 8K video?
Yes. HDMI 1 supports 8K (7680 × 4320)/30Hz. When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
What power does it need?
It runs from 100 to 240 VAC, 50 to 60 Hz, with consumption of ≤ 15 W (without HDD).
Which video formats does it decode?
H.265+/H.265/H.264+/H.264, with decoding capability from 2-ch@32 MP (30 fps) to 16-ch@5 MP (30 fps).
Technical Details
Specifications
Brand
Hikvision
Model
DS-7716NI-M4/24TB
Manufacturer Part Number (MPN)
DS-7716NI-M4/24TB
IP Video Input
16-ch, up to 32 MP resolution (up to 8-ch 32/24/16 MP IP video inputs)
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (maximum 1080p when HDMI 1 output resolution is 8K)
VGA Output
1920 × 1080/60Hz
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP, all channels for less than 16 MP)
Synchronous Playback
16-ch
Decoding Capability
2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps)
Dual-Stream Recording
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Camera Access Protocol
ONVIF(Version 2.5), RTSP
RAID Type
N/A
SATA
4 SATA interfaces
ESATA
1 eSATA interface
Capacity
Up to 16 TB capacity for each disk
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out
16/9
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9)
DC 12V
12 VDC, 1 A power output
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 × 75 mm
Weight
≤ 5 kg (without HDD, 11 lb.)
Cyber Security
EN 303645
Live View & Playback Stream Encryption
Support : AES128
Obtained Certification
CE, FCC, RoHS, REACH
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7716NI-M4/24TB |
| Manufacturer Part Number (MPN) | DS-7716NI-M4/24TB |
| IP Video Input | 16-ch, up to 32 MP resolution (up to 8-ch 32/24/16 MP IP video inputs) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz (maximum 1080p when HDMI 1 output resolution is 8K) |
| VGA Output | 1920 × 1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF (up to 8-ch 32/24/16 MP, all channels for less than 16 MP) |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps); 10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps); 16-ch@5 MP (30 fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
| RAID Type | N/A |
| SATA | 4 SATA interfaces |
| ESATA | 1 eSATA interface |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 16/9 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device (controlled by alarm output 9) |
| DC 12V | 12 VDC, 1 A power output |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
| Cyber Security | EN 303645 |
| Live View & Playback Stream Encryption | Support : AES128 |
| Obtained Certification | CE, FCC, RoHS, REACH |
