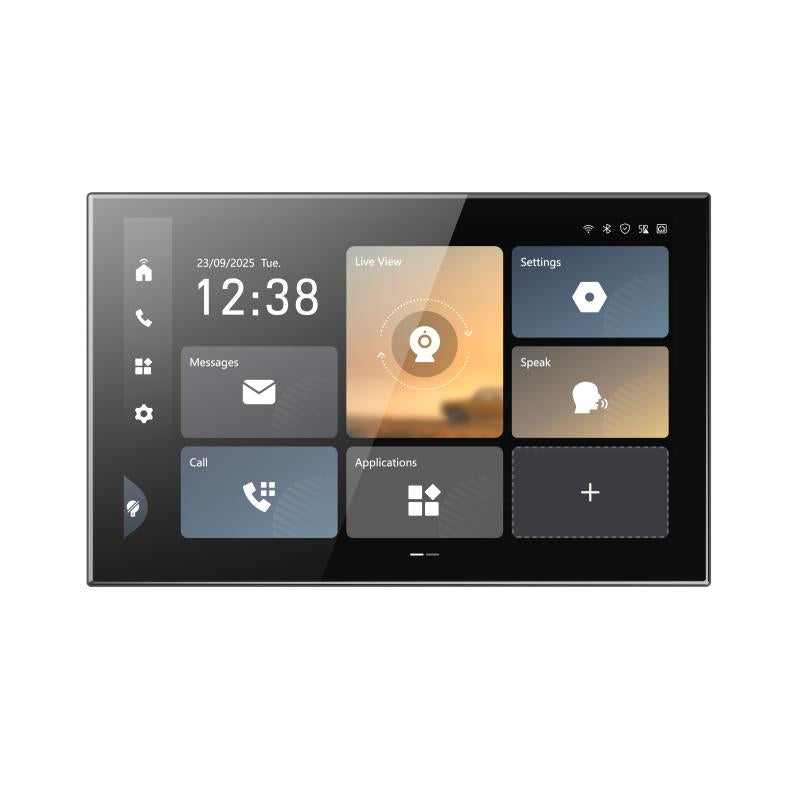

Hikvision DS-KH9570-WTE1/S 9 Series Indoor Station, 10.1-inch Touch Screen, Android 14
About this product
The Hikvision DS-KH9570-WTE1/S is a 9 Series indoor station with a 10.1-inch capacitive IPS touch screen at 1920 ×1200, running Android 14, for indoor surface mounting. It has a linked doorphone capacity of 17, links up to 16 network cameras (up to 4 1080P decoding streams at the same time) and offers unified security management on a single screen.
Key features
- 10.1-inch capacitive touch screen, Colorful IPS, 1920 ×1200 resolution
- Android 14 with a 4-core processor, 4GB RAM and 8 GB ROM
- 2 built-in omnidirectional microphones and 2 built-in loudspeakers (Max. 80dB@50cm), with noise suppression and echo cancellation
- Linked network camera capacity of 16 (up to 4 1080P decoding streams at the same time, H.264&H.265)
- Wi-Fi 6, 2.4 GHz & 5GHz, and BLE 5.0 Bluetooth
- Powered by 12 VDC, 2.5 A or IEEE 802.3at standard PoE, with power consumption of ≤ 24 W
- TF card support (FAT32/exFAT), up to 256 G
- Proximity sensor: distance 50cm, horizontal 25°, vertical 25°
Frequently asked questions
How big is the DS-KH9570-WTE1/S screen?
It has a 10.1-inch Colorful IPS capacitive touch screen with a resolution of 1920 ×1200.
Can it be powered by PoE?
Yes. The power supply is 12 VDC, 2.5 A or IEEE 802.3at standard PoE, with power consumption of ≤ 24 W.
Does it support Wi-Fi?
Yes, Wi-Fi 6 on 2.4 GHz & 5GHz. It also has BLE 5.0 Bluetooth and 1 RJ-45 10/100 Mbps self-adaptive network interface.
How many cameras and door stations can it link to?
It has a linked doorphone capacity of 17 and a linked network camera capacity of 16, with up to 4 1080P decoding streams at the same time.
How is it mounted?
The installation method is surface mounting, and the DS-KABH8380-T table bracket is listed as an accessory.
Can it store pictures or recordings on a memory card?
It supports a TF card (FAT32/exFAT) up to 256 G.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-KH9570-WTE1/S |
| Manufacturer Part Number (MPN) | DS-KH9570-WTE1/S |
| Operation System | Android 14 |
| Processor | 4-core processor |
| RAM | 4GB |
| ROM | 8 GB |
| Screen Size | 10.1-inch |
| Operation Method | Capacitive touch screen |
| Display Type | Colorful IPS |
| Display Resolution | 1920 ×1200 |
| Audio Input | 2 built-in omnidirectional microphone |
| Audio Output | 2 built-in loudspeaker (Max. 80dB@50cm) |
| Audio Compression Standard | G.711A, G.711U, G.722.1, G726, Opus, AAC, AAC_LD |
| Linked Doorphone Capacity | 17 |
| Linked Indoor Extensions Capacity | 16 |
| Linked Network Camera Capacity | 16 (Up to 4 1080P decoding streams at the same time, H.264&H.265) |
| Message Capacity | 200 captured pictures, 200 alarm records, 200 unlock records, 200 temper records |
| Wi-Fi | Wi-Fi 6, 2.4 GHz & 5GHz |
| Bluetooth | BLE 5.0 |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| Alarm Input | 8 (Reserved) |
| Relay | 1 (Reserved), Max. 30VDC 1A |
| TF Card | Support TF card (FAT32/exFAT), up to 256 G |
| Power Supply | 12 VDC, 2.5 A; IEEE 802.3at, Standard PoE |
| Power Supply Output | 12 VDC, 200mA |
| Power Consumption | ≤ 24 W |
| Proximity Sensor | Distance: 50cm, Horizontal: 25°, Vertical: 25° |
| Installation | Surface mounting |
| Weight | Without package: 545 g (1.2 lb), With package: 639g (1.41 lb) |
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | 10% to 90% (no-condensing) |
| Application Environment | Indoor |
| Dimension (W × H × D) | 246.58 mm × 155.76 mm × 23.62 mm (9.71" × 6.13" × 0.93") |
