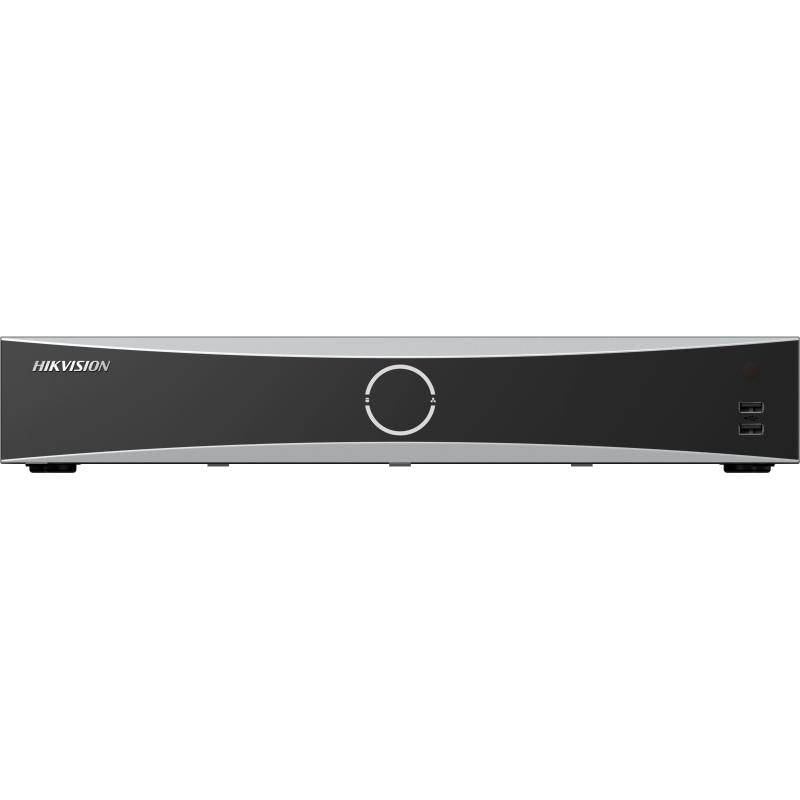

Hikvision DS-7732NXI-K4/16P/VPro AcuSeek K VPro NVR, 32 Channels, 16 PoE Ports
Free Delivery
Save £154.75
About this product
The Hikvision DS-7732NXI-K4/16P/VPro is a 32-ch 1.5U AcuSeek K VPro NVR for IP CCTV systems, with up to 32-ch IP camera inputs and plug & play connection through 16 Power-over-Ethernet (PoE) interfaces. It supports up to 32-ch AcuSeek and AcuSearch function and H.265/H.265+/H.264/H.264+ video formats, and is a recorder only: no hard drive is included.
Key features
- Up to 32-ch IP camera inputs
- 16 PoE interfaces, IEEE 802.3af/at, PoE power ≤ 200W
- Up to 32-ch AcuSeek and AcuSearch function
- Accurate perimeter protection that effectively reduces false alarms
- Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@2 MP decoding capacity
- 4 SATA interfaces, up to 16 TB capacity for each HDD
- Up to 256 Mbps incoming bandwidth
- Automatic cameras connection and configuration
Frequently asked questions
How many cameras can the DS-7732NXI-K4/16P/VPro record?
Up to 32-ch IP camera inputs (IP video input: 32-ch).
Does it have built-in PoE?
Yes. It has 16 RJ-45 10/100 Mbps PoE interfaces to IEEE 802.3af/at, with PoE power ≤ 200W.
Does it come with a hard drive?
No. It is a recorder only, with no hard drive included. It has 4 SATA interfaces, with up to 16 TB capacity for each HDD.
What resolutions can it decode?
Up to 4-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@2 MP decoding capacity. Recording resolution runs up to 12 MP.
What does AcuSeek need from the cameras?
If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 50,000 targets/day.
What monitor outputs does it have?
1-ch HDMI up to 4K (3840 × 2160)/30Hz and 1-ch VGA up to 1920 × 1080/60Hz, as HDMI/VGA independent output.
Technical Details
Specifications
Brand
Hikvision
Model
DS-7732NXI-K4/16P/VPro
Manufacturer Part Number (MPN)
DS-7732NXI-K4/16P/VPro
AI By NVR
Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek
AI By Camera
Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA
Perimeter Protection By NVR
Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB)
Face Picture Comparison
8-ch
Motion Detection 2.0 By NVR
All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
IP Video Input
32-ch
Incoming Bandwidth
256 Mbps
IP Speaker Input
4-ch
Outgoing Bandwidth
100 Mbps
HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode
HDMI/VGA independent output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Audio Input
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format
H.265, H.265+, H.264, H264+
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
16-ch
Remote Connection
128
API
ONVIF (profile S/G); SDK; ISAPI
Network Interface
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
PoE Interface
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Power
≤ 200W
PoE Standard
IEEE 802.3af/at
SATA
4 SATA interfaces
Capacity
Up to 16 TB capacity for each HDD
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out
16/4
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Supply
100 to 240 VAC, 50 to 60Hz
Consumption
≤ 50 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
440 × 391 × 72 mm
Weight
≤ 5 kg (without HDD)
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-7732NXI-K4/16P/VPro |
| Manufacturer Part Number (MPN) | DS-7732NXI-K4/16P/VPro |
| AI By NVR | Facial recognition, perimeter protection, motion detection 2.0, AcuSearch, AcuSeek |
| AI By Camera | Facial recognition, perimeter protection, motion detection2.0, ANPR, VCA |
| Perimeter Protection By NVR | Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB) |
| Face Picture Comparison | 8-ch |
| Motion Detection 2.0 By NVR | All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
| IP Video Input | 32-ch |
| Incoming Bandwidth | 256 Mbps |
| IP Speaker Input | 4-ch |
| Outgoing Bandwidth | 100 Mbps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265, H.265+, H.264, H264+ |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 200W |
| PoE Standard | IEEE 802.3af/at |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each HDD |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 440 × 391 × 72 mm |
| Weight | ≤ 5 kg (without HDD) |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
