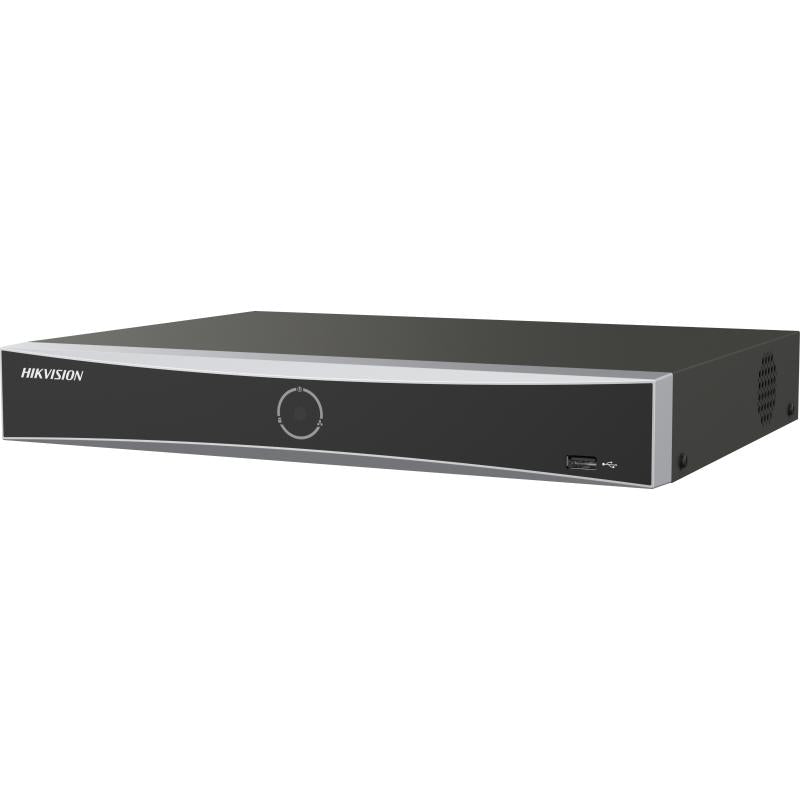

Hikvision DS-7604NXI-K1/4P(E)(STD) AcuSense 4K PoE Network Video Recorder, 4 Channel, 4 PoE Ports

What it does

The DS-7604NXI-K1/4P(E)(STD) is a 4-ch PoE 1U K Series AcuSense 4K NVR. It takes up to 4-ch IP camera inputs, plug & play with 4 Power-over-Ethernet (PoE) interfaces, and offers automatic cameras connection and configuration.

Perimeter protection by NVR uses video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm, on up to 4 MP: 2-ch or 8 MP to 5 MP: 1-ch.

Motion detection 2.0 by NVR covers all channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP), with video analysis for human and vehicle recognition to reduce false alarm.

Facial detection and analytics provide face picture comparison, human face capture and face picture search, with performance of up to 4 MP: 2-ch or 8 MP to 5 MP: 1-ch. There are up to 16 face picture libraries, with up to 50,000 face pictures in total.

Installation notes

The 4 PoE interfaces are RJ-45 10/100 Mbps self-adaptive Ethernet interfaces to IEEE 802.3af/at, with PoE power of ≤ 50 W. The network interface is 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface.

It has 1 SATA interface with up to 16 TB capacity for each HDD.

The power supply is 48 VDC, 1.35 A, with consumption of ≤ 10 W (without HDD). The working temperature is -10 °C to 55 °C, and it measures 319 mm × 240 mm × 48 mm.

For integration it offers ONVIF (profile S/G), SDK and ISAPI.

Day to day

The HDMI output is 1-ch at up to 4K (3840 × 2160)/30Hz, with HDMI/VGA independent output. Synchronous playback covers 4-ch.

It offers efficient playback with AcuSearch technology.

IP speaker input is 4-ch, and two-way audio is 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input). It supports 128 remote connections.
