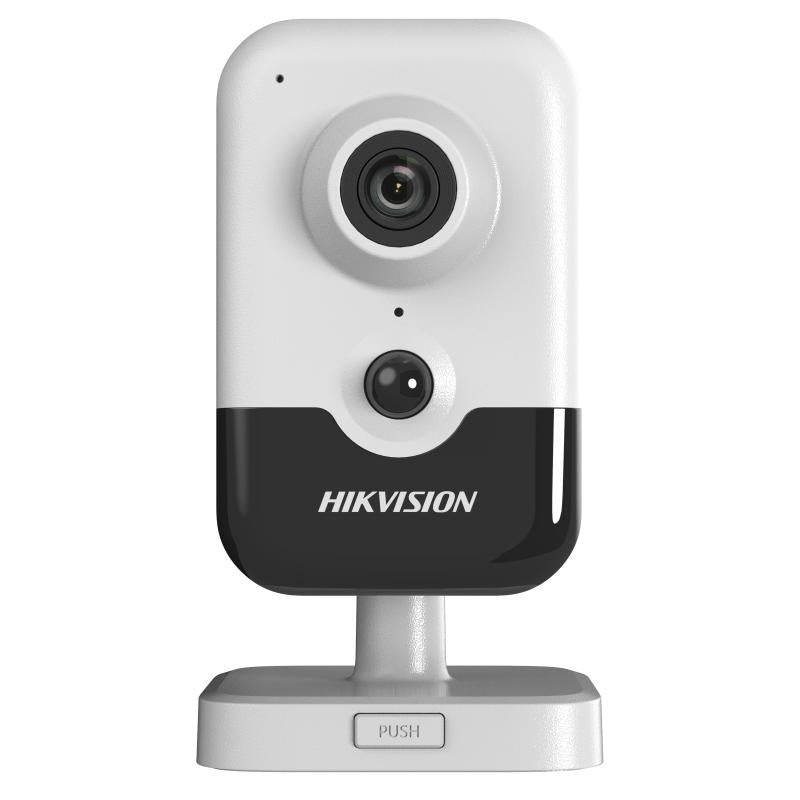

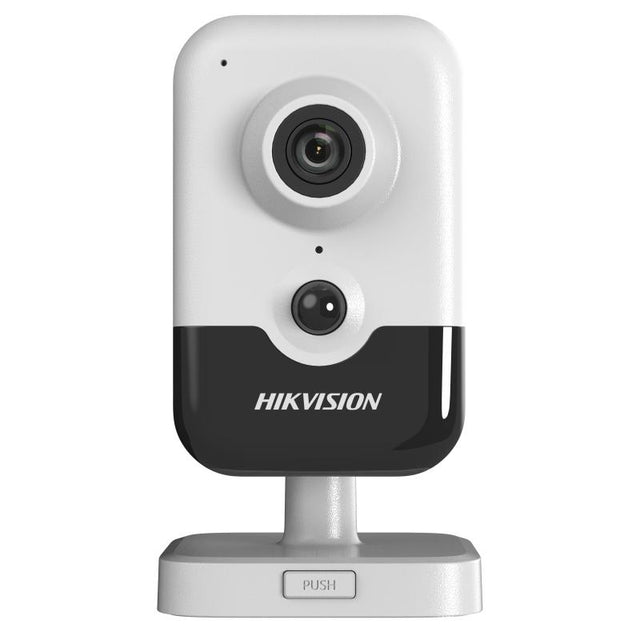

Hikvision DS-2CD2443G2-I(2.8mm) AcuSense Fixed Cube Network Camera, 4MP, 2.8mm Lens
Save £21.33
About this product
The Hikvision DS-2CD2443G2-I(2.8mm) is a 4 MP AcuSense fixed cube network camera with a 2.8 mm lens, built-in two-way audio and a PIR sensor with a detection range of up to 8 m. It focuses on human and vehicle classification based on deep learning, takes a microSD/microSDHC/microSDXC card up to 512 GB, and is powered by 12 VDC or PoE (IEEE 802.3af).
Key features
- 4 MP resolution (2688 × 1520) on a 1/3" Progressive Scan CMOS
- 2.8 mm lens: horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
- IR supplement light up to 10 m (850 nm) with Smart Supplement Light
- PIR detection range up to 8 m, detection angle horizontal 90° and vertical 80°
- Built-in microphone and built-in 1 W speaker for two-way audio
- Motion detection, line crossing and intrusion with alarm triggering by specified target types (human and vehicle)
- 120 dB WDR
- Built-in memory card slot for microSD/microSDHC/microSDXC cards up to 512 GB
Frequently asked questions
Can the DS-2CD2443G2-I(2.8mm) be powered by PoE?
Yes. It takes PoE: IEEE 802.3af, Class 3, max. 6.8 W, or 12 VDC ± 25%, max. 5.8 W through a Ø5.5 mm coaxial power plug.
How far does the night vision reach?
The IR supplement light reaches up to 10 m, with an IR wavelength of 850 nm.
What does the PIR sensor do?
It detects the human body through passive infrared, which is sensitive to body temperature. The detection range is up to 8 m and the detection angle is horizontal 90°, vertical 80°.
Does the camera have two-way audio?
Yes. It has a built-in microphone and a built-in speaker (power: 1 W, max. sound pressure level 91 dB at 10 cm) for built-in two-way audio.
What memory card does it take?
It has a built-in memory card slot that supports microSD/microSDHC/microSDXC cards up to 512 GB.
What is the field of view of the 2.8 mm lens?
Horizontal FOV 104.3°, vertical FOV 55.9° and diagonal FOV 123.8°.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2443G2-I(2.8mm)
Manufacturer Part Number (MPN)
DS-2CD2443G2-I(2.8mm)
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination (2.8 mm)
color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Focal Length & FOV
2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
Aperture (2.8 mm)
F1.6
Lens Mount
M12
DORI (2.8 mm)
D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m
Supplement Light Type
IR
Supplement Light Range
Up to 10 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
Video Bit Rate
32 Kbps to 8 Mbps
WDR
120 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks
Transducer Type
PIR
Detection Angle
Horizontal: 90°, vertical: 80°
Detection Range
Up to 8 m
Built-In Microphone
Yes
Built-In Speaker
Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Client
iVMS-4200, Hik-Connect, Hik-Central
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event
Face detection
Perimeter Protection
Line crossing, intrusion; support alarm triggering by specified target types (human and vehicle)
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Power
12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug; PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
Startup And Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Material
Plastic
Dimension (2.8 mm)
102.9 mm × 65.2 mm × 32.6 mm
Weight
Approx. 120 g
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2443G2-I(2.8mm) |
| Manufacturer Part Number (MPN) | DS-2CD2443G2-I(2.8mm) |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination (2.8 mm) | color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° |
| Aperture (2.8 mm) | F1.6 |
| Lens Mount | M12 |
| DORI (2.8 mm) | D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 10 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Transducer Type | PIR |
| Detection Angle | Horizontal: 90°, vertical: 80° |
| Detection Range | Up to 8 m |
| Built-In Microphone | Yes |
| Built-In Speaker | Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Face detection |
| Perimeter Protection | Line crossing, intrusion; support alarm triggering by specified target types (human and vehicle) |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning |
| Power | 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug; PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W |
| Startup And Operating Conditions | -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Material | Plastic |
| Dimension (2.8 mm) | 102.9 mm × 65.2 mm × 32.6 mm |
| Weight | Approx. 120 g |
