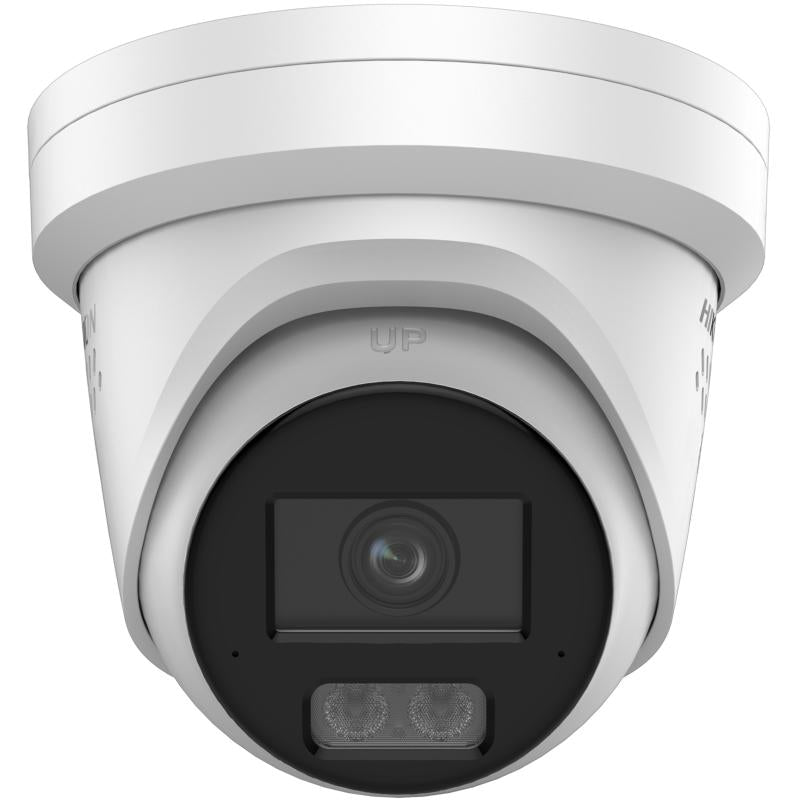

Hikvision DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) Acusense Fixed Turret Network Camera, 16MP, 2.8mm
Free Delivery
Save £55.12
About this product
The Hikvision DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) is a 16MP Acusense fixed turret network camera for IP CCTV systems, with a 2.8 mm lens, an active white strobe light and an audio alarm. It classifies people and vehicles using deep learning, has IR up to 30 m, and is water and dust resistant to IP67.
Key features
- 16MP, max. resolution 4608 × 3456 on a 1/1.8" Progressive Scan CMOS
- 2.8 mm lens: horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2°
- Active strobe light (white light on /SL) and audio alarm
- Person and vehicle classification based on deep learning
- IR up to 30 m (850 nm), with low-light performance Powered by DarkFighter
- 130 dB true WDR for strong back light
- Built-in arrayed dual-mic and Smart PA speaker
- IP67 water and dust resistance and NEMA 4X anti-corrosion design
Frequently asked questions
How far can the DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) see at night?
Its supplement light is IR with a range of up to 30 m (850 nm wavelength). Minimum illumination is Color: 0.0008 Lux @ (F1.6, AGC ON) and B/W: 0 Lux with IR.
What is the field of view of the 2.8 mm version?
Horizontal FOV 94.5°, vertical FOV 69.9° and diagonal FOV 123.2°.
How is the camera powered?
By 12 VDC ± 25%, 1.34 A, max. 16 W, or by PoE: IEEE 802.3at, Class 4, max. 18 W.
What colour is the strobe light on this model?
On the /SL model the flashing light is white, alongside an audio alarm.
Does the camera record to a memory card?
Yes. It has a built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 512 GB.
Can it be installed outdoors?
It is water and dust resistant (IP67) with an anti-corrosion design (NEMA 4X), and its startup and operating conditions are -30 °C to 60 °C with humidity 95% or less (non-condensing).
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD23166G3-IS2UY/SL(2.8mm)(eF)
Manufacturer Part Number (MPN)
DS-2CD23166G3-IS2UY/SL(2.8mm)(eF)
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
4608 × 3456
Min. Illumination
Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Focal Length & FOV (2.8 mm)
2.8 mm, horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2°
Lens Mount
M16
Aperture
F1.6
Depth Of Field (2.8 mm)
2.9 m to ∞
DORI (2.8 mm)
D: 117 m, O: 46 m, R: 23 m, I: 11 m
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Main Stream (50 Hz)
12.5 fps (4608 × 3456) 20 fps (4608 × 2592) 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
Video Bit Rate
32 Kbps to 24 Mbps
Privacy Mask
4 programmable polygon privacy masks
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Face Capture
Yes
Flashing Light
/SL model: White Light
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Client
iVMS-4200,Hik-Connect,Hik-Central
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Speaker
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Built-in Microphone
Arrayed dual-microphone
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Power
12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W
Protection
IP67
Material
Cover: metal, main body: metal
Dimension
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Weight
Approx. 820 g (1.8 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) |
| Manufacturer Part Number (MPN) | DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 4608 × 3456 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2° |
| Lens Mount | M16 |
| Aperture | F1.6 |
| Depth Of Field (2.8 mm) | 2.9 m to ∞ |
| DORI (2.8 mm) | D: 117 m, O: 46 m, R: 23 m, I: 11 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream (50 Hz) | 12.5 fps (4608 × 3456) 20 fps (4608 × 2592) 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 24 Mbps |
| Privacy Mask | 4 programmable polygon privacy masks |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| Face Capture | Yes |
| Flashing Light | /SL model: White Light |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Built-in Microphone | Arrayed dual-microphone |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Protection | IP67 |
| Material | Cover: metal, main body: metal |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Weight | Approx. 820 g (1.8 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
