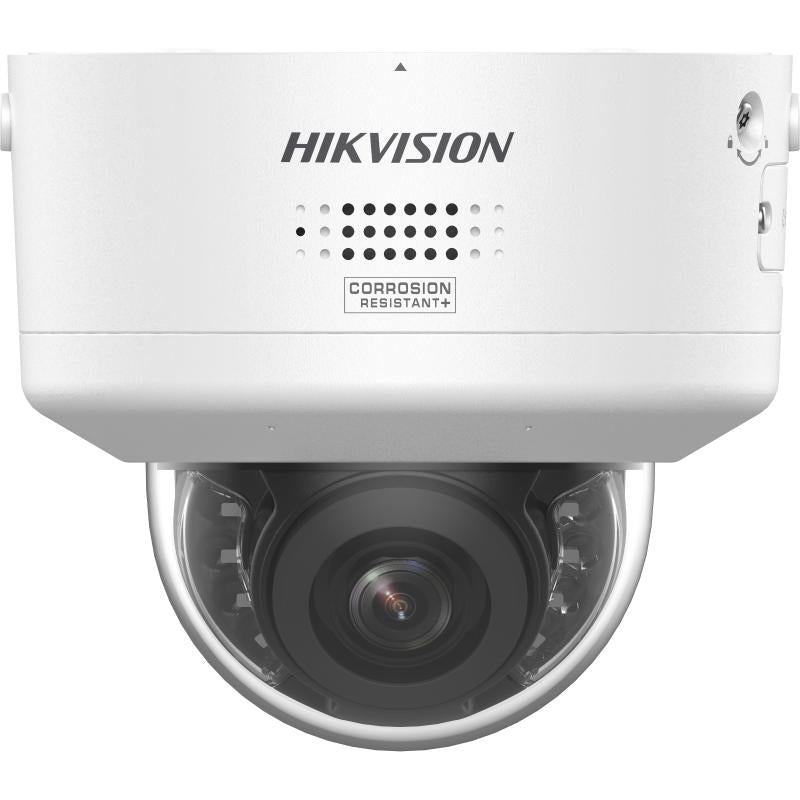

Hikvision DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD Acusense Motorized Varifocal Dome Network Camera, 4MP, 2.8-12mm
Free Delivery
Save £56.31
About this product
The Hikvision DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD is a 4MP Acusense strobe light and audible warning motorized varifocal dome network camera with a 2.8 to 12 mm lens. This /SL model has a white strobe light and audio alarm, motorized pan, tilt, rotate and zoom, and person and vehicle classification based on deep learning.
Key features
- 4MP, 1/1.8" Progressive Scan CMOS, max. resolution 2688 × 1520
- Motorized pan, tilt, rotate and zoom with a 2.8 to 12 mm varifocal lens
- Active strobe light (/SL model: white light) and audio alarm
- IR supplement light up to 40 m, 850 nm
- Person and vehicle classification based on deep learning technology
- Built-in arrayed dual-mic and Smart PA speaker
- 130 dB WDR and low-light performance Powered by DarkFighter
- IP67 water and dust resistant, IK10 vandal resistant, NEMA 4X anti-corrosion design
Frequently asked questions
What colour is the strobe light on the DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD?
White. The /SL model has a white flashing light; the /SRB version has red and blue.
How is the camera powered?
By PoE (IEEE 802.3at, Class 4, max. 18 W) or by 12 VDC ± 25%, 1.3 A, max. 15.6 W.
What is the night-vision range?
The supplement light type is IR, with a range of up to 40 m at an 850 nm wavelength.
Can the view be adjusted after installation?
Yes. Motorized pan, tilt, rotate and zoom allow remote adjustment (max. 1,000 cycles) of pan 0° to 350°, tilt 0° to 85° and rotate 0° to 350°, with a 2.8 to 12 mm lens.
Does it have on-board storage?
Yes. A built-in memory card slot supports microSD/microSDHC/microSDXC cards up to 512 GB.
Is it suitable for outdoor use?
It is water and dust resistant (IP67), vandal resistant (IK10), has an anti-corrosion design (NEMA 4X) and operates from -30 °C to 60 °C.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD
Manufacturer Part Number (MPN)
DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Aperture
F1.2
Angle Adjustment
Remote adjustment (Max. 1,000 cycles); Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350°
DORI
Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m; Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.2 m
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Flashing Light
White Light (/SL model)
Main Stream (50 Hz)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
WDR
130 dB
SNR
≥ 52 dB
Built-In Speaker
1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB
Built-in Microphone
Arrayed dual-microphone
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Face Capture
Yes
API
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Client
iVMS-4200, Hik-Connect, Hik-Central
Power
12 VDC ± 25%, 1.3 A, max. 15.6 W; PoE: IEEE 802.3at, Class 4, max. 18 W
Material
Metal
Dimension
Ø155 mm × 140.4 mm
Weight
Approx. 1230 g
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67, IK10
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD |
| Manufacturer Part Number (MPN) | DS-2CD2746G3-IPTRZS2UY/SL(2.8-12mm)O-STD |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° |
| Aperture | F1.2 |
| Angle Adjustment | Remote adjustment (Max. 1,000 cycles); Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350° |
| DORI | Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m; Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.2 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Flashing Light | White Light (/SL model) |
| Main Stream (50 Hz) | 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Built-In Speaker | 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB |
| Built-in Microphone | Arrayed dual-microphone |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| Face Capture | Yes |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Power | 12 VDC ± 25%, 1.3 A, max. 15.6 W; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Material | Metal |
| Dimension | Ø155 mm × 140.4 mm |
| Weight | Approx. 1230 g |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67, IK10 |
