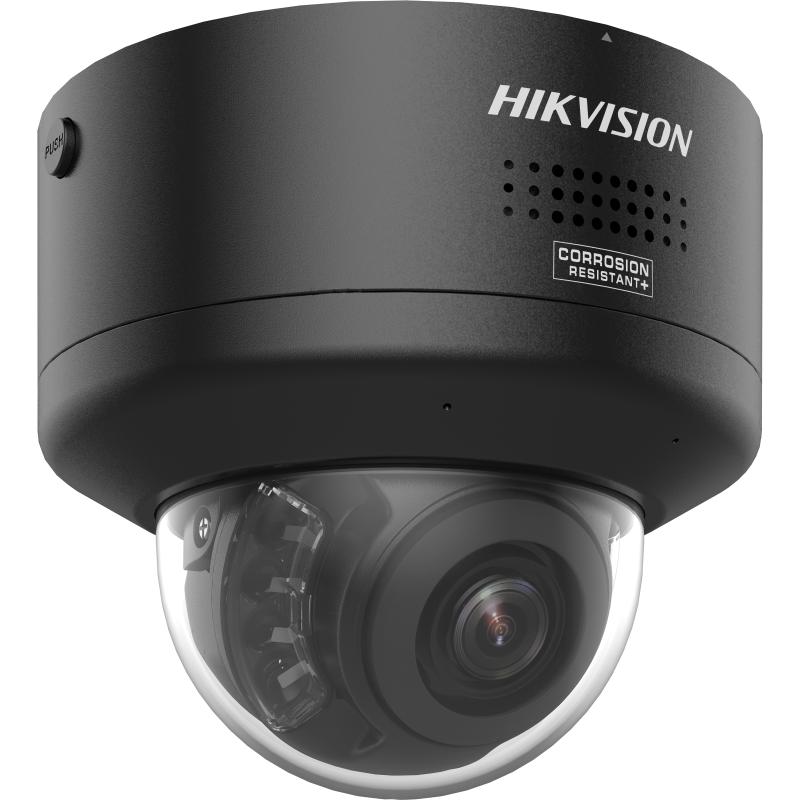

Hikvision DS-2CD2746G3-IPTRZS2UY/SL(2812)OSTDBLACK Acusense Motorized Varifocal Dome Network Camera, 4MP, 2.8–12mm

What it does

This 4MP Acusense dome uses a 1/1.8" Progressive Scan CMOS with a max. resolution of 2688 × 1520 and a motorized 2.8 to 12 mm varifocal lens, giving a horizontal FOV of 114.6° to 41.8°.

Perimeter protection covers line crossing, intrusion, region entrance and region exiting, with alarm triggering by specified target types (human and vehicle). Face capture is also supported.

When an event triggers, linkage actions include audible warning, strobe light flashing, trigger recording, send email and notify surveillance center. On the /SL model the flashing light is white.

Where it is used

The camera is water and dust resistant (IP67), vandal resistant (IK10) and has an anti-corrosion design (NEMA 4X). Startup and operating conditions are -30 °C to 60 °C at humidity 95% or less (non-condensing).

For low light, the IR supplement light reaches up to 40 m, and minimum illumination is Color: 0.0005 Lux @ (F1.2, AGC ON) and B/W: 0 Lux with IR.

Installation notes

Power is 12 VDC ± 25%, 1.3 A, max. 15.6 W via a 2-core terminal block, or PoE: IEEE 802.3at, Class 4, max. 18 W.

Remote angle adjustment (max. 1,000 cycles) covers pan 0° to 350°, tilt 0° to 85° and rotate 0° to 350°, with motorized pan, tilt, rotate and zoom for easy installation and monitoring.

The metal housing measures Ø155 mm × 140.4 mm and weighs approx. 1230 g. Connections include 1 RJ45 10 M/100 M self-adaptive Ethernet port and alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A).

Day to day

Recordings can be stored on a microSD/microSDHC/microSDXC card up to 512 GB in the built-in memory card slot, and the camera works with iVMS-4200, Hik-Connect and Hik-Central.

It supports ONVIF (Profile S, Profile G, Profile T) and ISAPI.
