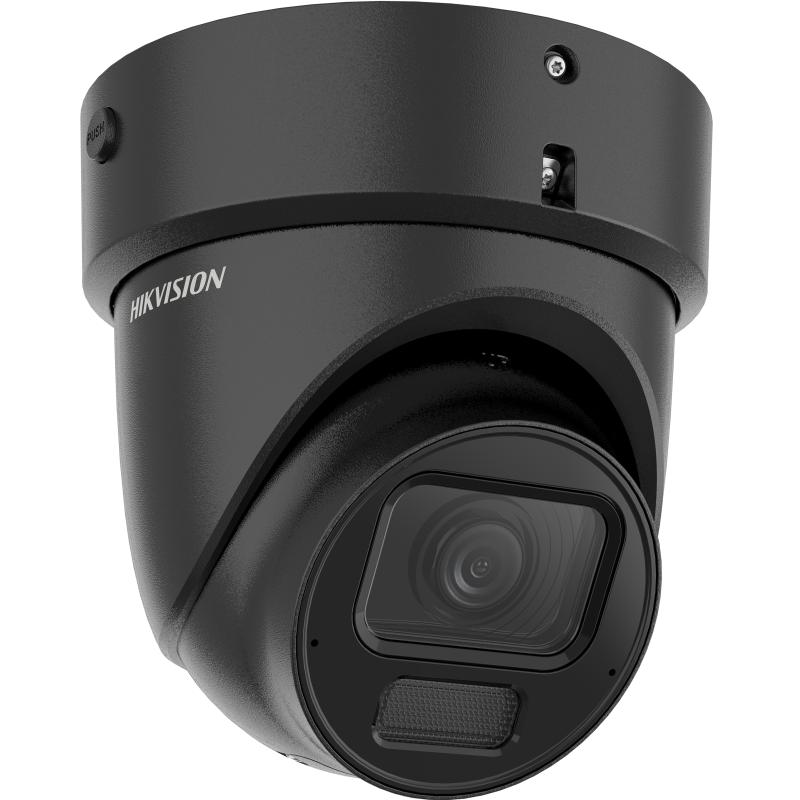

Hikvision DS-2CD2H46G2H-IZSY(2.8-12mm)BLACK Acusense Motorized Varifocal Turret Network Camera, 4MP, 2.8-12mm

What it does

The DS-2CD2H46G2H-IZSY is a 4 MP Acusense motorized varifocal turret network camera with a 1/3" Progressive Scan CMOS and a max. resolution of 2688 × 1520. Its 2.8 to 12 mm motorized varifocal lens gives a horizontal FOV of 105.4° to 34.3°, with an aperture of max. F1.0.

Person and vehicle classification is based on deep learning. Perimeter protection covers line crossing, intrusion, region entrance and region exiting, and supports alarm triggering by specified target types (human and vehicle). Face capture is also supported.

For low light, the IR supplement light reaches up to 40 m at 850 nm. Min. illumination is Color: 0.001 Lux @ (F1.0, AGC ON) and B/W: 0 Lux with IR, and WDR is 120 dB.

Where it is used

The camera is water and dust resistant (IP67), vandal resistant (IK10) and has an anti-corrosion design (NEMA 4X). Startup and operating conditions are -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing).

Installation notes

Power is 12 VDC ± 25%, 0.9 A, max. 10.8 W via a 2-core terminal block with reverse polarity protection, or PoE: IEEE 802.3af, Class 3, max. 12.95 W. The network connection is 1 RJ45 10 M/100 M self-adaptive Ethernet port.

The motorized varifocal lens is designed for easy installation and monitoring, and the socket design is highly waterproof. Angle adjustment is pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°.

Base and cover are metal. The camera measures Ø143.5 mm × 142.7 mm and weighs approx. 1270 g (2.8 lb.).

Day to day

The camera works with the iVMS-4200, Hik-Connect and Hik-Central clients, supports up to 6 channels of simultaneous live view, and offers ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK and ISUP.

Event linkage can upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording and trigger capture. Recordings can go to the built-in memory card slot (up to 512 GB) or to NAS (NFS, SMB/CIFS), with Auto Network Replenishment (ANR).
