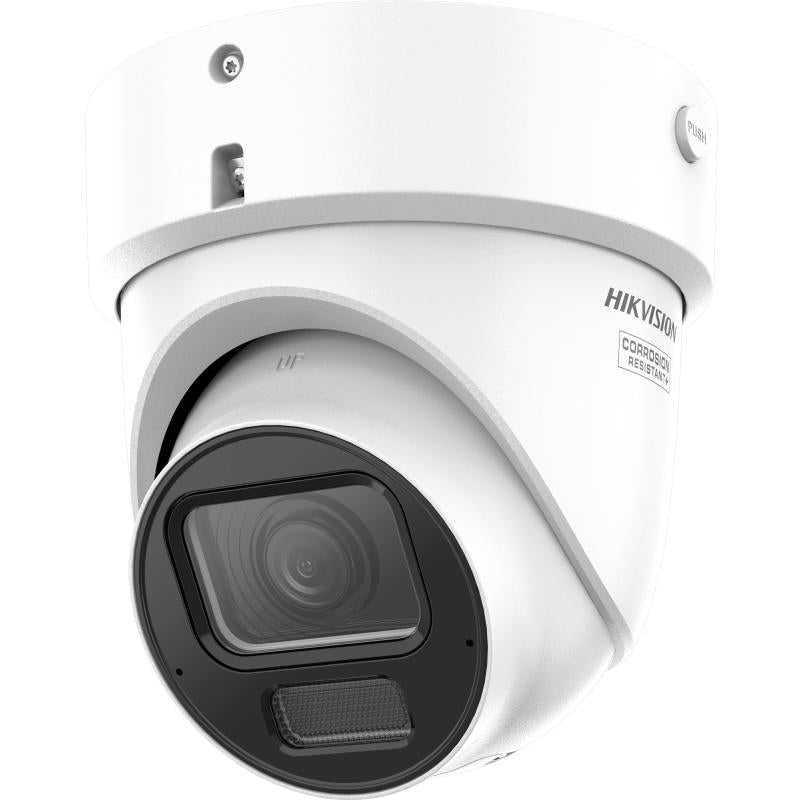

Hikvision DS-2CD2H46G2H-IZSY(2.8-12mm)(eF) Acusense Motorized Varifocal Turret Network Camera, 4MP, Up to 40m IR
About this product
The Hikvision DS-2CD2H46G2H-IZSY(2.8-12mm)(eF) is a 4 MP Acusense motorized varifocal turret network camera with a 2.8 to 12 mm motorised lens and IR night vision up to 40 m. It offers low illumination performance via F1.0 Powered by DarkFighter, person and vehicle classification based on deep learning, and IP67 and IK10 protection.
Key features
- 4 MP resolution, max. 2688 × 1520
- Motorised varifocal lens, 2.8 to 12 mm (horizontal FOV 105.4° to 34.3°)
- IR supplement light up to 40 m, 850 nm
- F1.0 Powered by DarkFighter; colour 0.001 Lux @ (F1.0, AGC ON)
- Perimeter protection: line crossing, intrusion, region entrance and region exiting, with alarm triggering by human and vehicle target types
- 120 dB WDR for clear imaging against strong back light
- IP67 water and dust resistant, IK10 vandal resistant, NEMA 4X anti-corrosion
- On-board microSD/microSDHC/microSDXC card slot, up to 512 GB
Frequently asked questions
How far can the DS-2CD2H46G2H-IZSY see at night?
It has an IR supplement light with a range of up to 40 m, at an IR wavelength of 850 nm.
Can the DS-2CD2H46G2H-IZSY be powered by PoE?
Yes: PoE: IEEE 802.3af, Class 3, max. 12.95 W. It can also run on 12 VDC ± 25%, 0.9 A, max. 10.8 W.
What lens does this camera have?
A motorised varifocal lens of 2.8 to 12 mm, with a horizontal field of view of 105.4° to 34.3°.
Does it have on-board recording?
Yes. It has a built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 512 GB.
Can it tell people from vehicles?
Yes. Motion detection and perimeter protection (line crossing, intrusion, region entrance, region exiting) support alarm triggering by specified target types (human and vehicle).
What protection ratings does the DS-2CD2H46G2H-IZSY have?
It is water and dust resistant (IP67), vandal resistant (IK10) and has an anti-corrosion design (NEMA 4X), with startup and operating conditions of -30 °C to 60 °C, humidity 95% or less (non-condensing).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2H46G2H-IZSY(2.8-12mm)(eF) |
| Manufacturer Part Number (MPN) | DS-2CD2H46G2H-IZSY(2.8-12mm)(eF) |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 105.4° to 34.3°, vertical FOV 56.1° to 19.3°, diagonal FOV 125.8° to 39.4° |
| Aperture | Max. F1.0 |
| DORI | Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m; Tele: D: 108.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| WDR | 120 dB |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Simultaneous Live View | Up to 6 channels |
| Power | 12 VDC ± 25%, 0.9 A, max. 10.8 W; PoE: IEEE 802.3af, Class 3, max. 12.95 W |
| Material | Base: Metal, cover: Metal |
| Dimension | Ø143.5 mm × 142.7 mm (Ø5.7" × 5.6") |
| Weight | Approx. 1270 g (2.8 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
| Anti-corrosion | NEMA 4X |
