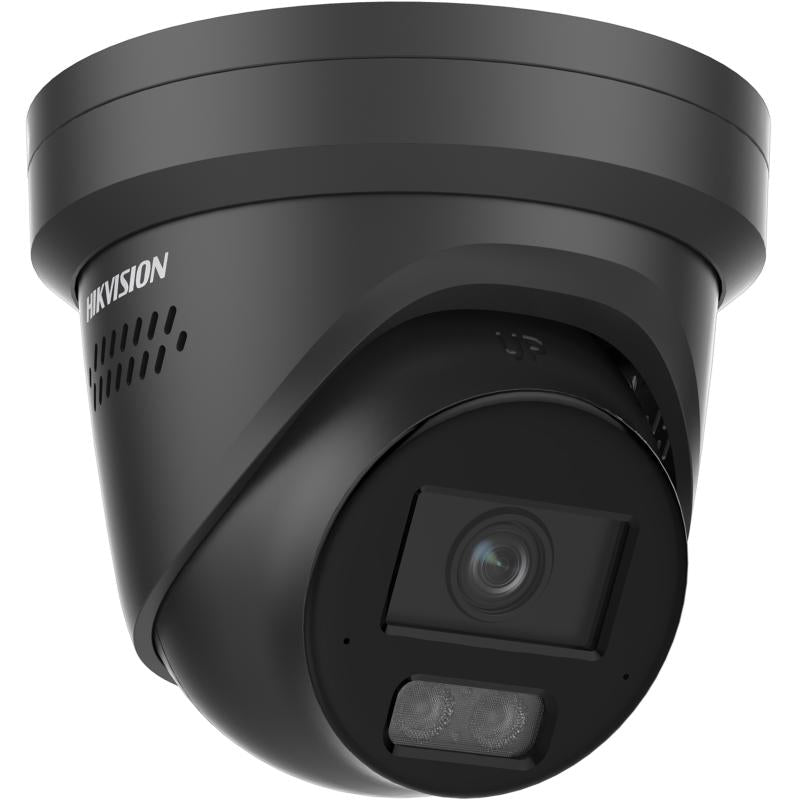

Hikvision DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK Acusense Strobe Light and Audible Warning Turret Camera, 12MP, 2.8mm
Free Delivery
About this product
The Hikvision DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK is a 12MP Acusense fixed turret network camera for IP CCTV systems, with an active white strobe light and audio alarm. It pairs a 2.8 mm lens and 4608 × 2592 maximum resolution with person and vehicle classification based on deep learning, IR up to 30 m and an IP67 metal housing.
Key features
- 12MP, 4608 × 2592 maximum resolution on a 1/1.8" Progressive Scan CMOS
- Active strobe light (/SL: white light) and audio alarm
- Person and vehicle classification based on deep learning
- 2.8 mm fixed lens, horizontal FOV 94.2°
- IR supplement light up to 30 m, 850 nm
- Built-in Arrayed Dual-Mic and Smart PA Speaker
- 130 dB true WDR for scenes with strong back light
- Water and dust resistant (IP67), anti-corrosion design (NEMA 4X)
Frequently asked questions
What colour is the strobe light on this camera?
This is an /SL model, so the active strobe light is white light, used together with the audio alarm.
How much power does the DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK need over PoE?
PoE: IEEE 802.3at, Class 4, max. 18 W. On 12 VDC it draws 1.34 A, max. 16 W.
How far does the night vision reach?
The IR supplement light reaches up to 30 m at 850 nm.
What field of view does the 2.8 mm lens give?
Horizontal FOV 94.2°, vertical FOV 51.1° and diagonal FOV 110.2°.
Does it have on-board storage?
It has a built-in memory card slot that supports microSD/microSDHC/microSDXC cards up to 512 GB, and it can also upload to FTP/NAS.
Which apps and software can view this camera?
Supported clients are iVMS-4200, Hik-Connect and Hik-Central, and it supports ONVIF (Profile S, Profile G, Profile T).
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK
Manufacturer Part Number (MPN)
DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
4608 × 2592
Min. Illumination
Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Focal Length & FOV (2.8 mm)
2.8 mm, horizontal FOV 94.2°, vertical FOV 51.1°, diagonal FOV 110.2°
Lens Mount
M16
Aperture
F1.6
Depth Of Field (2.8 mm)
2.9 m to ∞
DORI (2.8 mm)
D: 117 m, O: 46 m, R: 23 m
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Flashing Light (/SL model)
White Light
Main Stream (50 Hz)
20 fps (4608 × 2592)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
Video Bit Rate
32 Kbps to 24 Mbps
Audio Type
-2U: Mono sound
Environment Noise Filtering
-2U: Yes
Built-In Speaker
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
WDR
130 dB
Image Enhancement
BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask
4 programmable polygon privacy masks
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
Client
iVMS-4200,Hik-Connect,Hik-Central
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Face Capture
Yes
Power
12 VDC ± 25%, 1.34 A, max. 16 W; PoE: IEEE 802.3at, Class 4, max. 18 W
Material
Cover: metal, main body: metal
Dimension
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Weight
Approx. 820 g (1.8 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67
Colour
Black
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK |
| Manufacturer Part Number (MPN) | DS-2CD23126G3-IS2UY/SL(2.8)(eF)/BLACK |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 4608 × 2592 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV 94.2°, vertical FOV 51.1°, diagonal FOV 110.2° |
| Lens Mount | M16 |
| Aperture | F1.6 |
| Depth Of Field (2.8 mm) | 2.9 m to ∞ |
| DORI (2.8 mm) | D: 117 m, O: 46 m, R: 23 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Flashing Light (/SL model) | White Light |
| Main Stream (50 Hz) | 20 fps (4608 × 2592) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 24 Mbps |
| Audio Type | -2U: Mono sound |
| Environment Noise Filtering | -2U: Yes |
| Built-In Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| WDR | 130 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask | 4 programmable polygon privacy masks |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| Face Capture | Yes |
| Power | 12 VDC ± 25%, 1.34 A, max. 16 W; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Weight | Approx. 820 g (1.8 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67 |
| Colour | Black |
