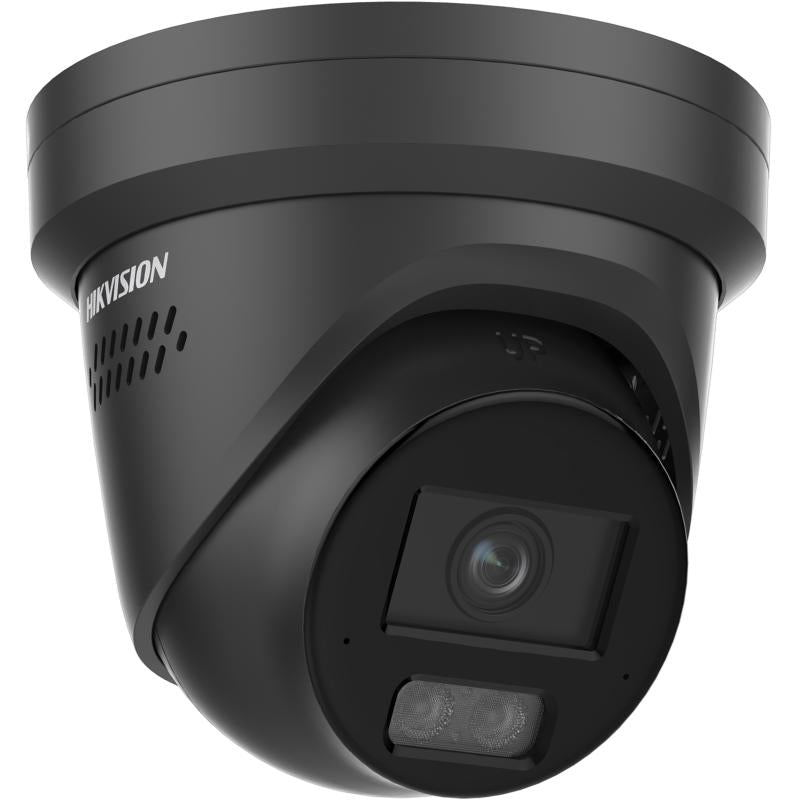

Hikvision DS-2CD23166G3-IS2UY/SL(2.8)(eF)/BLACK Acusense Strobe Light Turret Camera, 16MP, 2.8mm
Free Delivery
Save £55.12
About this product
The Hikvision DS-2CD23166G3-IS2UY/SL(2.8)(eF)/BLACK is a 16MP Acusense fixed turret network camera with an active white strobe light and audio alarm, a 2.8 mm lens and a black finish. It is for IP CCTV systems, using person and vehicle classification based on deep learning to trigger its audible warning and strobe light flashing.
Key features
- 16MP, 4608 × 3456 maximum resolution
- 2.8 mm fixed focal lens, horizontal FOV 94.5°
- Active white strobe light (/SL model) and audio alarm
- IR supplement light up to 30 m
- 130 dB true WDR
- Built-in arrayed dual-mic and Smart PA speaker
- Person and vehicle classification based on deep learning
- Water and dust resistant (IP67), anti-corrosion design (NEMA 4X)
Frequently asked questions
What colour is the strobe light on the DS-2CD23166G3-IS2UY/SL?
White. On the /SL model the flashing light is White Light.
How far does the night vision reach?
The IR supplement light reaches up to 30 m, at an IR wavelength of 850 nm.
Can the camera be powered by PoE?
Yes: PoE: IEEE 802.3at, Class 4, max. 18 W. It can also run on 12 VDC ± 25%, 1.34 A, max. 16 W.
What storage does it support?
A built-in memory card slot for a microSD/microSDHC/microSDXC card up to 512 GB, plus NAS (NFS, SMB/CIFS).
What environmental protection does it have?
It is water and dust resistant (IP67), has an anti-corrosion design (NEMA 4X) and operates from -30 °C to 60 °C.
What field of view does the 2.8 mm lens give?
Horizontal FOV 94.5°, vertical FOV 69.9° and diagonal FOV 123.2°.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD23166G3-IS2UY/SL(2.8)(eF)/BLACK
Manufacturer Part Number (MPN)
DS-2CD23166G3-IS2UY/SL(2.8)(eF)/BLACK
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
4608 × 3456
Min. Illumination
Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Focal Length & FOV (2.8 mm)
2.8 mm, horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2°
Aperture
F1.6
Depth Of Field (2.8 mm)
2.9 m to ∞
DORI detection (2.8 mm)
117 m
DORI observation (2.8 mm)
46 m
DORI recognition (2.8 mm)
23 m
DORI identification (2.8 mm)
11 m
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Main Stream (50 Hz, max. resolution)
12.5 fps (4608 × 3456)
Video Compression (main stream)
H.265/H.264/H.264+/H.265+
WDR
130 dB
SNR
≥ 52 dB
Privacy Mask
4 programmable polygon privacy masks
Audio Type
Mono sound
Built-In Speaker
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Client
iVMS-4200,Hik-Connect,Hik-Central
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Face Capture
Yes
Power
12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection
PoE
IEEE 802.3at, Class 4, max. 18 W
Material
Cover: metal, main body: metal
Dimension
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Weight
Approx. 820 g (1.8 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Flashing Light
/SL model: White Light
Protection
IP67
Colour
Black
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD23166G3-IS2UY/SL(2.8)(eF)/BLACK |
| Manufacturer Part Number (MPN) | DS-2CD23166G3-IS2UY/SL(2.8)(eF)/BLACK |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 4608 × 3456 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2° |
| Aperture | F1.6 |
| Depth Of Field (2.8 mm) | 2.9 m to ∞ |
| DORI detection (2.8 mm) | 117 m |
| DORI observation (2.8 mm) | 46 m |
| DORI recognition (2.8 mm) | 23 m |
| DORI identification (2.8 mm) | 11 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream (50 Hz, max. resolution) | 12.5 fps (4608 × 3456) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Audio Type | Mono sound |
| Built-In Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Face Capture | Yes |
| Power | 12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection |
| PoE | IEEE 802.3at, Class 4, max. 18 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Weight | Approx. 820 g (1.8 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Flashing Light | /SL model: White Light |
| Protection | IP67 |
| Colour | Black |
