Hikvision AE-VC224T-IT(2.8MM) analog camera, 2MP


About this product

Please note: this is a non-returnable item (excluding faulty goods)

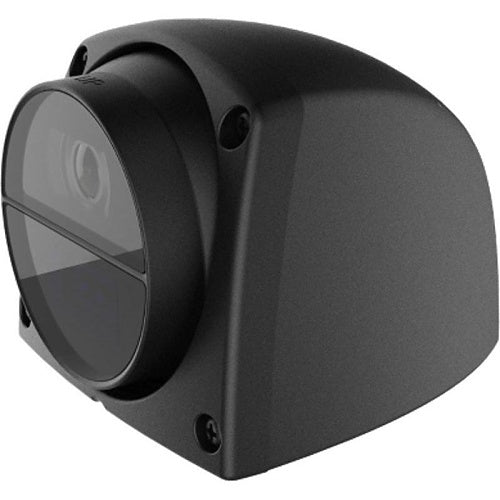

Hikvision AE-VC224T-IT(2.8MM) is an analog camera.

Discover the Hikvision AE-VC224T-IT(2.8MM) Analog Camera, a robust surveillance solution featuring a 1080P 1/2.9” CMOS sensor for clear, high-resolution images. This camera prevents motion image aliasing with its progressive scan CMOS and delivers stunning visuals even in low light conditions with a minimum illumination of 0.1 Lux and IR support. Equipped with a 2.8mm fixed lens and an IP68 rating, it ensures durability and performance in various environments.

Additional features include auto electronic shutter and gain for optimal exposure, shock-proof design, and optional left-right mirroring. Upgrade your security setup with this reliable, high-performance camera.

Key features

  • Adopts progressive scan CMOS to prevent motion image aliasing
  • Supports HD image coaxial output with1080P resolution
  • Min. illumination: 0.1 Lux at (F1.2, AGC ON), 0 Lux with IR
  • Supports auto electronic shutter to adapt to different monitoring environments
  • Supports auto electronic gain and self-adaptation to light
  • IP68
  • Adopts shock-proof design and aviation output plug
  • Supports left-right mirroring (Optional)

If you are matching this to an existing installation, work from the AE-VC224T-IT(2.8MM) part number rather than the description.

Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
AE-VC224T-IT(2.8MM)
Product Type
Analog Camera
Technical information
Connectivity Technology
Wired
Effective resolution
2MP
Field of View
Diagonal, Horizontal, Vertical
Lens Mount Type
M12 (S-Mount)
Lens Type
Fixed
Maximum Frame Rate
25fps
Night Vision
Yes
Night Vision Type
Infrared (IR)
Camera
Image Sensor Type
CMOS
Night Vision Distance
10.00m
Certifications
Ingress protection
IP68
Display & graphics
Maximum video resolution
1920 x 1080
Environmental conditions
Maximum Operating Temperature
75°C
Minimum Operating Temperature
-40°C
Operating Humidity
90%
Exposure
Longest Shutter Speed
1/50,000 Second
Minimum Illumination
0.1000lux
Shortest Shutter Speed
1/50 Second
Lens
Focal Length
2.8mm
Lens Included
Yes
Physical characteristics
Colour
Black
Depth
57.30mm
Durability
Shockproof
Height
65.80mm
Weight
230.00g
Width
74.70mm
Power description
Input Voltage
16V DC
Product information
Length
74.70mm
Miscellaneous
Impact protection
IK10
Attributes
Indoor or outdoor use
Indoor, Outdoor
Input Voltage
16V DC
Weight
230.00g

Specifications

Brand Name Hikvision
Manufacturer Part Number AE-VC224T-IT(2.8MM)
Product Type Analog Camera

Technical information

Connectivity Technology Wired
Effective resolution 2MP
Field of View Diagonal, Horizontal, Vertical
Lens Mount Type M12 (S-Mount)
Lens Type Fixed
Maximum Frame Rate 25fps
Night Vision Yes
Night Vision Type Infrared (IR)

Camera

Image Sensor Type CMOS
Night Vision Distance 10.00m

Certifications

Ingress protection IP68

Display & graphics

Maximum video resolution 1920 x 1080

Environmental conditions

Maximum Operating Temperature 75°C
Minimum Operating Temperature -40°C
Operating Humidity 90%

Exposure

Longest Shutter Speed 1/50,000 Second
Minimum Illumination 0.1000lux
Shortest Shutter Speed 1/50 Second

Lens

Focal Length 2.8mm
Lens Included Yes

Physical characteristics

Colour Black
Depth 57.30mm
Durability Shockproof
Height 65.80mm
Weight 230.00g
Width 74.70mm

Power description

Input Voltage 16V DC

Product information

Length 74.70mm

Miscellaneous

Impact protection IK10

Attributes

Indoor or outdoor use Indoor, Outdoor
Input Voltage 16V DC
Weight 230.00g

Hikvision AE-VC224T-IT(2.8MM) analog camera

Hikvision AE-VC224T-IT(2.8MM) analog camera, 2MP

Who this is for

For the installer — this is the analog camera supplied under Hikvision part number AE-VC224T-IT(2.8MM). Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an analog camera made by Hikvision. The part number AE-VC224T-IT(2.8MM) is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this analog camera is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact analog camera I have been quoted? Check the manufacturer part number AE-VC224T-IT(2.8MM) against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against AE-VC224T-IT(2.8MM) answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
