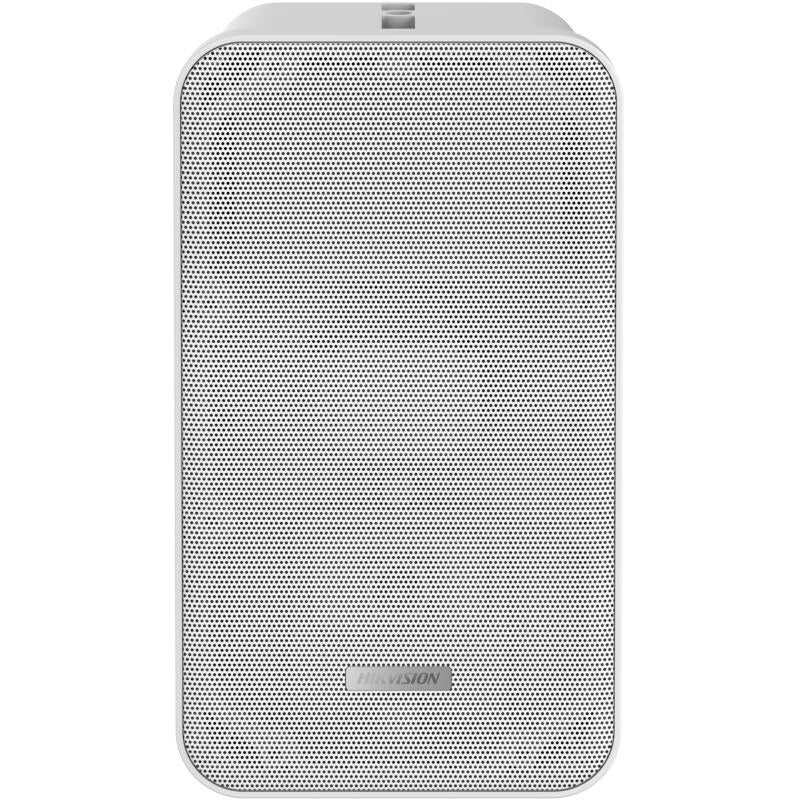

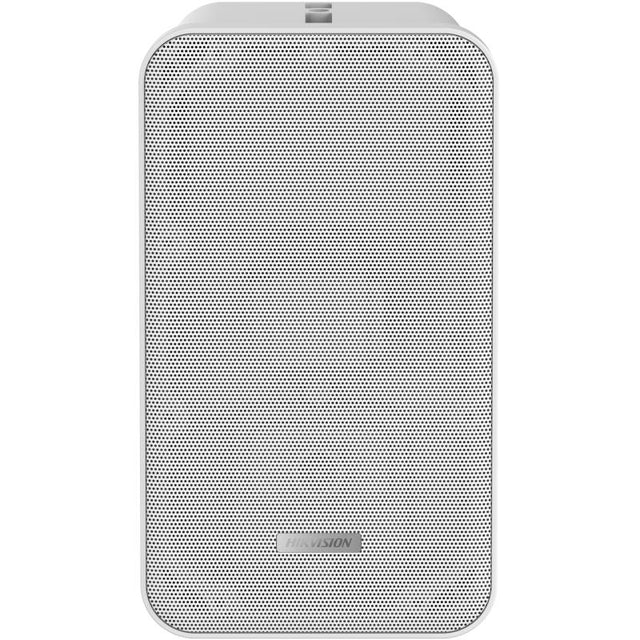

Hikvision DS-QAE0420G1-V Analog Column Speaker, 20W, IP66
About this product
The Hikvision DS-QAE0420G1-V is a 20 W analog column speaker for 100 V constant-voltage audio systems, used for meeting rooms, conferences and other public areas. It has a full frequency 4′′ driver and a 0.75′′ high frequency driver, a frequency response of 100 Hz to 20 kHz and IP66 protection, and it is used together with an amplifier.
Key features
- Rated power 20 W
- Constant voltage input: 100 V via a green terminal block
- Speaker unit: full frequency 4′′ × 1, high frequency 0.75′′ × 1
- Frequency response 100 Hz to 20 kHz
- Max. acoustic pressure 96 dBSPL
- Coverage angle horizontal: 150°, vertical: 160°
- IP66 protection
- Front cover: steel mesh, back cover: plastic
Frequently asked questions
Does the DS-QAE0420G1-V need an amplifier?
Yes. The device should be used together with an amplifier, and it takes a constant voltage input of 100 V.
How loud is the speaker?
Rated power is 20 W, sensitivity (1 m, 1 W) is 89.5 dB ± 3 dB and max. acoustic pressure is 96 dBSPL.
Where is this speaker used?
Hikvision lists it for meeting rooms, conferences and other public areas.
Is it water resistant?
It has IP66 protection, with an operating temperature of -25 °C to 55 °C and operating humidity of ＜90% (No condensation).
How is it mounted?
It comes with L-Bracket × 2 and a screw pack; by using the L-brackets, the installation surface angle can be adjusted.
What is in the box?
Device × 1, Screw pack × 1, L-Bracket × 2 and Regulatory Compliance and Safety Information × 1.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QAE0420G1-V |
| Manufacturer Part Number (MPN) | DS-QAE0420G1-V |
| Audio In | Green end (terminal block), constant voltage input: 100 V, COM |
| Impedance | 8 Ω |
| Rated Power | 20 W |
| Sensitivity (1 m, 1 W) | 89.5 dB ± 3 dB |
| Max. Acoustic Pressure | 96 dBSPL |
| Frequency Response | 100 Hz to 20 kHz |
| Speaker Unit | Full frequency 4′′ × 1, high frequency 0.75′′ × 1 |
| Coverage Angle | Horizontal: 150°, Vertical: 160° |
| Protection | IP66 |
| Material | Front cover: steel mesh, back cover: plastic |
| Dimension | 280 mm × 161.9 mm × 119.8 mm |
| Weight | Approx. 1862.4 g |
| Package Dimension | 340 mm × 306 mm × 175 mm |
| With Package Weight | 2610.2 g |
| Packing List | Device × 1, Screw pack × 1, L-Bracket × 2, Regulatory Compliance and Safety Information × 1 |
| Operating Temperature | -25 °C to 55 °C (-13 °F to 131 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Colour | White |
