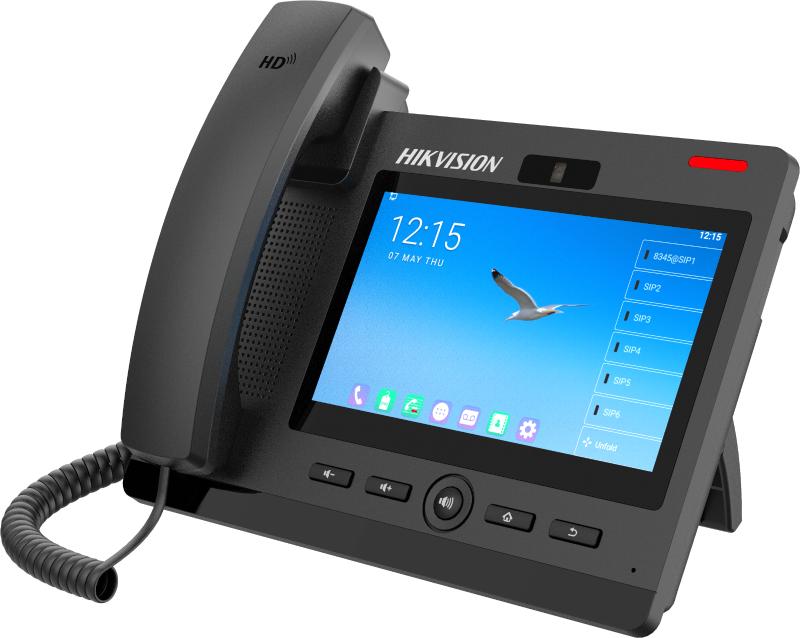

Hikvision DS-KP9301-HE1 Android SIP Phone, 7-inch Touch Screen, 20 SIP Lines

What it does

The DS-KP9301-HE1 handles 20 SIP lines with a SIP hotspot, and places 112 one-touch DSS keys on its 7-inch colour touch screen.

It has an embedded 1080P camera. The H.264 video codec is supported for SIP video calls and RTSP video monitoring, and with a video door station device the phone supports video live view and opening doors.

Audio uses an HD voice microphone and an HD voice speaker (handset/hands-free, 0 ~ 7KHz frequency response), with full-duplex Acoustic Echo Canceller (AEC), Noise Reduction (NR) and Packet Loss Concealment (PLC).

Where it is used

The application environment is indoor, with a working temperature of 0 °C to 45 °C and working humidity of 10% to 95% (no-condensing).

Installation notes

The phone installs on its desktop stand or wall-mounted. Power supply is IEEE802.3af standard PoE or 12 VDC, with power consumption of 3.11~ 10.76 W on PoE and 2.38~8.4 W on an adapter.

It connects through 2 RJ-45 10/100/1000 Mbps self-adaptive ports, and 2 RJ-9 ports take a handset and a headset.

Hikvision lists compatibility with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

Day to day

Contacts are held in a local phonebook of 2000 entries and a remote phonebook (XML/LDAP, 2000 entries), and the call log keeps In/Out/Missed calls, 1000 entries.

A red status indicator light shows calls and message waiting, and 5 keys cover home, return, hand free and volume up/down.
