Hikvision DS-2XC6646G0/P-IZHRS(2.8-12mm) Anti-Corrosion Vari-focal Bullet Camera, 4MP, License Plate Recognition
About this product
The Hikvision DS-2XC6646G0/P-IZHRS(2.8-12mm) is a 316L 4MP anti-corrosion vari-focal bullet camera with a 2.8 to 12 mm lens and license plate recognition built in. Its embedded deep learning based license plate capture and recognition algorithms let the camera alone achieve plate capture and recognition, with blocklist and allowlist support for up to 10,000 records.
Key features
- 4 MP resolution (2688 × 1520) on a 1/1.8" Progressive Scan CMOS
- 2.8 to 12 mm vari-focal lens: horizontal FOV 100.8° to 40.2°
- IR range 60 m at 850 nm
- License plate recognition with blocklist and allowlist: up to 10,000 records
- 316L stainless material with anti-corrosion coating and top-level anti-corrosion protection
- Built-in wiper (-R) removes water and dust on the screen
- Water and dust resistant (IP67), NEMA 4X
- DarkFighter low-light performance and 120 dB WDR
Frequently asked questions
Does the DS-2XC6646G0/P-IZHRS(2.8-12mm) read number plates on its own?
Yes. With embedded deep learning based license plate capture and recognition algorithms, the camera alone can achieve plate capture and recognition, with blocklist and allowlist support for up to 10,000 records.
How far does the IR reach with this lens?
The 2.8 to 12 mm version has an IR supplement light range of 60 m, at an IR wavelength of 850 nm.
Can it be installed near the coast?
It has top-level anti-corrosion protection, for which Hikvision lists coastlines, docks and chemical plants as typical application scenarios. It is also rated NEMA 4X and C5-M.
How is it powered?
By PoE (802.3at, Type 2, Class 4, max. 22 W) or by 12 VDC ± 20%, 1.8 A, max. 22 W on a three-core terminal block.
Does it have a wiper?
Yes. The -R model has a built-in wiper that removes water and dust on the screen, and a heater is also fitted.
What memory card does it take?
A built-in memory card slot supports microSD/microSDHC/microSDXC cards up to 256 GB.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2XC6646G0/P-IZHRS(2.8-12mm) |
| Manufacturer Part Number (MPN) | DS-2XC6646G0/P-IZHRS(2.8-12mm) |
| Product type | 316L 4MP Anti-Corrosion Vari-focal Bullet |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Focal Length & FOV (2.8 to 12 mm) | horizontal FOV 100.8° to 40.2°, vertical FOV 53.3° to 22.5° |
| Aperture (2.8 to 12 mm) | F1.38 to F2.5 |
| Focus | Auto, semi-auto, manual |
| DORI Wide (2.8 to 12 mm) | D: 60 m, O: 23.8 m, R: 12 m, I: 6 m |
| DORI Tele (2.8 to 12 mm) | D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m |
| Supplement Light Type | IR |
| Supplement Light Range (2.8 to 12 mm) | 60 m |
| IR Wavelength | 850 nm |
| WDR | 120 dB |
| Image Stabilization | EIS |
| Video Compression (main stream) | H.265+/H.265/H.264+/H.264 |
| Streams | 5 streams |
| License plate blocklist and allowlist | up to 10,000 records |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) |
| Ethernet Interface | 1 RJ45 self-adaptive Ethernet port (10 M, 100 M, 1000 M) |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Audio | 1 input (line in), 1 output (line out) |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A or max. 110 VAC, 500 mA) |
| Wiegand | /P: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power | 12 VDC ± 20%, 1.8 A, max. 22 W, three-core terminal block |
| PoE | 802.3at, Type 2, Class 4, max. 22 W |
| Material | 316L and anti-corrosion coating |
| Anti-Corrosion Protection | NEMA 4X: NEMA 250-2018; C5-M: 720H neutral salt spray, 480H water condensation |
| Protection | IP67 |

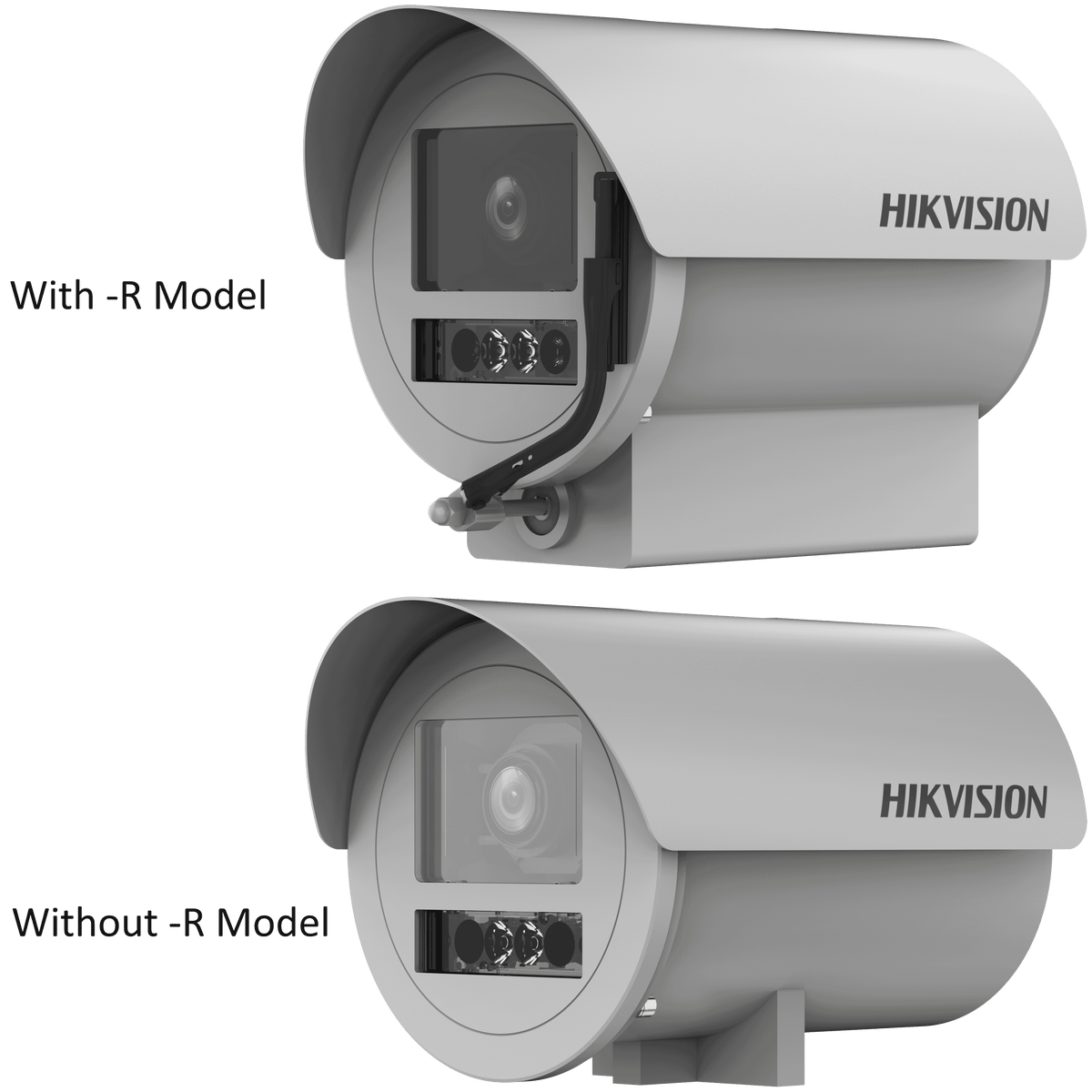

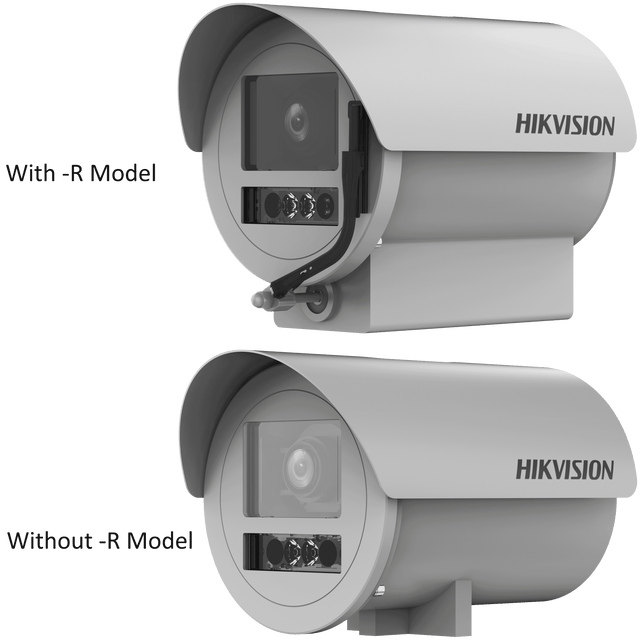

| Wiper | -R: Yes |
| Heater | Yes |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Dimension | With -R: 240.9 mm × 145 mm × 166.6 mm (9.5" × 5.7" × 6.6") |
| Weight | With -R: approx. 4265 g (9.4 lb.) |
