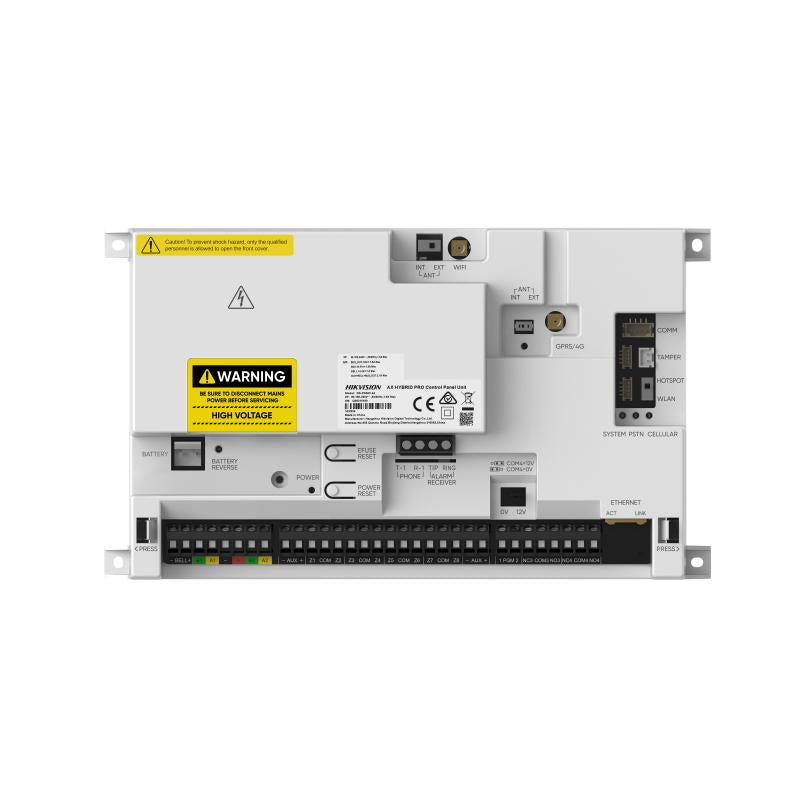

Hikvision DS-PA502-64 AX HYBRID PRO Control Panel Unit, 64 Zones, EN50131 Grade 2
Free Delivery
Save £25.97
About this product
The Hikvision DS-PA502-64 is an AX HYBRID PRO Control Panel Unit for alarm systems, with 64 zones and 64 outputs, 32 areas and a dual bus with up to 32 bus devices per bus. It supports LAN and Wi-Fi, with an optional PSTN/GPRS/4G communicator, dual-path notification to ARC and EN 50131 Security Grade 2, Environmental Class II compliance.
Key features
- 64 zones and 64 outputs, with 8 on-board zones
- 32 areas
- Dual bus (half-duplex RS-485), up to 32 bus devices per bus
- Range per bus up to 500m (up to 7.5km with bus-extenders, up to 4km in loop mode, up to 1km in compatible mode)
- LAN (10/100 Mbps) and Wi-Fi 802.11b/g/n (2.4GHz), with optional PSTN/GPRS/4G communicator
- Dual-path notification to ARC with ARC redundancy, up to 4 ARCs
- 4-ch onboard IPC video verification cache, up to 4 (1080p) video verification network camera channels
- EN 50131 Security Grade 2, Environmental Class II
Frequently asked questions
How many zones does the DS-PA502-64 support?
Max. zones is 64, with 8 on-board zones, and up to 24 bus PIR-cameras. It also supports up to 64 outputs and 32 areas.
Is a backup battery included?
No. The battery pack is 1 × rechargeable sealed lead-acid (SLA) battery, not included by default, of 12VDC, up to 7Ah. Recommended batteries are OUTDO OT7-12 (7Ah) and Yuasa NP7-12FR (7Ah), and battery stand-by is up to 12 hrs.
How does it report alarms to an ARC?
It supports LAN (10/100 Mbps) and Wi-Fi 802.11b/g/n (2.4GHz), with optional GPRS (DS-PC501G), 4G/LTE (DS-PC502S) or PSTN (DS-PM2-P) communicators, dual-path notification to ARC with ARC redundancy, and up to 4 ARCs.
Does it support video verification?
Yes. It has a 4-ch onboard IPC video verification cache, with video verification network camera channels up to 4 (1080p), a 7 seconds clip duration and pre-record of 2 or 5 seconds.
How far can the bus run?
Range per bus is up to 500m, or up to 7.5km with bus-extenders, up to 4km in loop mode and up to 1km in compatible mode. Bus wiring is 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²).
How many users and keyfobs can it have?
1 admin, 1 installer, up to 100 operators and 64 cloud users, plus 64 keyfobs and 100 tags.
Technical Details
Specifications
Brand
Hikvision
Model
DS-PA502-64
Manufacturer Part Number (MPN)
DS-PA502-64
Max. Zones
64
On-board zones
8
Bus PIR-cameras
24
Max. outputs
64
On-board PGM outputs
2
On-board relay outputs
2
Auxiliary Power Output
1
On-board sounder output
1
Area
32
Keypads
16
8-zone expanders
8
8-relay expanders
16
Wireless receivers
8
Power supply units
15
Network camera channels
32
Video verification network camera channels
Up to 4 (1080p)
Video verification clip duration
7 seconds
Pre-record
2 or 5 seconds
Automation scenarios
256
Event log records
4950 including 1000 mandatory in flash memory
Admin
1
Installer
1
Max. operators
100
User (Cloud)
64
Keyfobs
64
Tags
100
Bus ports
2
Bus technology
Half-Duplex RS-485
Bus wiring
4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)
Bus topologies
Daisy Chain, Cascade, Star, Ring
Range per Bus
Up to 500m (Up to 7.5km with bus-extenders, Up to 4km in loop mode, Up to 1km in compatible mode)
Bus-extenders per Bus
Up to 15 pcs, 500m in between
Devices per Bus
32
LAN/Ethernet
10/100 Mbps self-adaptive
Wi-Fi
802.11b/g/n (2.4GHz)
GPRS
Compatible with DS-PC501G (Optional)
4G/LTE
Compatible with DS-PC502S (Optional)
PSTN
Compatible with DS-PM2-P (Optional)
ARCs
4
Signaling protocols
ISUP, Contact ID(PSTN), SIA DC-09, CSV-IP, OTAP
Ack. operation
Pass-through
ATS Categories
SP3, DP2 (with optional GPRS/4G communicator)
3rd party communicator
Compatible with FSK, RDC, IDS modules
PS type
Type A
Quiescent current
130 mA @15VDC (when on battery)
Mains Input
100-240VAC 50/60Hz, 0.3A
Power supply capacity
15.3 VDC 2.5 A (0.5 A dedicated to battery)
Battery pack
1 × rechargeable sealed lead-acid (SLA) battery (not included by default)
Battery capacity
12VDC, up to 7Ah (≥ 5600 mAh in charged state)
Recommended battery
OUTDO OT7-12 (7Ah), Yuasa NP7-12FR (7Ah)
Battery stand-by
Up to 12 hrs
Recharge period
24 hrs to 80% (5600 mAh)
Auxiliary power output capacity
Nominal 14.5VDC 1.5A, range 10.7-15 VDC with up to 120 mV ripple (Vpp)
Bus power output capacity
Nominal 14.5VDC, range 10.7-15 VDC with up to 120 mV ripple (Vpp), max. 20W (shared AUX power output)
Sounder power output capacity
Nominal 14.5VDC 1.0A, range 10.7-15 VDC with up to 120 mV ripple (Vpp)
PGM output
0 VDC with switched (NPN output); max. current 200 mA per output
Relay output
3A 30VDC, 1A 250VAC
Operating temperature
-10°C to 50°C (14°F to 122°F), indoor use only
Storage temperature
-20°C to 60°C (-4°F to 140°F)
Relative humidity
10% ~ 90% non-condensing
Dimension (W × H × D)
231 × 133 × 44 mm
Weight
488 g
Compliance
CE, CB; EN 50131 Security Grade 2, Environmental Class II
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PA502-64 |
| Manufacturer Part Number (MPN) | DS-PA502-64 |
| Max. Zones | 64 |
| On-board zones | 8 |
| Bus PIR-cameras | 24 |
| Max. outputs | 64 |
| On-board PGM outputs | 2 |
| On-board relay outputs | 2 |
| Auxiliary Power Output | 1 |
| On-board sounder output | 1 |
| Area | 32 |
| Keypads | 16 |
| 8-zone expanders | 8 |
| 8-relay expanders | 16 |
| Wireless receivers | 8 |
| Power supply units | 15 |
| Network camera channels | 32 |
| Video verification network camera channels | Up to 4 (1080p) |
| Video verification clip duration | 7 seconds |
| Pre-record | 2 or 5 seconds |
| Automation scenarios | 256 |
| Event log records | 4950 including 1000 mandatory in flash memory |
| Admin | 1 |
| Installer | 1 |
| Max. operators | 100 |
| User (Cloud) | 64 |
| Keyfobs | 64 |
| Tags | 100 |
| Bus ports | 2 |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²) |
| Bus topologies | Daisy Chain, Cascade, Star, Ring |
| Range per Bus | Up to 500m (Up to 7.5km with bus-extenders, Up to 4km in loop mode, Up to 1km in compatible mode) |
| Bus-extenders per Bus | Up to 15 pcs, 500m in between |
| Devices per Bus | 32 |
| LAN/Ethernet | 10/100 Mbps self-adaptive |
| Wi-Fi | 802.11b/g/n (2.4GHz) |
| GPRS | Compatible with DS-PC501G (Optional) |
| 4G/LTE | Compatible with DS-PC502S (Optional) |
| PSTN | Compatible with DS-PM2-P (Optional) |
| ARCs | 4 |
| Signaling protocols | ISUP, Contact ID(PSTN), SIA DC-09, CSV-IP, OTAP |
| Ack. operation | Pass-through |
| ATS Categories | SP3, DP2 (with optional GPRS/4G communicator) |
| 3rd party communicator | Compatible with FSK, RDC, IDS modules |
| PS type | Type A |
| Quiescent current | 130 mA @15VDC (when on battery) |
| Mains Input | 100-240VAC 50/60Hz, 0.3A |
| Power supply capacity | 15.3 VDC 2.5 A (0.5 A dedicated to battery) |
| Battery pack | 1 × rechargeable sealed lead-acid (SLA) battery (not included by default) |
| Battery capacity | 12VDC, up to 7Ah (≥ 5600 mAh in charged state) |
| Recommended battery | OUTDO OT7-12 (7Ah), Yuasa NP7-12FR (7Ah) |
| Battery stand-by | Up to 12 hrs |
| Recharge period | 24 hrs to 80% (5600 mAh) |
| Auxiliary power output capacity | Nominal 14.5VDC 1.5A, range 10.7-15 VDC with up to 120 mV ripple (Vpp) |
| Bus power output capacity | Nominal 14.5VDC, range 10.7-15 VDC with up to 120 mV ripple (Vpp), max. 20W (shared AUX power output) |
| Sounder power output capacity | Nominal 14.5VDC 1.0A, range 10.7-15 VDC with up to 120 mV ripple (Vpp) |
| PGM output | 0 VDC with switched (NPN output); max. current 200 mA per output |
| Relay output | 3A 30VDC, 1A 250VAC |
| Operating temperature | -10°C to 50°C (14°F to 122°F), indoor use only |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative humidity | 10% ~ 90% non-condensing |
| Dimension (W × H × D) | 231 × 133 × 44 mm |
| Weight | 488 g |
| Compliance | CE, CB; EN 50131 Security Grade 2, Environmental Class II |
