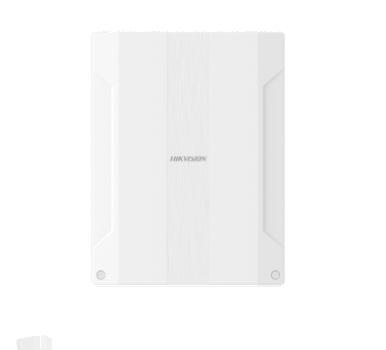

AX-Pro Multi I/O Wireless Transmitter, 16 Inputs, 2 Outputs, 868 MHz, DS-PM1-I16O2-WE
Two-Way Comms
Save £17.67
Hikvision AX Pro Multi I/O Transmitter (Wireless, 16 Inputs, 2 Outputs)
About this product
About this product
The Hikvision DS-PM1-I16O2-WE is a wireless multi I/O transmitter that connects third-party wired detectors, such as outdoor PIRs, to an AX PRO alarm system. It has 16 onboard inputs and 2 outputs, two 12 V power outputs for wired detectors, and 868 MHz two-way wireless communication.
Key features
- 16 onboard inputs and 2 outputs for wired detectors
- Two 12 V power outputs (total 1 A) to power external wired detectors
- 868 MHz two-way wireless, 2GFSK modulation, RF distance 1100 m
- End of line resistance 1k, 2.2k, 4.7k or 8.2k, or NO/NC
- Front and rear tamper
- 100-240 VAC, 30 W supply, with space for a backup battery compatible with 12 V 7 Ah (battery life span up to 36 hours)
- Indicators for power, fault and signal strength
- Wall mounting; 261 × 199 × 86.4 mm, 975 g without battery
Frequently asked questions
What does the DS-PM1-I16O2-WE connect to AX PRO?
Third-party wired detectors, such as outdoor PIRs.
How many inputs and outputs does it have?
16 onboard inputs and 2 outputs.
Can it power wired detectors?
Yes. It has two 12 V power outputs, total 1 A.
What backup battery does it take?
A battery compatible with 12 V 7 Ah. The battery life span is up to 36 hours.
What is the wireless range?
The RF distance is 1100 m, at 868 MHz with two-way communication.
Which end of line resistances does it support?
1k, 2.2k, 4.7k and 8.2k, or NO/NC.
-
Download
- DS-PM1-I16O2-WE Spec Sheet
- User Manual
Technical Details
Specifications
Serial port
1
Battery port
1, 12 VDC input
Tamper-Proof
Front and rear
Alarm input
16
Alarm output
2
Power Output
2 (12 V, total1 A)
Operation humidity
10% to 90%
Operation temperature
–10 to 40°C
Battery life span
Up to 36 hours
RF frequency
868 MHz
RF method
Two-way communication
Indicator
3: Power(Green), Fault(Amber), Signal Strength(Green/Red)
Installation method
Wall Mounting
Dimension(W × H × D)
261 × 199 × 86.4 mm
Shell material
Plastic
Color
White
Weight
975 g (without battery)
End of Line Resistance
1k, 2.2k, 4.7k, 8.2k, NO/NC
Battery type
Compatible with 12 V 7 Ah
Power supply
100-240 VAC, 30 W
RF modulation
2GFSK
RF distance
1100 m
Specifications
| Serial port | 1 |
|---|---|
| Battery port | 1, 12 VDC input |
| Tamper-Proof | Front and rear |
| Alarm input | 16 |
| Alarm output | 2 |
| Power Output | 2 (12 V, total1 A) |
| Operation humidity | 10% to 90% |
| Operation temperature | –10 to 40°C |
| Battery life span | Up to 36 hours |
| RF frequency | 868 MHz |
| RF method | Two-way communication |
| Indicator | 3: Power(Green), Fault(Amber), Signal Strength(Green/Red) |
| Installation method | Wall Mounting |
| Dimension(W × H × D) | 261 × 199 × 86.4 mm |
| Shell material | Plastic |
| Color | White |
| Weight | 975 g (without battery) |
| End of Line Resistance | 1k, 2.2k, 4.7k, 8.2k, NO/NC |
| Battery type | Compatible with 12 V 7 Ah |
| Power supply | 100-240 VAC, 30 W |
| RF modulation | 2GFSK |
| RF distance | 1100 m |
