Hikvision DS-PWA96-Kit-WE AX PRO Wireless Alarm Kit, 868MHz, 96 Zones
About this product

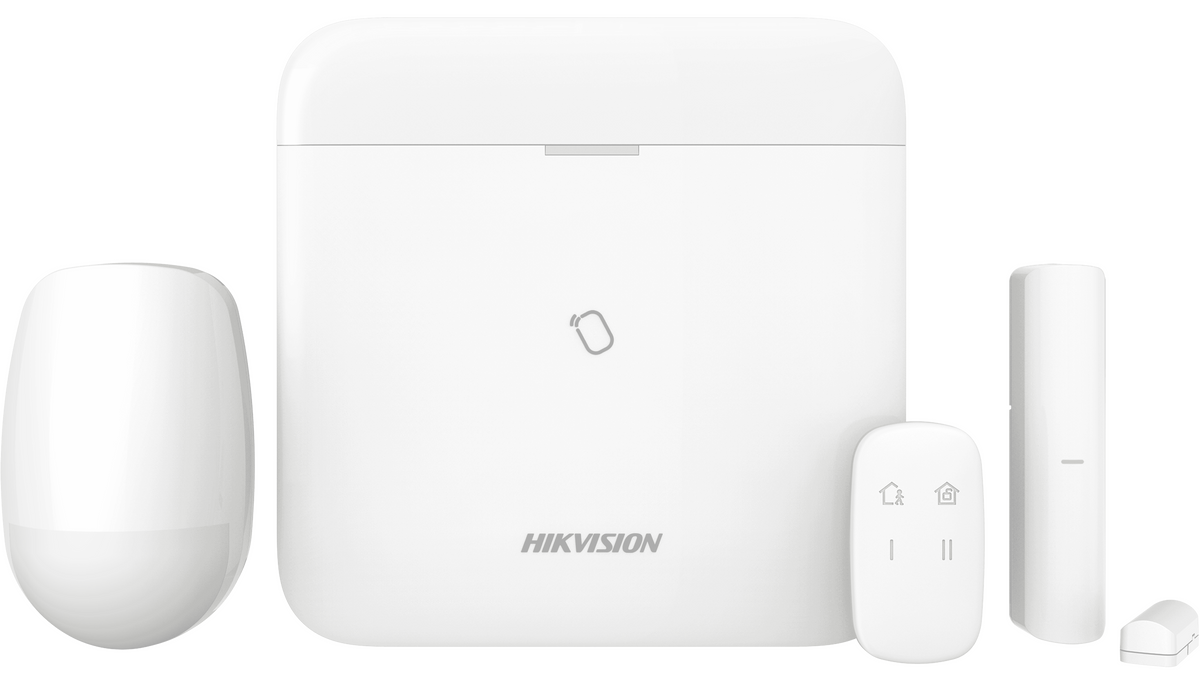

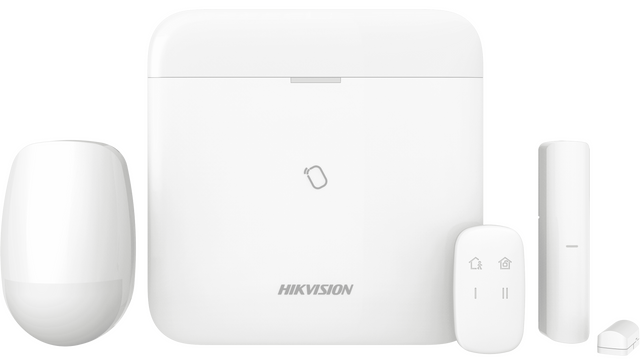

The Hikvision DS-PWA96-Kit-WE is an AX PRO kit (868MHz) for wireless alarm systems: a DS-PWA96-M-WE control panel together with a DS-PKF1-WE, a DS-PDP15P-EG2-WE and a DS-PDMC-EG2-WE. The panel handles 96 zones (up to 48 PIRCAMs) across 32 areas, with two-way wireless communication, wired network, Wi-Fi and 3/4G on board.
Key features
- Kit contents: DS-PWA96-M-WE x 1, DS-PKF1-WE x 1, DS-PDP15P-EG2-WE x 1, DS-PDMC-EG2-WE x 1
- 96 zones (up to 48 PIRCAMs) and 32 areas
- Two-way wireless communication at 868Mhz, with Frequency Hoping 128 AES Encryption
- Wired network, Wi-Fi and 3/4G on board, with a dual SIM slot
- Away/Stay arm modes, with automatic arm/disarm timers
- Built-in loudspeaker, voice prompt and tag reader
- ARC protocol: SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
- Built-in power supply and on-board Li battery, up to 12 hours at normal temperature
Frequently asked questions
What comes in the DS-PWA96-Kit-WE?
The kit contains DS-PWA96-M-WE x 1, DS-PKF1-WE x 1, DS-PDP15P-EG2-WE x 1 and DS-PDMC-EG2-WE x 1.
How many zones and areas does the AX PRO kit panel support?
96 zones (up to 48 PIRCAMs) and 32 areas.
What radio frequency does it use?
868Mhz, with two-way wireless communication and Frequency Hoping 128 AES Encryption.
How does the panel connect for remote access and alarm signalling?
It supports wired network, Wi-Fi and 3/4G on board, with a dual SIM slot. ARC protocols are SIA DC09 (SIA level 2, Contact ID), ISUP and ISAPI (SDK).
How long does the panel battery last?
The built-in on-board Li battery lasts up to 12 hours at normal temperature; battery working time can be significantly reduced at low temperatures.
How is the system programmed?
With Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud. An installer app for programming and a web server for maintenance (offline configuration) are supported.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PWA96-Kit-WE |
| Manufacturer Part Number (MPN) | DS-PWA96-Kit-WE |
| Kit contents | DS-PWA96-M-WE x 1, DS-PKF1-WE x 1, DS-PDP15P-EG2-WE x 1, DS-PDMC-EG2-WE x 1 |
| Zones | 96 (up to 48 PIRCAMs) |
| Area | 32 |
| Tag | 48 |
| Onboard video clips | 4 |
| Installer | 1 |
| User | 46 |
| Admin | 1 |
| Voice Prompt | Supported |
| Loudspeaker built in | Supported |
| Tag reader built in | Supported |
| Memory Log stored | 5000 |
| Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
| Firmware upgrade | APP/Web Portal |
| Arm modes | Away/Stay |
| Automatic Arm/Disarm Timers | Supported |
| Forced Arming with Open Zones | Supported |
| Diagnostics via the APP or Web | Supported |
| ARC protocol | SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) |
| Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) | Supports video verification and remote control |
| User APP for operating | Supported |
| Installer APP for programming | Supported |
| Web server for maintenance (offline configuration) | Supported |
| RS232 output | Supported |
| SIM slot | Dual |
| Two-way Wireless Communication | Support |
| RF Frequency | 868Mhz |
| Wireless Security | Frequency Hoping 128 AES Encryption |
| 3/4G on board | Supported |
| Wired network | Supported |
| Wi-Fi Standard | Supported |
| LEDs Status | Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
| Power supply (control panel) | Built in power supply |
| Battery type (control panel) | Built in on board Battery Li |
| Battery life span (control panel) | Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
| Operation temperature (control panel) | -10 °C to +55 °C |
| Shell material (control panel) | Plastic |
| Keyfob | 48 |
| Wireless sounder | 6 (3 internal+3 External) |
| Keypad | 8 (Including Tag reader) |
| Wireless Repeater | 4 |
| Multi Transmitter | 6 |
| PIR Cam | Supported |
