Introduction: Meet the Hikvision DS‑PK1‑LT‑WE AX‑Pro Wireless LCD Keypad

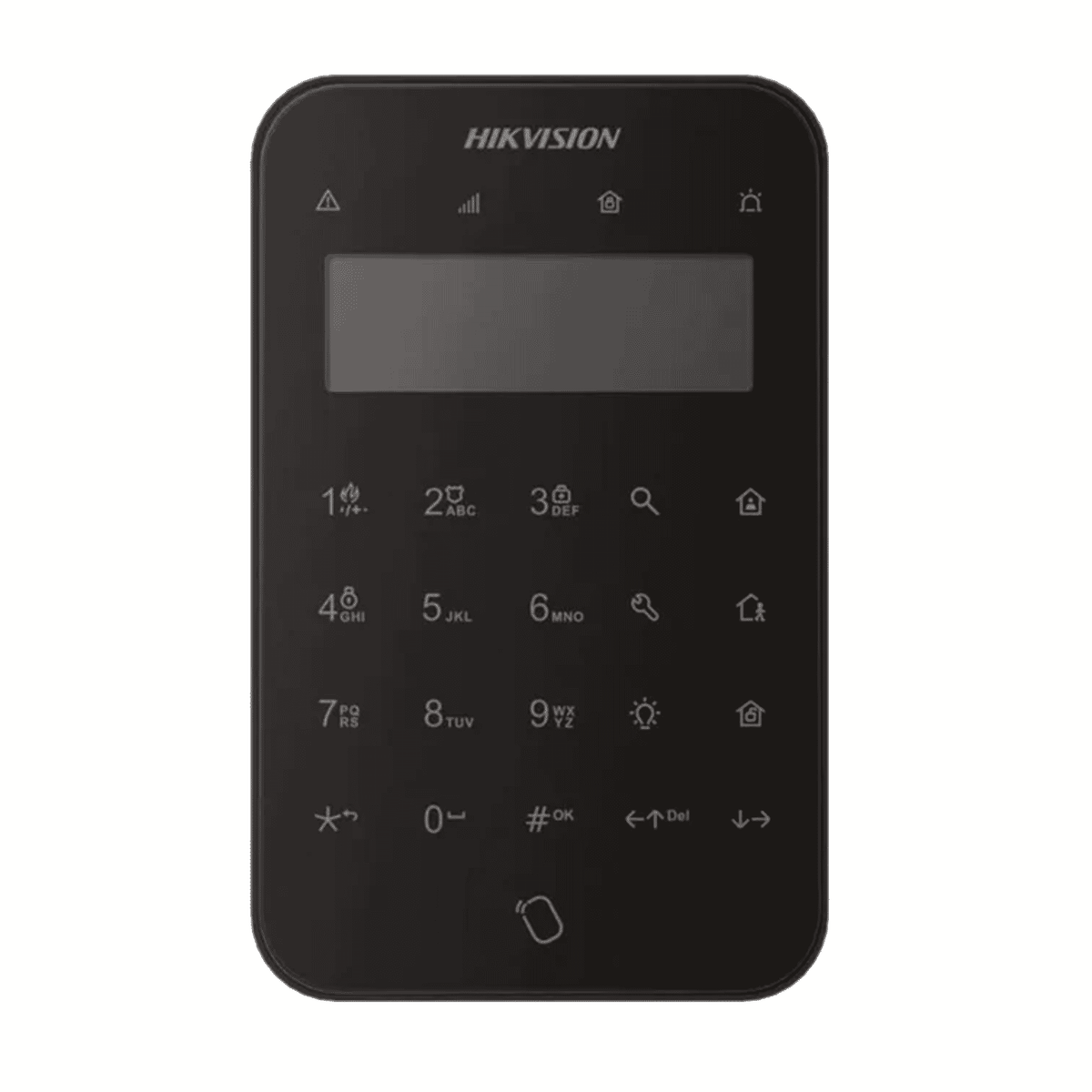

Hikvision DS‑PK1‑LT‑WE — AX‑Pro Wireless LCD Keypad (Black)is a battery‑powered user interface and arming device designed for the AX‑Pro intruder alarm ecosystem. Combining a clear LCD, backlit numeric touch keys, LED status indicators, an integrated 13.56 MHz RFID/tag reader and dedicated one‑touch panic, fire and medical keys, this keypad is built for convenience, accessibility and flexible installation. It communicates over Hikvision's Tri‑X two‑way wireless technology at 868 MHz, delivering long open‑area range and reliable two‑way signalling for modern residential and light commercial alarm systems.
- 868 MHz Tri‑X two‑way wireless with up to 1,200 m open‑area range.
- Large LCD with LED status indicators and backlit numeric touch keys for day/night use.
- Built‑in 13.56 MHz RFID/tag reader for quick, card/tag based arming and disarming.
- Dedicated one‑touch fire, panic and medical keys for fast emergency signalling.
- Front and rear tamper protection, buzzer feedback and wall‑mountable design.
- Battery powered (4×CR123) with standby life up to ~2 years in typical use.
The DS‑PK1‑LT‑WE sits as a mid‑range wireless keypad option for AX‑Pro systems—priced to appeal to both professional installers and tech‑savvy DIYers.
Detailed specifications and practical benefits
Understanding the DS‑PK1‑LT‑WE starts with its specification set and how each item translates into a real‑world advantage.
- RF frequency & modulation:868 MHz with 2GFSK modulation offers solid penetration and licence‑free operation in many regions. Two‑way Tri‑X technology supports status feedback and acknowledgment, improving reliability over simple one‑way transmitters.
- Range:Up to 1,200 m in open areas. This long range gives installers flexibility to place the keypad where users expect it to be, even on larger properties or sites with line‑of‑sight to the main hub.
- Battery: 4×CR123:These readily available cells provide compact power with reliable cold‑weather performance.
- Standby life:Up to ~2 years in typical usage scenarios. Long battery life reduces maintenance visits and user hassle, especially in installations where mains power is not available or desirable.
- Large LCD & backlit touch keys:Clear visual feedback and backlit numeric entry improve usability in dim environments and for older users or those with limited dexterity.
- RFID tag reader:The integrated 13.56 MHz reader enables quick, contactless arming/disarming without entering codes—handy for family members, employees or frequent users.
- Dedicated emergency keys:One‑touch fire, panic and medical keys let users summon help quickly and reliably, which is critical in real emergencies.
- Tamper protection:Front and rear tamper switches help detect removal or forced entry attempts on the device itself, enhancing overall system integrity.
- Operating conditions:Rated for -10 °C to +55 °C and 10%–90% relative humidity, suitable for typical indoor residential and commercial spaces.
- Dimensions & weight:Compact footprint (174.63 × 109.62 × 25.25 mm) and lightweight construction make it unobtrusive and easy to site on corridors, entryways or reception desks.
The keypad supports local and remote configuration via the AX‑Pro app, but installations should comply with local regulations and, where required, be completed by a qualified installer.
Use cases and scenarios where the DS‑PK1‑LT‑WE excels
This keypad is versatile and well‑suited to several common installation scenarios:
- Wall‑mounted near primary exits for quick arming/disarming on the way in/out.
- RFID tags for child‑friendly arming and disarming—no code memorisation needed.
- Long battery life reduces the need for frequent maintenance visits.
- Staff can use RFID tags to arm/disarm without sharing codes; dedicated panic/medical keys add a safety layer for lone workers or retail staff.
- Two‑way wireless and extended range make it simple to add a keypad where running cable would be impractical or costly.
- Because the unit is battery powered and wireless, it installs quickly in temporary settings (pop‑up shops, exhibitions) and retrofit projects where minimal disruption is required.
- Tamper detection and secure communication help maintain reliability even in non‑permanent setups.
How it compares to other keypad options
When evaluating alarm keypads, buyers often weigh wired vs wireless, feature sets and integration with broader systems. The DS‑PK1‑LT‑WE positions itself as a flexible wireless option with several strengths and a few trade‑offs.
- Two‑way Tri‑X communication provides status feedback and acknowledgements that simple one‑way devices don’t offer, improving reliability and diagnostics.
- Built‑in 13.56 MHz RFID reader eliminates the need for a separate reader accessory, simplifying installation and reducing cost.
- Dedicated emergency keys add a higher level of on‑device safety control than many minimalist keypads.
- Wireless installation is faster and avoids trenching or surface wiring, making it preferable for retrofits or properties where aesthetics matter.
- Wired keypads may offer continuous power and sometimes richer feature sets, but they require cabling and professional installation—wireless balances convenience with robust features for many users.
Other wireless keypad models on the market may offer similar LCDs or RFID support, but differences often come down to wireless protocol robustness, range and ecosystem integration. The Hikvision AX‑Pro keypad benefits from long open‑area range (up to 1,200 m) and tight integration with the AX‑Pro app, which can be decisive for customers already committed to the Hikvision platform. Buyers should compare ecosystem compatibility, local support and certification status when choosing between brands.
Conclusion: Why choose the Hikvision DS‑PK1‑LT‑WE?
The Hikvision DS‑PK1‑LT‑WE AX‑Pro Wireless LCD Keypad is a strong choice for anyone seeking a capable, feature‑rich user interface for AX‑Pro alarm systems. Its long wireless range, two‑way communication, integrated RFID reader and dedicated emergency keys combine to offer both convenience and safety. Battery operation and tamper protection make it ideal for retrofit and temporary installations, while clear on‑device feedback and app configurability support both everyday users and professional installers.
Before purchase, verify local certification requirements and ensure compatibility with your AX‑Pro controller. If you want a balance of performance, flexibility and user‑friendly features at a mid‑range price point, the DS‑PK1‑LT‑WE is well worth considering for residential and small commercial alarm projects.
