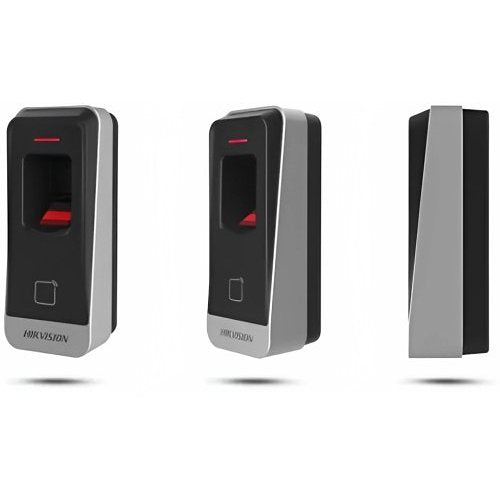

Hikvision DS-K1201AMF biometric card reader access device, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-K1201AMF is a biometric card reader access device from the Pro Fingerprint Readers range.
DS-K1201 Series Fingerprint and card reader, designed with a 32 bit high-speed processor, contains the ?????? ?n??????n? ?????n???n module. It communicates with access controller via the RS-485 protocol. And a built-in tamperproof module helps to protect the card reader from malicious damage.
Key features
- A group of messy code encrypted data for the security of fingerprint storage
- Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
- Supports M1 card reading
- Card induction distance is 30mm to 100mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
If you are matching this to an existing installation, work from the DS-K1201AMF part number rather than the description.
-
Download
- DS-K1201AMF — User Manual
Specifications
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-K1201AMF |
| Product Series | Pro Fingerprint Readers |
| Product Type | Biometric Card Reader Access Device |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Host Interface | RS-485 |
| Identification Method | Contactless Card (RFID/Proximity), Fingerprint |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 62.00mm |
| Height | 44.00mm |
| Width | 132.00mm |
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Indoor or outdoor use | Outdoor |
|---|
Hikvision DS-K1201AMF biometric card reader access device, Silver
