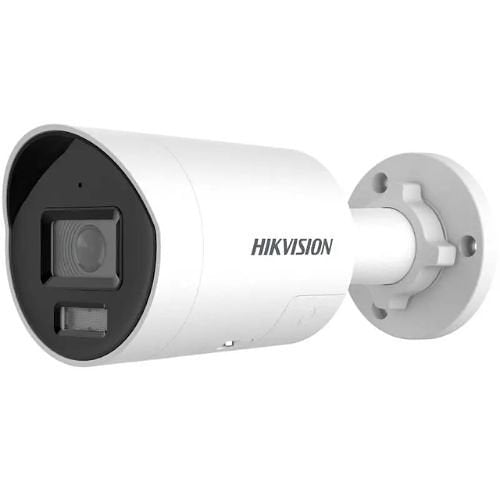

Hikvision DS-2CD3046G2-IS(6mm)(H) bullet camera, 4MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Hikvision DS-2CD3046G2-IS(6mm)(H) is a bullet camera from the 3 Series with AcuSense & Heop range.
Empowered by deep learning algorithms, Hikvision AcuSense technology delivers human and vehicle target classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, greatly improving alarm efficiency and effectiveness. Supports Hikvision Embedded Open Platform (HEOP) and integration of third-party applications
Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for resource sharing
High-quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong backlight thanks to 120 dB true WDR technology
Focus on human and vehicle target classification based on deep learning
Water and dust resistant (IP67)
Key features
- For remote surveillance needs, this network camera is best suited
- Up to 2688 x 1520 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 6 mm maximum focal length for dependable identification distances with better coverage
- f/1.4 maximum aperture for reliable, detailed, and sharp output with added dependability
- Up to 40 m of night vision
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
- DC power source type for your network camera provides optimal performance with maximum usability
- Back Light Compensation (BLC) feature for maximum efficiency and convenience
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Storage
Miscellaneous
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CD3046G2-IS(6mm)(H) |
| Product Series | 3 Series with AcuSense & Heop |
| Product Type | Bullet Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M12 (S-Mount) |
| Lens Type | Fixed |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6.00mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Video Resolution | 1280 x 720 |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 40.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2688 x 1520 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 95% |
Exposure
| Longest Shutter Speed | 1/3 Second |
|---|---|
| Shortest Shutter Speed | 1/100000 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 6mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 6.00mm |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Water Resistant |
| Form Factor | Mini Bullet |
| Weight | 830.00g |
Power description
| Input Voltage | 12V DC |
|---|
Storage
| Storage Type | SD Card |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | 3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Defog, Gain Control, Highlight Compensation (HLC), Human Detection, Mirror, Motion Detection, Noise Detection, Tampering Alarm, Vehicle Detection, White Balance |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Weight | 830.00g |
Hikvision DS-2CD3046G2-IS(6mm)(H) bullet camera, 4MP
