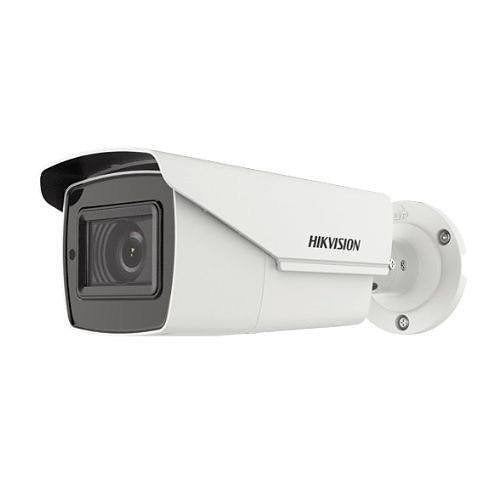

Hikvision DS-2CE19H0T-IT3ZE(2.7-13.5mm)(C) bullet camera, 5MP
About this product
Hikvision DS-2CE19H0T-IT3ZE(2.7-13.5mm)(C) is a bullet camera from the Value Series range.
Power over Coaxial (PoC) basically means that power for the camera is supplied by the DVR via coaxial video cable (RG59 or similar), this removes the requirement for separate cables and power supplies which would otherwise be needed to power your cameras. PoC can be used on cable runs up to 200 metres and is available in 4,8 and 16 channel DVRs (models ending /P), a full complement of TVI PoC cameras are also available (models ending E) which together offer a cost effective and time saving solution to your TVI installations.
Key features
- 5MP high performance CMOS
- Adopts HD-TVI technology
- 2.7 - 13.5mm motorized varifocal lens
- True day/night
- OSD menu
- Smart IR
- Up to 40m IR distance
- IP67 weatherproof
- Up the Coax telemetry
- Digital wide dynamic range
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Lens
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | DS-2CE19H0T-IT3ZE(2.7-13.5mm)(C) |
| Product Series | Value Series |
| Product Type | Bullet Cameras |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Mount Type | M14 |
| Lens Type | Motorized Zoom |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.70mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 5.0x |
| Video Resolution | 2560 x 1440 |
| Video Signal Format | NTSC, PAL |
| Wide Dynamic Range | Yes |
Camera
| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 40.00m |
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 2560 x 1944 |
|---|
Environmental conditions
| Maximum Operating Temperature | 60°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1/25 Second |
|---|---|
| Shortest Shutter Speed | 1/50000 Second |
Lens
| Focal Length | 2.7-13.5mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 13.50mm |
Physical characteristics
| Colour | White |
|---|---|
| Durability | Dust Resistant, Water Resistant, Weatherproof |
| Form Factor | Bullet |
| Weight | 677.00g |
Power description
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power |
Product information
| Mount Type | Corner Mount, Junction Box Mount, Pole Mount, Wall Mount |
|---|
Attributes
| Features | 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC) |
|---|---|
| Input Voltage | 12V DC |
| Power Source | DC Power |
| Weight | 677.00g |
