Hikvision iDS-2CD5T47G2/V-XHSY(2.8mm) bullet camera, 4MP
Free Delivery
Save £52.00
About this product
Please note: this is a non-returnable item (excluding faulty goods)

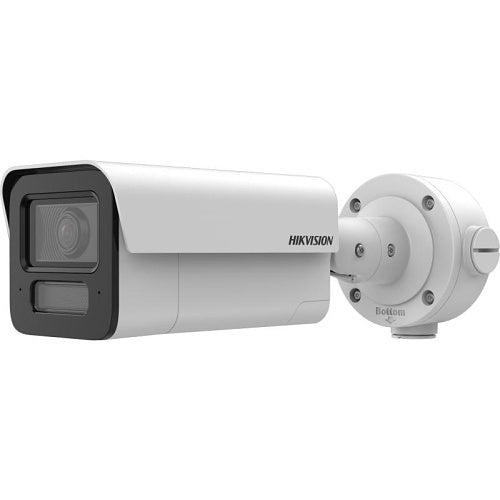

Hikvision iDS-2CD5T47G2/V-XHSY(2.8mm)@ is a bullet camera from the DeepinView range.
Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.
Key features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter2.0 technology
- Efficient H.265+ compression technology to save bandwidth and storage
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
- Built-in front window heater to ensure clear image under rainy or snowy weather
- Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
Technical Details
Specifications
Brand Name
Hikvision
Manufacturer Part Number
iDS-2CD5T47G2/V-XHSY(2.8mm)@
Product Series
DeepinView
Technical information
Aperture
f/1
Built-in Microphone
Yes
Effective resolution
4MP
Field of View
Diagonal, Horizontal, Vertical
Lens Type
Fixed
Maximum Aperture
f/1
Maximum Frame Rate
30fps
Motion Detection
Yes
Night Vision
Yes
Night Vision Type
Infrared (IR)
Power Consumption
16.8000W
Protocols
DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SFTP, SNMP, TLS/SSL, UDP, WebSocket
Video Formats
H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG
Wide Dynamic Range
Yes
Audio
Audio Encoding
AAC, G.711, G.722.1, G.726
Camera
Image Sensor Type
CMOS
Certifications
Ingress protection
IP67
Display & graphics
Image Sensor Size
1/1.8"
Environmental conditions
Maximum Operating Temperature
65°C
Minimum Operating Temperature
-40°C
Operating Humidity
95%
Operating Temperature (T-T)
-40-65°C
Storage Temperature (T-T)
-30-60°C
Exposure
Longest Shutter Speed
1s
Minimum Illumination
0.0014lux
Shortest Shutter Speed
1/100000s
Interfaces/ports
Network (RJ-45)
Yes
Lens
Focal Length
2.8mm
Lens Included
Yes
Maximum Focal Length
2.80mm
Physical characteristics
Durability
Corrosion Resistant, Dust Resistant, Vandal Resistant, Water Resistant
Form Factor
Bullet
Material
Aluminum Alloy
Power description
Input Voltage
12V DC
Maximum Power Consumption
16.80W
Power over Ethernet (PoE)
Yes
Power Source
DC Power, PoE (Power over Ethernet)
Storage
Storage Type
SD Card
Video
Maximum Resolution
2688 x 1520
Miscellaneous
Environmental status
Yes
Features
Guanlan
Attributes
Input Voltage
12V DC
Power Source
DC Power, PoE (Power over Ethernet)
Impact protection
IK10
Specifications
| Brand Name | Hikvision |
|---|---|
| Manufacturer Part Number | iDS-2CD5T47G2/V-XHSY(2.8mm)@ |
| Product Series | DeepinView |
Technical information
| Aperture | f/1 |
|---|---|
| Built-in Microphone | Yes |
| Effective resolution | 4MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30fps |
| Motion Detection | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Power Consumption | 16.8000W |
| Protocols | DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, RTP, RTSP, SFTP, SNMP, TLS/SSL, UDP, WebSocket |
| Video Formats | H.264 / AVC, H.264+, H.265 / HEVC, H.265+, MJPEG |
| Wide Dynamic Range | Yes |
Audio
| Audio Encoding | AAC, G.711, G.722.1, G.726 |
|---|
Camera
| Image Sensor Type | CMOS |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Image Sensor Size | 1/1.8" |
|---|
Environmental conditions
| Maximum Operating Temperature | 65°C |
|---|---|
| Minimum Operating Temperature | -40°C |
| Operating Humidity | 95% |
| Operating Temperature (T-T) | -40-65°C |
| Storage Temperature (T-T) | -30-60°C |
Exposure
| Longest Shutter Speed | 1s |
|---|---|
| Minimum Illumination | 0.0014lux |
| Shortest Shutter Speed | 1/100000s |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
Physical characteristics
| Durability | Corrosion Resistant, Dust Resistant, Vandal Resistant, Water Resistant |
|---|---|
| Form Factor | Bullet |
| Material | Aluminum Alloy |
Power description
| Input Voltage | 12V DC |
|---|---|
| Maximum Power Consumption | 16.80W |
| Power over Ethernet (PoE) | Yes |
| Power Source | DC Power, PoE (Power over Ethernet) |
Storage
| Storage Type | SD Card |
|---|
Video
| Maximum Resolution | 2688 x 1520 |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Guanlan |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Power Source | DC Power, PoE (Power over Ethernet) |
| Impact protection | IK10 |
