Hikvision DS-PK501LTM-HWE Bus LCD Keypad, Grade 2, 868MHz Keyfob Control
About this product

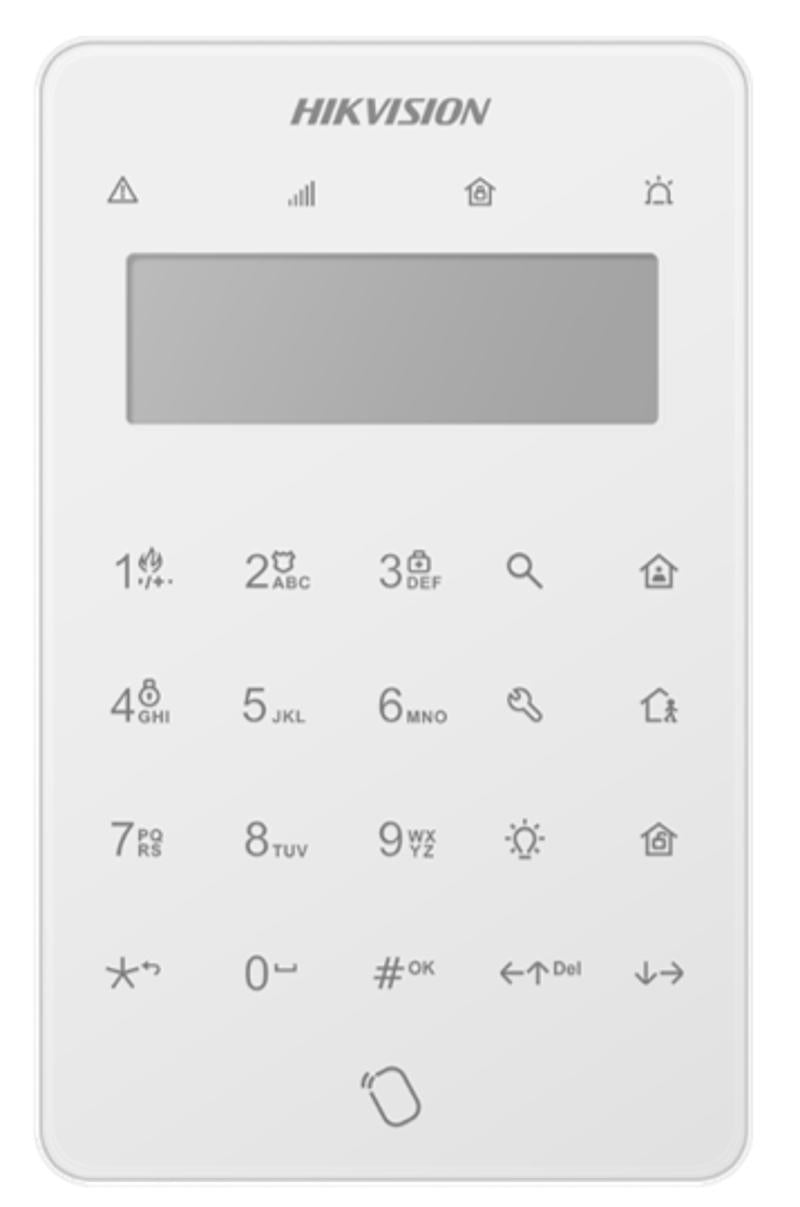

The Hikvision DS-PK501LTM-HWE is a bus LCD keypad with a mono LCD screen display, touch sensing buttons and Fire/Panic/Medical function keys, connected over a Half-Duplex RS-485 bus and powered by bus. It includes 2 inputs and 1 relay output on-board, supports a tag reader for M1 cards and keyfob control (868MHz), and is for indoor use only.
Key features
- Monochrome LCD display with touch sensing buttons
- Fire/Panic/Medical function keys
- 2 on-board inputs (zones) and 1 on-board relay output (1A 30VDC)
- Tag reader supporting M1 cards
- Keyfob control at 868.0-868.6 MHz, compatible with DS-PKF1-WE / DS-PKF1-WE(B)
- Half-Duplex RS-485 bus, powered by bus at 12 VDC nominal (9-16 VDC)
- Front and rear tamper-proof
- EN 50131 Security Grade 2, Environmental Class II
Frequently asked questions
How does the DS-PK501LTM-HWE connect and get power?
It runs on a Half-Duplex RS-485 bus over 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²) and is powered by bus at 12 VDC nominal (9-16 VDC).
How much current does it draw?
Quiescent current is 40 mA @12VDC and max. current is 200 mA @12VDC.
Which keyfobs work with it?
It is compatible with DS-PKF1-WE / DS-PKF1-WE(B) keyfobs on 868.0-868.6 MHz, and supports 64 wireless keyfobs.
How do users authenticate at the keypad?
With an M1 card tag, a PIN of 4~6 digits, or a compatible keyfob (DS-PKF1-WE / DS-PKF1-WE(B)).
What security grade is it?
EN 50131 Security Grade 2, Environmental Class II, and Ancillary Control Equipment (ACE) Type B.
Can it be installed outdoors?
No. Its operating temperature is -10°C to 50°C (14°F to 122°F), indoor use only, and it is wall mounted.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-PK501LTM-HWE |
| Manufacturer Part Number (MPN) | DS-PK501LTM-HWE |
| Max. Zones | 2 |
| On-board zones | 2 |
| Max. outputs | 1 |
| On-board relay outputs | 1 |
| Wireless keyfob | 64 |
| Display | Monochrome LCD |
| Indication | 1 buzzer and 4 status LED indicators including Fault(orange), Signal(green), Arm(blue)/Disarm(green), Alarm(red) |
| Key button | Touch Sensing Buttons, including 0~9, *, # and functional keys (e.g. Query, Engineering, Output, Away Arm, Stay Arm, Disarm, Left, Right) |
| Tag | Support M1 Card |
| Keyfob | Compatible with DS-PKF1-WE / DS-PKF1-WE(B) |
| PIN | 4~6 digits |
| Bus-extender | No |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²) |
| Frequency | 868.0-868.6 MHz |
| Wireless technology | Tri-X, 2-way encrypted wireless, radio frequency hopping |
| Transmission modulation | 2GFSK |
| Transmission range | 900 m (open area) |
| Input voltage | 12 VDC nominal (9-16 VDC), powered by bus |
| Quiescent current | 40 mA @12VDC |
| Max. current | 200 mA @12VDC |
| Relay output | 1A 30VDC |
| Operating temperature | -10°C to 50°C (14°F to 122°F), indoor use only |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative humidity | 10% ~ 90% non-condensing |
| Dimension (W × H × D) | 175 × 110 × 27 mm |
| Weight | 301 g |
| Tamper-proof | Front and Rear |
| Installation method | Wall mount |
| Electrical conformity | CE, CB |
| EN 50131 | Security Grade 2, Environmental Class II |
| Ancillary Control Equipment (ACE) | Type B |
