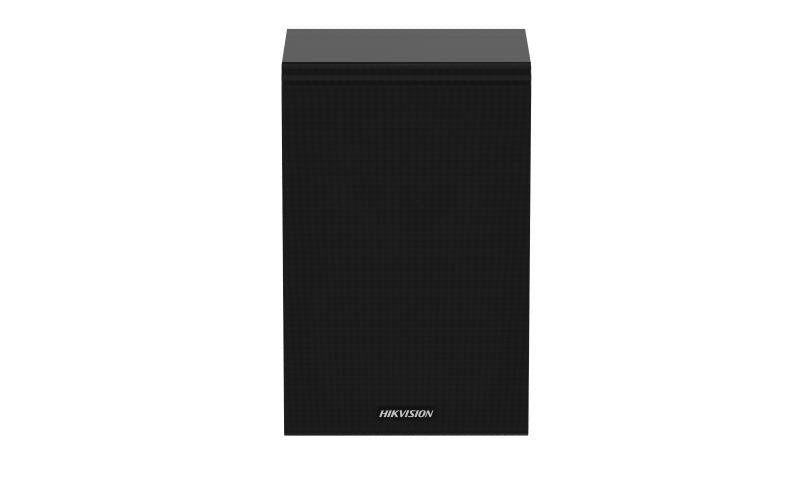

Hikvision DS-QAZ0110G1-S Cabinet Secondary Speaker, 10W, 8 Ω
About this product
The Hikvision DS-QAZ0110G1-S is a 10 W cabinet secondary speaker that connects to a primary speaker to help boost the volume of sound. It has a wooden cabinet, an 8 Ω fixed resistance input and a frequency response of 100 Hz to 20 kHz.
Key features
- 10 W rated power
- Full frequency 5.25′′ × 1 speaker unit
- 8 Ω impedance
- Sensitivity (1 m, 1 W): 90 dB
- Max. acoustic pressure of 98 dBSPL
- Frequency response of 100 Hz to 20 kHz
- Coverage angle: horizontal 105°, vertical 103°
- Wooden cabinet in black
Frequently asked questions
What does the DS-QAZ0110G1-S connect to?
It is a secondary speaker that connects to the primary speaker to help boost the volume of sound.
What is the power rating and impedance?
The speaker is rated at 10 W with an impedance of 8 Ω.
What audio input does it have?
One fixed resistance input at 8 Ω (Fixed resistance input × 1，8 Ω).
What area does the speaker cover?
Its coverage angle is 105° horizontal and 103° vertical, with sound projected in all directions.
What operating conditions is it rated for?
An operating temperature of -10 °C to 50 °C and operating humidity of ＜90% (no condensation).
What is in the box?
The speaker (device × 1), a screw pack × 1, an installation sticker × 1 and the regulatory compliance and safety information × 1.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-QAZ0110G1-S |
| Manufacturer Part Number (MPN) | DS-QAZ0110G1-S |
| Rated Power | 10 W |
| Speaker Unit | Full frequency 5.25′′ × 1 |
| Impedance | 8 Ω |
| Sensitivity (1 m, 1 W) | 90 dB |
| Direction | All directions |
| Max. Acoustic Pressure | 98 dBSPL |
| Frequency Response | 100 Hz to 20 kHz |
| Coverage Angle | Horizontal: 105°, Vertical: 103° |
| Audio In | Fixed resistance input × 1，8 Ω |
| Material | Wooden |
| Operating Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Dimension | 180.6 mm × 156 mm × 280 mm (7.11" × 6.14" × 11.02") |
| Weight | Approx. 1.9 kg (4.19 lb.) |
| Packing List | Device × 1, Screw pack × 1, Installation sticker × 1, Regulatory Compliance and Safety Information × 1 |
| Colour | Black |
