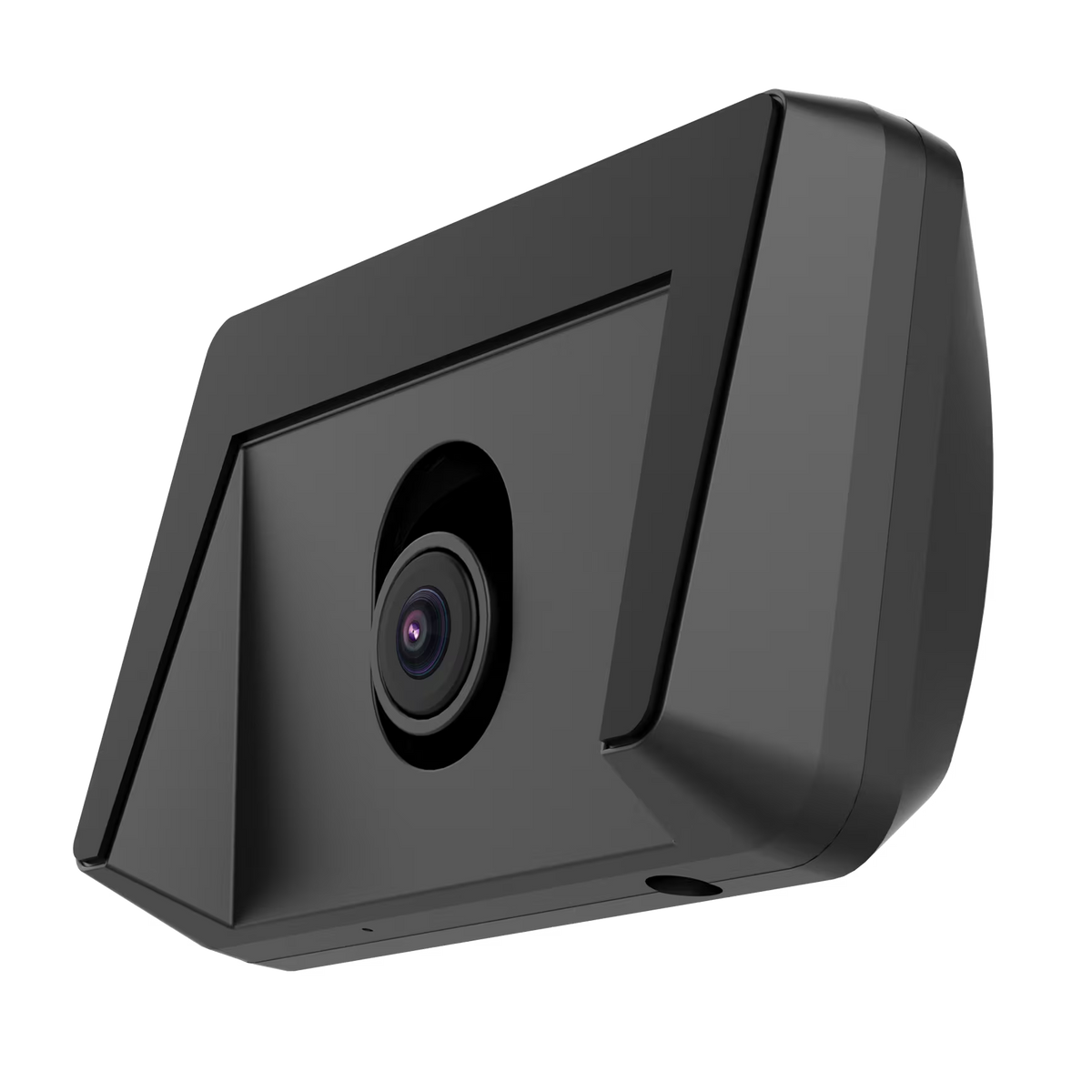

Hikvision AE-VC259T-S(2.1mm) Coach Front View Camera, 2.1mm, 1080P
About this product
The Hikvision AE-VC259T-S(2.1mm) is a coach front view camera with a fixed focal 2.1mm lens and a 1/2.8" progressive scan CMOS sensor, supporting HD coaxial output with the resolution 1080P. It has a shock-proof design with an aviation plug, a built-in mic and IP5X protection.
Key features
- 1/2.8" progressive scan CMOS sensor to prevent motion image aliasing, 1920×1080 resolution
- Fixed focal 2.1mm lens (M12 mount) with a horizontal 110°, vertical 59° and diagonal 130° field of view
- 1-way coaxial HD video output, conforming to HDTVI
- Built-in mic supported (built-in speaker not supported)
- WDR 96 dB, highlight compensation and automatic white balance
- Shock-proof design and aviation plug
- IP5X protection
- 9 to 16 V DC power supply, max. 1.2 W power consumption
Frequently asked questions
What power does the AE-VC259T-S need?
It runs on a 9 to 16 V DC power supply, with a power consumption of max. 1.2 W.
Does the camera pick up audio?
Yes, a built-in mic is supported. A built-in speaker is not supported.
What video signal does it output?
1-way coaxial HD video conforming to HDTVI, at 1080P@25fps by default (1080P@30fps customizable).
What is the field of view of the 2.1mm lens?
Horizontal: 110°, vertical: 59°, diagonal: 130°.
How is the camera connected?
Through an aviation plug (1 Vpp composite output) with the pin sequence 1: video, 2: audio, 3: power, 4: ground.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | AE-VC259T-S(2.1mm) |
| Manufacturer Part Number (MPN) | AE-VC259T-S(2.1mm) |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON) |
| Shutter Speed | 1/25 s to 1/30,000 s |
| Resolution | 1920×1080 |
| Day&Night | Color |
| FOV | Horizontal: 110° , vertical: 59° , diagonal: 130° |
| Lens Mount | M12 |
| Lens Type | Fixed focal lens, 2.1mm |
| Frame Rate | Default 1080P@25fps, 1080P@30fps customizable |
| Built-in Mic | Supported |
| Built-in Speaker | Not Supported |
| WDR | 96 dB |
| SNR | 42 dB |
| Video Output | 1-way coaxial HD, conforming to HDTVI |
| Interface Type | 1 Vpp Composite Output (aviation plug) |
| Pin sequence | 1: video, 2: audio, 3: power, 4: ground |
| Protection | IP5X |
| Power Supply | 9 to 16 V DC |
| Power Consumption | Max. 1.2 W |
| Camera Material | Black PC |
| Dimension | 89.5 mm × 63.3 mm × 39.8 mm (3.5" × 2.5" × 1.6") |
| Startup and Operating Conditions | -40 ° C to +75 ° C (-40 ° F to +167 ° F), 90% or less (non-condensing) |
| Weight | Approx. 99 g (0.2 lb.) |
| Certification | CB; CE-LVD, CE-EMC, CE-RoHS; E-Mark; FCC-SDoC |
