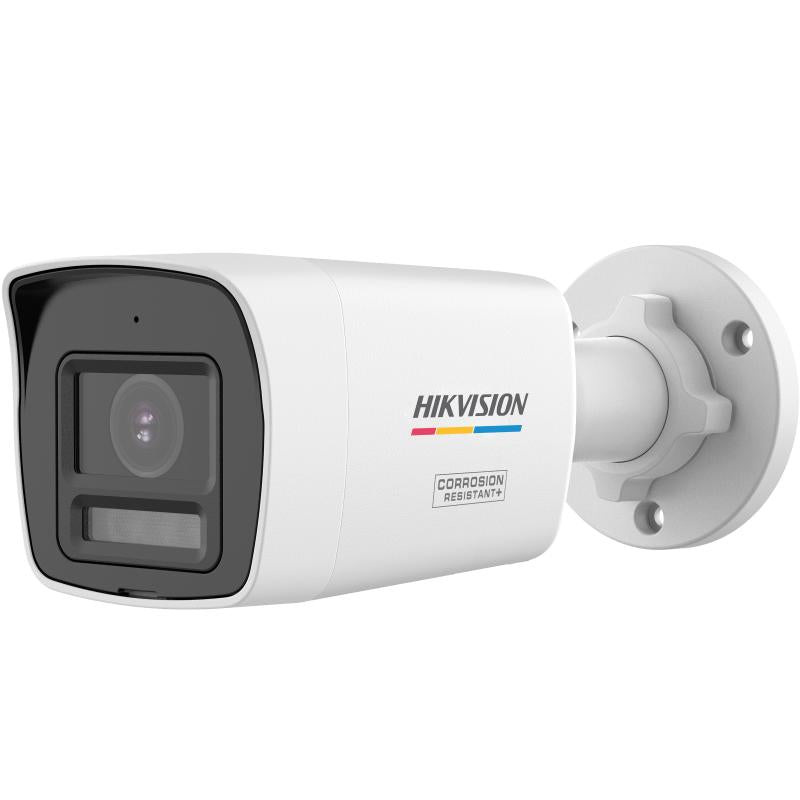

Hikvision DS-2CE10UF3T-LSYE(2.8mm) ColorVu Fixed Mini Bullet Camera, 4K, Smart Hybrid Light
About this product
The Hikvision DS-2CE10UF3T-LSYE(2.8mm) is a 4K Smart Hybrid Light ColorVu fixed mini bullet camera with a 2.8 mm lens and 1 HD analog output, for HD analogue CCTV systems. It offers 24/7 color imaging with an F1.0 aperture, up to 20 m white light and 30 m IR distance, and a built-in mic with audio over coaxial cable.
Key features
- 4K, 3840 × 2160 resolution from a 4K CMOS image sensor
- 2.8 mm fixed focal lens: horizontal FOV 105°, vertical FOV 60°, diagonal FOV 132°
- 24/7 color imaging with F1.0 aperture
- Smart Hybrid Light (Smart, IR, White Light): IR up to 30 m, white light up to 20 m
- 130 dB true WDR for clear imaging against strong back light, plus 3D DNR
- Built-in mic with audio over coaxial cable, pickup distance in a radius of up to 5 m
- Water and dust resistant (IP67), anti-corrosion design (NEMA 4X)
- 12 VDC±25% or PoC. at power, max. 6 W
Frequently asked questions
How is the DS-2CE10UF3T-LSYE(2.8mm) powered?
By 12 VDC±25% or PoC. at, max. 6 W. Hikvision recommends using one power adapter to supply the power for one camera.
Does it show colour at night?
It offers 24/7 color imaging with an F1.0 aperture and a day/night mode of Auto/Color; min. illumination is 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light.
How far do the IR and white light reach?
The supplement light range is IR: up to 30 m and White Light: up to 20 m, from a Smart, IR and White Light supplement light.
Does it record audio?
Yes. It has a built-in mic with audio over coaxial cable, with a pickup distance in a radius of up to 5 m.
What field of view does the 2.8 mm version have?
Horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 132°.
What protection does it have?
It is water and dust resistant (IP67) with NEMA 4X (NEMA 250-2018) anti-corrosion protection, and its operating condition is -40 °C to 60 °C, humidity 90% or less (non-condensing).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CE10UF3T-LSYE(2.8mm) |
| Manufacturer Part Number (MPN) | DS-2CE10UF3T-LSYE(2.8mm) |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Focal Length & FOV (2.8 mm) | 2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 132° |
| Lens Mount | M16 |
| Microphone | Pickup distance in a radius of up to 5 m; amount: 1 |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 30 m, White Light: Up to 20 m |
| Frame Rate | TVI: 4K @12.5/15 fps, 3K@25/20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
| Day/Night Mode | Auto/Color |
| WDR | 130 dB true WDR |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Enhancement | BLC, HLC, Global, WDR, Face AE, HLS |
| Noise Reduction | 3D DNR |
| White Balance | Auto, Manual |
| Privacy Mask | 4 programmable polygon privacy masks |
| Video Output | 1 HD analog output |
| Motion Detection | 4 programmable motion areas |
| Power | 12 VDC±25%/PoC. at, max. 6 W |
| Material | Metal |
| Dimension | 172.9mm × 69.1 mm × 66 mm (6.81" × 2.72" × 2.59") |
| Weight | Approx. 460 g (1.01 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Communication | HIKVISION-C |
| Protection | IP67 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
