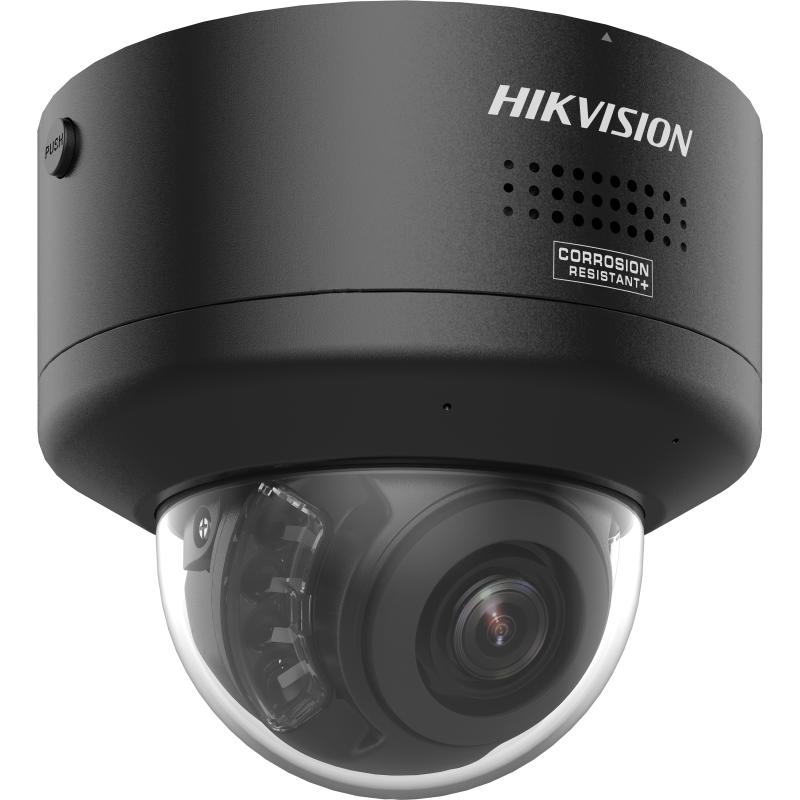

Hikvision DS-2CD2787G3-LIPTRZS2UY/SL(2812)OSTDBLK ColorVu Motorized PTRZ Varifocal Dome Camera, 8MP, 2.8-12mm
Free Delivery
Save £87.46
About this product
The Hikvision DS-2CD2787G3-LIPTRZS2UY/SL(2812)OSTDBLK is an 8 MP Smart Hybrid Light with ColorVu motorized PTRZ varifocal dome network camera, with a 2.8 to 12 mm motorized varifocal lens and motorized pan, tilt, rotate and zoom for easy installation and monitoring. This /SL model has an active white strobe light and audio alarm, a built-in arrayed dual-mic and speaker, and person and vehicle classification based on deep learning.
Key features
- Motorized pan, tilt, rotate and zoom: pan 0° to 350°, tilt 0° to 85°, rotate 0° to 350° by remote adjustment
- Varifocal motorized lens, 2.8 to 12 mm, F1.2
- 24/7 colorful imaging via ColorVu technology
- IR and white light supplement up to 40 m, with Smart Hybrid Light mode
- Active strobe light and audio alarm (white light on the /SL model)
- Built-in arrayed dual-microphone and built-in speaker
- 130 dB true WDR
- Water and dust resistant (IP67), vandal resistant (IK10), anti-corrosion design (NEMA 4X)
Frequently asked questions
How is the DS-2CD2787G3-LIPTRZS2UY/SL powered?
From 12 VDC ± 25%, 1.3 A, max. 15.6 W, or over PoE (IEEE 802.3at, Class 4, max. 18 W).
How far does its night illumination reach?
The supplement light (IR and white light) has a range of up to 40 m, with IR at 850 nm.
What colour is the strobe light on this model?
On the /SL model the flashing light is white light; the /SRB model uses red and blue light.
Does it record audio and have a speaker?
Yes. It has a built-in arrayed dual-microphone and 1 built-in speaker with max. sound pressure level of 97 dB at 10 cm.
Can it store recordings on the camera?
Yes. It has a built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 512 GB.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2CD2787G3-LIPTRZS2UY/SL(2812)OSTDBLK
Manufacturer Part Number (MPN)
DS-2CD2787G3-LIPTRZS2UY/SL(2812)OSTDBLK
Image Sensor
1/1.8" Progressive Scan CMOS
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Remote adjustment (Max. 1,000 cycles); Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350°
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Aperture
F1.2
Depth Of Field
1 m to ∞
DORI
Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m; Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
Supplement Light Type
IR, White Light
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video Compression
Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 24 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client
iVMS-4200,Hik-Connect,Hik-Central
SNR
≥ 52 dB
WDR
130 dB
Privacy Mask
4 programmable polygon privacy masks
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Speaker
1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB
Built-in Microphone
Arrayed dual-microphone
Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting; alarm triggering by specified target types (human and vehicle)
Face Capture
Yes
Linkage
notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
Flashing Light
/SL model: White Light
Power
12 VDC ± 25%, 1.3 A, max. 15.6 W, 2-core terminal block, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W
Material
Metal
Dimension
Ø155 mm × 140.4 mm (Ø6.10" × 5.53")
Weight
Approx. 1230 g (2.71 lb.)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Protection
IP67, IK10, NEMA 4X anti-corrosion design
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2787G3-LIPTRZS2UY/SL(2812)OSTDBLK |
| Manufacturer Part Number (MPN) | DS-2CD2787G3-LIPTRZS2UY/SL(2812)OSTDBLK |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Remote adjustment (Max. 1,000 cycles); Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° |
| Aperture | F1.2 |
| Depth Of Field | 1 m to ∞ |
| DORI | Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m; Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 24 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| SNR | ≥ 52 dB |
| WDR | 130 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Speaker | 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB |
| Built-in Microphone | Arrayed dual-microphone |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; alarm triggering by specified target types (human and vehicle) |
| Face Capture | Yes |
| Linkage | notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing |
| Flashing Light | /SL model: White Light |
| Power | 12 VDC ± 25%, 1.3 A, max. 15.6 W, 2-core terminal block, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Material | Metal |
| Dimension | Ø155 mm × 140.4 mm (Ø6.10" × 5.53") |
| Weight | Approx. 1230 g (2.71 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67, IK10, NEMA 4X anti-corrosion design |
