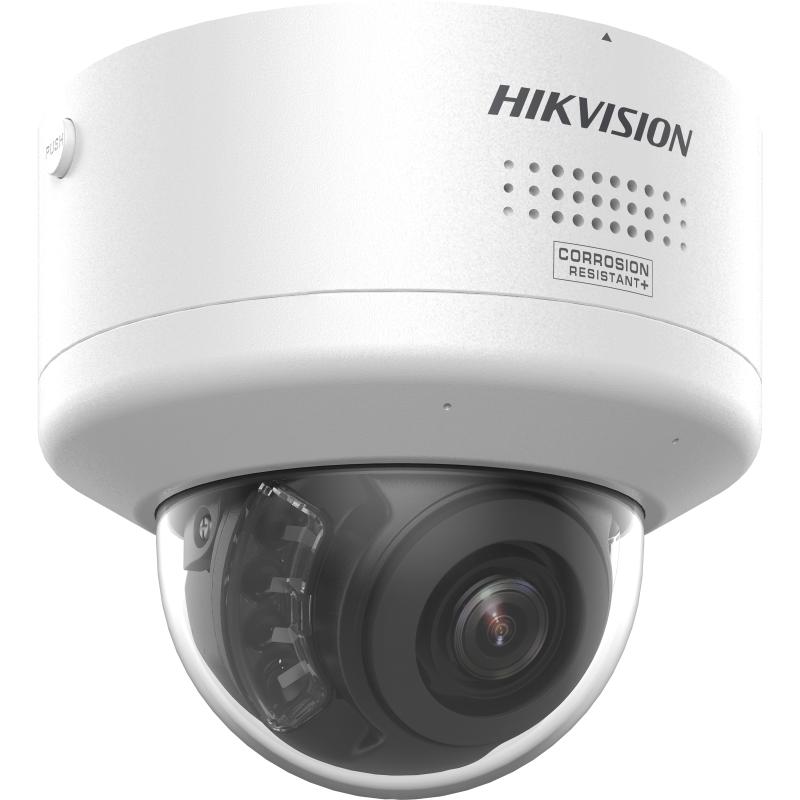

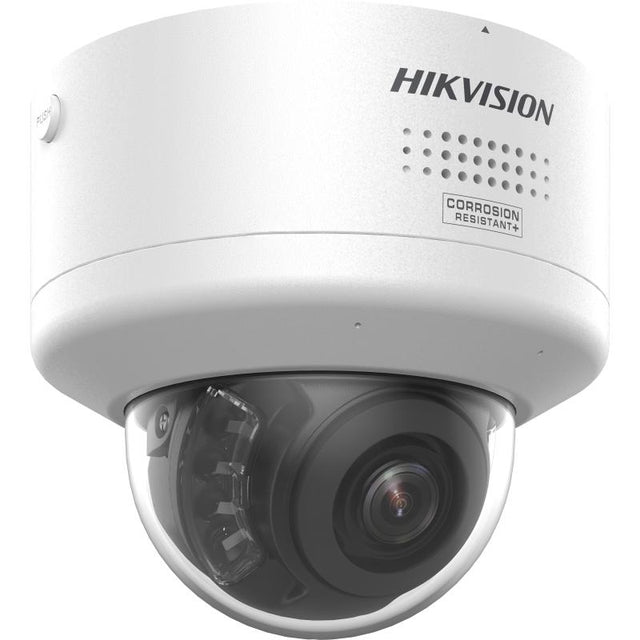

Hikvision DS-2CD2747G3-LIPTRZS2UY/SL(2.8-12)O-STD ColorVu Motorized PTRZ Varifocal Dome Network Camera, 4MP, 2.8-12mm
About this product
The Hikvision DS-2CD2747G3-LIPTRZS2UY/SL(2.8-12)O-STD is a 4 MP Smart Hybrid Light with ColorVu motorized PTRZ varifocal dome network camera for IP CCTV systems, with a 2.8 to 12 mm motorized lens and motorized pan, tilt, rotate and zoom for easy installation and monitoring. This /SL model has an active white strobe light and audio alarm, and gives 24/7 colorful imaging via ColorVu technology with IR light, white light and Smart Hybrid Light modes.
Key features
- 4 MP, maximum resolution 2688 × 1520 on a 1/1.8" Progressive Scan CMOS
- Motorized varifocal lens, 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°
- Motorized pan, tilt, rotate and zoom: pan 0° to 350°, tilt 0° to 85°, rotate 0° to 350° (remote adjustment, max. 1,000 cycles)
- 24/7 colorful imaging via ColorVu technology, with IR light, white light and Smart Hybrid Light modes
- Supplement light (IR, white light) range up to 40 m
- Active white strobe light and audio alarm on the /SL model
- Built-in arrayed dual-microphone and 1 built-in speaker
- Water and dust resistant (IP67), vandal resistant (IK10), anti-corrosion design (NEMA 4X)
Frequently asked questions
Can the DS-2CD2747G3-LIPTRZS2UY/SL(2.8-12)O-STD be powered by PoE?
Yes. It takes PoE to IEEE 802.3at, Class 4, max. 18 W, or 12 VDC ± 25%, 1.3 A, max. 15.6 W.
Can the view be adjusted after mounting?
Yes. Pan (0° to 350°), tilt (0° to 85°) and rotate (0° to 350°) use remote adjustment, rated for max. 1,000 cycles, and the motorized varifocal lens covers 2.8 to 12 mm.
What colour is the strobe light on this model?
On the /SL model the active strobe light is white light; it works with an audio alarm.
How does it see at night?
It supports IR light, white light and Smart Hybrid Light modes, with a supplement light range of up to 40 m, and ColorVu technology for 24/7 colorful imaging.
Is it suitable for outdoor use?
It is water and dust resistant (IP67), vandal resistant (IK10) and has an anti-corrosion design (NEMA 4X). Startup and operating conditions are -30 °C to 60 °C, humidity 95% or less (non-condensing).
Does it have audio?
Yes. It has a built-in arrayed dual-microphone and 1 built-in speaker (max. sound pressure level: 10 cm: 97 dB).
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2CD2747G3-LIPTRZS2UY/SL(2.8-12)O-STD |
| Manufacturer Part Number (MPN) | DS-2CD2747G3-LIPTRZS2UY/SL(2.8-12)O-STD |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light |
| Angle Adjustment | Remote adjustment (Max. 1,000 cycles); Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350° |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° |
| Aperture | F1.2 |
| DORI | Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m; Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.2 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Flashing Light | White Light (/SL model) |
| Main Stream (50 Hz) | 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Compression (main stream) | H.265/H.264/H.264+/H.265+ |
| Video Bit Rate | 32 Kbps to 24 Mbps |
| WDR | 130 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Built-In Speaker | 1 built-in speaker, max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB |
| Built-in Microphone | Arrayed dual-microphone |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting (alarm triggering by human and vehicle target types) |
| Face Capture | Yes |
| Power | 12 VDC ± 25%, 1.3 A, max. 15.6 W; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Material | Metal |
| Dimension | Ø155 mm × 140.4 mm (Ø6.10" × 5.53") |
| Weight | Approx. 1230 g (2.71 lb.) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
