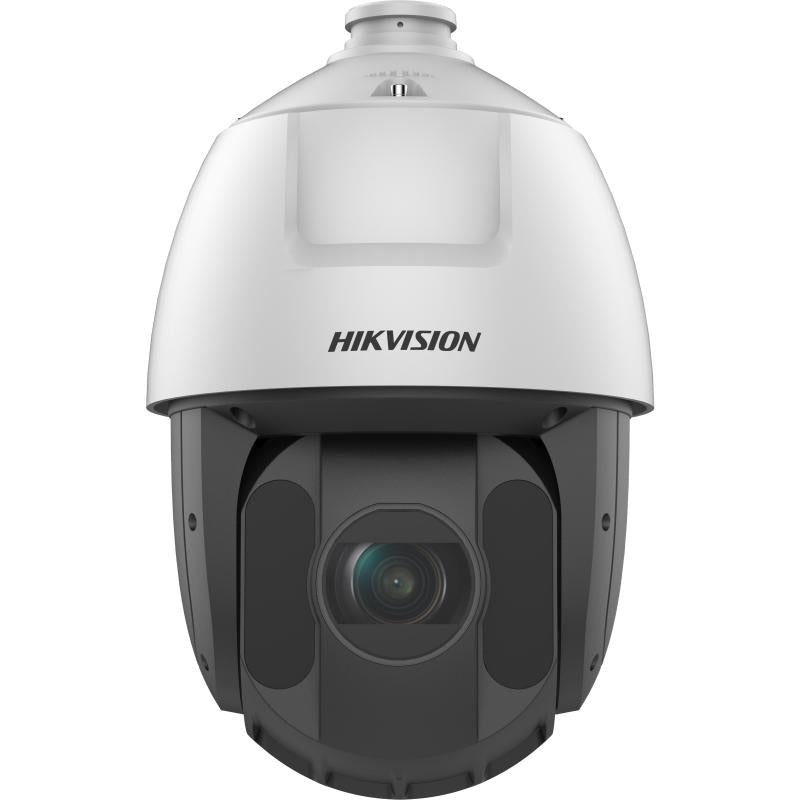

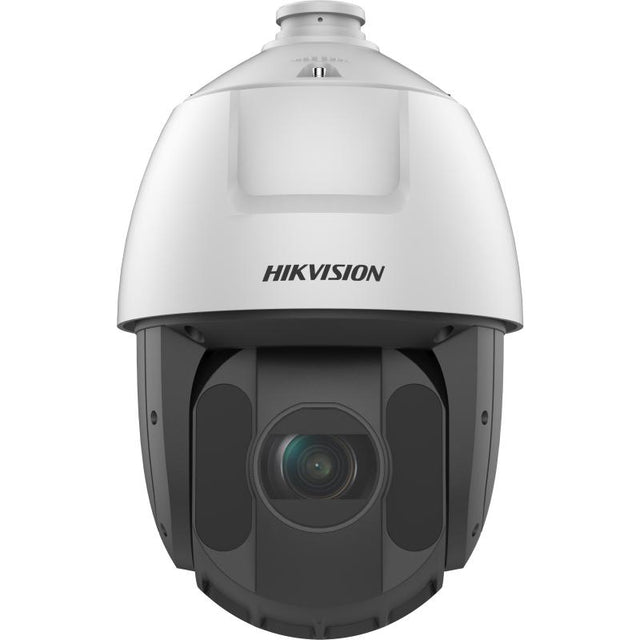

Hikvision DS-2DE5425IWG1-E(B) DarkFighter Acusense Network Speed Dome, 4MP, 25× Optical Zoom

What it does

The DS-2DE5425IWG1-E(B) is a 4 MP 25X network speed dome powered by DarkFighter with Acusense. A 1/2.8" Progressive Scan CMOS gives 4 MP resolution (2560 × 1440), and the 4.8 mm to 120 mm lens provides 25× optical zoom and 16× digital zoom.

IR supplement light reaches up to 150 m, and minimum illumination is Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR.

The camera focuses on human and vehicle targets classification based on deep learning, detects up to 5 faces simultaneously for face capture, and supports manual tracking and auto-tracking.

HIK AI-ISP handles noise reduction, and self-learning focus technology gives high focus speed. Image tools include WDR, HLC, BLC, 3D DNR, defog, regional exposure and regional focus.

Where it is used

The dome is rated IP67 (IEC 60529-2013) and IK10 (IEC 62262:2002), with TVS 6000 V lightning protection, surge protection and voltage transient protection. It operates from -30 °C to 65 °C at humidity of 90% or less (non-condensing).

Installation notes

Power is 36 VDC ± 25%, max. 24 W, or PoE (802.3at). It connects through 1 RJ45 10M/100M self-adaptive Ethernet port and has 2 alarm inputs, 1 alarm output, and 1 audio input (line in) and 1 output (line out).

It measures Ø 210 mm × 344.7 mm and weighs approx. 3.0 kg. A built-in memory card slot supports microSD/microSDHC/microSDXC card, up to 512 GB.

It works with iVMS-4200, HikCentral Pro and Hik-Connect, supports ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK and ISUP, and is compatible with the AcuSeek and AcuSearch technologies of NVR for combined use.

Day to day

Pan covers 360° and tilt -15° to 90° (auto flip), with pan speed configurable from 0.1° to 120°/s and up to 300 presets, 8 patrols (up to 32 presets for each patrol) and 4 pattern scans.

Smart events include line crossing detection, intrusion detection, region entrance and region exiting detection, unattended baggage detection, object removal detection and audio exception detection. It can also link to hikvision network speakers and network microphones to play audio.
