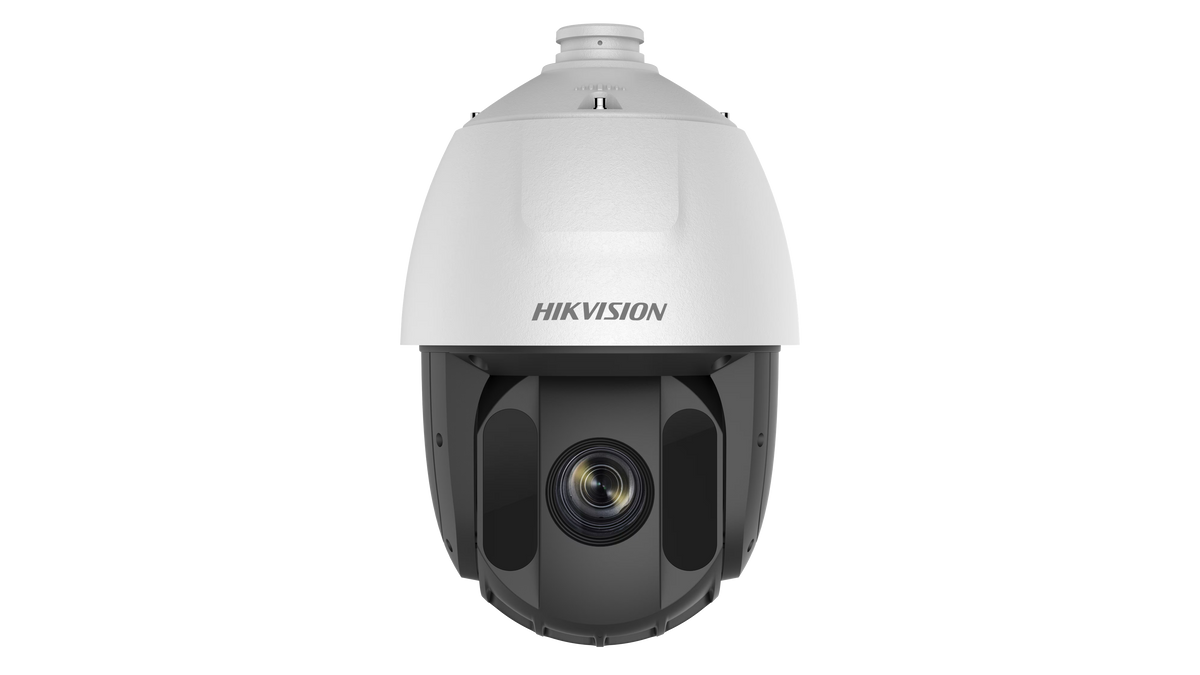

Hikvision DS-2AE5425ITG DarkFighter IR Analog Speed Dome, 4MP, 25x Optical Zoom
Free Delivery
Save £75.26
About this product
The Hikvision DS-2AE5425ITG is a 4 MP DarkFighter IR analog speed dome for analog CCTV systems, with 25x optical zoom for closer viewing of subjects in expansive areas and up to 150m IR range at night. It gives switchable TVI/AHD/CVI/CVBS video output and is water and dust resistant (IP66).
Key features
- 4 MP resolution (2560 x 1440) on a 1/2.8" Progressive Scan CMOS
- 25 × optical and 16 × digital zoom, 4.8 mm to 120 mm
- Up to 150m IR range
- ≥ 120 dB WDR
- 360° endless pan, -15° to 90° tilt (auto flip) and 256 presets
- Switchable TVI/AHD/CVI/CVBS video output on BNC
- 2 alarm inputs and 1 alarm output, RS-485 with Pelco-P and Pelco-D protocol
- IP66 (outdoor dome) with TVS 4,000 V lightning protection
Frequently asked questions
How far does the IR reach on the DS-2AE5425ITG?
Up to 150m IR range.
What zoom does it have?
25 × optical and 16 × digital zoom, from a 4.8 mm to 120 mm lens.
What video output does it give?
Switchable TVI/AHD/CVI/CVBS video output (NTSC or PAL composite, BNC).
What power supply does it need?
36V DC, max. 30 W (IR: 10 W).
Can it be controlled over RS-485?
Yes: half-duplex mode with self-adaptive HIKVISION, Pelco-P and Pelco-D protocol.
How weather resistant is it?
It is water and dust resistant (IP66) and operates from -30° C to 65° C.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2AE5425ITG
Manufacturer Part Number (MPN)
DS-2AE5425ITG
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
2560 x 1440
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR
Zoom
25 × optical, 16 × digital
Focal Length
4.8 mm to 120 mm, 25 × optical
Horizontal Field of View
55° to 2.4° (wide-tele)
Aperture
F1.6 to F3.5
Focus
Auto, semi-auto, manual
Zoom Speed
Approx. 3.6 s (optical, wide to tele)
Supplement Light Type
IR
Supplement Light Range
150 m
Movement Range (Pan)
360° endless
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
Pan manual speed: 0.1° to 120°/s; Pan preset speed: 120°/s
Tilt Speed
Tilt manual speed: 0.1° to 80°/s; Tilt preset speed: 80°/s
Presets
256
Patrol Scan
10 patrols, up to 32 presets for each patrol
Pattern Scan
5 patterns, record time over 10 minutes for each scan
Power-Off Memory
Yes
Frame Rate
50 Hz: 25 fps @(2560 × 1440); 60 Hz: 30 fps @(2560 × 1440)
Protocols
UTC protocol (or HIKVISION-C protocol in previous DVR)
WDR
≥ 120 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
8 programmable privacy masks
Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm
2 alarm inputs, 1 alarm output
RS-485
Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Power
36V DC, max. 30 W (IR: 10 W)
Dimension
Φ 208 mm × 343.9 mm
Weight
Approx. 3.3 kg
Operating Condition
-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Protection
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
Colour
White
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2AE5425ITG |
| Manufacturer Part Number (MPN) | DS-2AE5425ITG |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 x 1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| Zoom | 25 × optical, 16 × digital |
| Focal Length | 4.8 mm to 120 mm, 25 × optical |
| Horizontal Field of View | 55° to 2.4° (wide-tele) |
| Aperture | F1.6 to F3.5 |
| Focus | Auto, semi-auto, manual |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| Supplement Light Type | IR |
| Supplement Light Range | 150 m |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | Pan manual speed: 0.1° to 120°/s; Pan preset speed: 120°/s |
| Tilt Speed | Tilt manual speed: 0.1° to 80°/s; Tilt preset speed: 80°/s |
| Presets | 256 |
| Patrol Scan | 10 patrols, up to 32 presets for each patrol |
| Pattern Scan | 5 patterns, record time over 10 minutes for each scan |
| Power-Off Memory | Yes |
| Frame Rate | 50 Hz: 25 fps @(2560 × 1440); 60 Hz: 30 fps @(2560 × 1440) |
| Protocols | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| WDR | ≥ 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable privacy masks |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 | Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| Power | 36V DC, max. 30 W (IR: 10 W) |
| Dimension | Φ 208 mm × 343.9 mm |
| Weight | Approx. 3.3 kg |
| Operating Condition | -30° C to 65° C (-22° F to 149° F). Humidity 90% or less |
| Protection | IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection |
| Colour | White |
