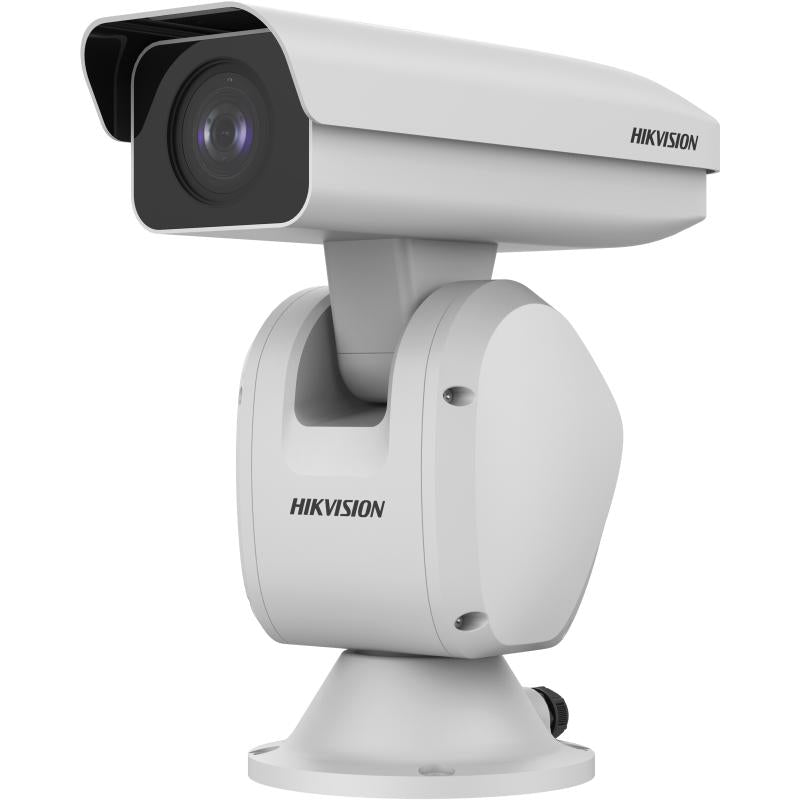

Hikvision DS-2DY7236IX-A(T5) DarkFighter IR Network Positioning System, 2MP, 36× Optical Zoom
Free Delivery
Save £439.62
About this product
The Hikvision DS-2DY7236IX-A(T5) is a 7-inch 2 MP 36X DarkFighter IR network positioning system for IP CCTV systems, combining 360° endless pan and 36 × optical zoom with up to 150 m IR distance. It is built for outdoor use from -40°C to 70°C with IP66 protection, and supports smart events, face capture and smart tracking.
Key features
- 2 MP, up to 1920 × 1080 @ 30 fps
- 36 × optical, 16 × digital zoom (4.6~165.6 mm lens)
- Up to 150 m IR distance
- 1/1.8" progressive scan CMOS, colour 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
- 360° endless pan, tilt from +40° to -90° (auto flip)
- 120 dB WDR with HLC, BLC, 3D DNR and defog
- H.265+/H.265 video compression
- IP66 with TVS 6000V lightning protection
Frequently asked questions
What is the IR range of the DS-2DY7236IX-A(T5)?
Up to 150 m IR distance, with 0 Lux minimum illumination with IR.
How much zoom does it have?
36 × optical and 16 × digital zoom, from a 4.6~165.6 mm lens.
How is it powered?
It runs on 24 VAC, with a maximum consumption of 55 W.
Can it record locally?
Yes. On-board storage supports microSD/microSDHC/microSDXC cards up to 256 GB.
Is it suitable for outdoor installation?
Yes. The operating condition is outdoor, -40°C to 70°C, and it is rated IP66 with TVS 6000V lightning protection.
Which optional mounting accessories suit it?
The DS-1693ZJ wall mount and DS-1678ZJ terminal box are optional accessories.
Technical Details
Specifications
Brand
Hikvision
Model
DS-2DY7236IX-A(T5)
Manufacturer Part Number (MPN)
DS-2DY7236IX-A(T5)
Image Sensor
1/1.8" progressive scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
Zoom
36 × optical, 16 × digital
Focal Length
4.6~165.6 mm, 36 × optical
FOV
Horizontal field of view: 55° to 2.0° (Wide-Tele)
Aperture
F1.6
Focus
Auto/Semi-automatic/Manual
Zoom Speed
approx. 4.8 s
Supplement Light Type
IR
Supplement Light Range
150 m
Movement Range (Pan)
360° endless
Movement Range (Tilt)
From +40° to -90° (auto flip)
Pan Speed
Configurable, from 0.1°/s to 100°/s; Preset speed: 100°/s
Tilt Speed
Configurable, from 0.1°/s to 50°/s; Preset Speed: 100°/s
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
DORI (Detect/Observe/Recognize/Identify)
2000 m / 793.7 m / 400 m / 200 m
WDR
120 dB WDR
Image Enhancement
HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third Stream: H.265/H.264/MJPEG
Simultaneous Live View
Up to 20 channels
Ethernet Interface
1 RJ45 10 M/100 M Ethernet
On-Board Storage
support microSD/microSDHC/microSDXC cards, up to 256 GB
Audio
1-ch audio input and 1-ch audio output
Alarm
7-ch alarm input and 2-ch alarm output
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power
24 VAC (Max. 55 W)
Dimension
Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86")
Weight
7.6 kg (16.76 lb.)
Operating Condition
Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
Protection
IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-2DY7236IX-A(T5) |
| Manufacturer Part Number (MPN) | DS-2DY7236IX-A(T5) |
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Zoom | 36 × optical, 16 × digital |
| Focal Length | 4.6~165.6 mm, 36 × optical |
| FOV | Horizontal field of view: 55° to 2.0° (Wide-Tele) |
| Aperture | F1.6 |
| Focus | Auto/Semi-automatic/Manual |
| Zoom Speed | approx. 4.8 s |
| Supplement Light Type | IR |
| Supplement Light Range | 150 m |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | From +40° to -90° (auto flip) |
| Pan Speed | Configurable, from 0.1°/s to 100°/s; Preset speed: 100°/s |
| Tilt Speed | Configurable, from 0.1°/s to 50°/s; Preset Speed: 100°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| DORI (Detect/Observe/Recognize/Identify) | 2000 m / 793.7 m / 400 m / 200 m |
| WDR | 120 dB WDR |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third Stream: H.265/H.264/MJPEG |
| Simultaneous Live View | Up to 20 channels |
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet |
| On-Board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Audio | 1-ch audio input and 1-ch audio output |
| Alarm | 7-ch alarm input and 2-ch alarm output |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power | 24 VAC (Max. 55 W) |
| Dimension | Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86") |
| Weight | 7.6 kg (16.76 lb.) |
| Operating Condition | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90% |
| Protection | IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
